1000L Vertical Air Receiver 10 Bar with Kit

$4,982.00
RRP $5,200.00
SAVE $218.00 (4%)


1000L Vertical Air Receiver 10 Bar max W.P.
Includes receiver kit

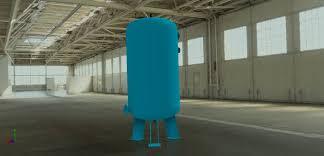

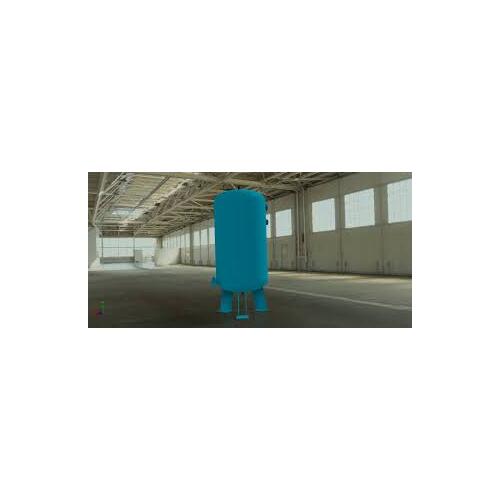

SCS 1000 litre Vertical Receiver Tank

The SCS 1000 litre Vertical Receiver Tank is the perfect compressed air storage system.

Features:

  • Manufactured to AS1210-3 and supplied with a manufacture’s data report.
  • Supplied as standard with safety valve, pressure gauge and manual condensate drain.
  • Finished in industrial grade enamel.
  • Custom build and horizontal air receivers available on request.
  • Capacity – 1000L
  • Working Pressure – 1100kpa
  • Height – 2460mm

Vertical Compressed Air Storage Tank is part of our range of vertical air receivers for compressed air storage. Custom built and horizontal air receivers are also available.

Same receiver as Pilot 1000L Receiver

Features:

  • 1000L capacity
  • 1100 kpa
  • 2460mm height

Finished in industrial grade enamel,Vertical Compressed Air Storage Tank is manufactured to AS1210-3 and provided with the manufacturer’s data report. Supplied as standard with safety valve, pressure gauge and manual condensate drain, you can rest easy with this compressed air storage solution.

Specifications:

Model Capacity Working Pressure A B C D E F G H
(L) (KPA) (mm) (mm) (mm) (mm) Inches(BSP) Inches(BSP) Inches(BSP) Inches(BSP)
3101000 1000 1100 2460 800 720 1170 1½” 2″ ½” 2″
  • WorkCover NSW Plant Design Registered
  • Technical data conforms to +/- 5%. SCS reserves the right to modification without notice for design and technical improvements.
  • For over 40 years Pilot Air Compressors has been meeting the needs of industry. Ask us about your requirements.

(1000LVERTICALAIRRECEIVER1)

SKU 1000LVERTICALAIRRECEIVER1
Brand SCS
