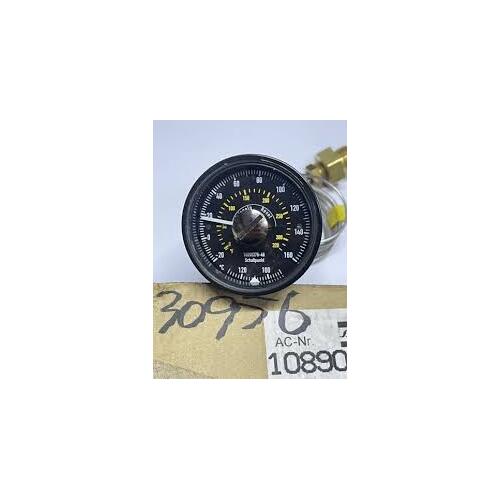

1089 0376 45 Temp Switch Atlas Copco

1089-0376-45 Temp Switch Atlas Copco

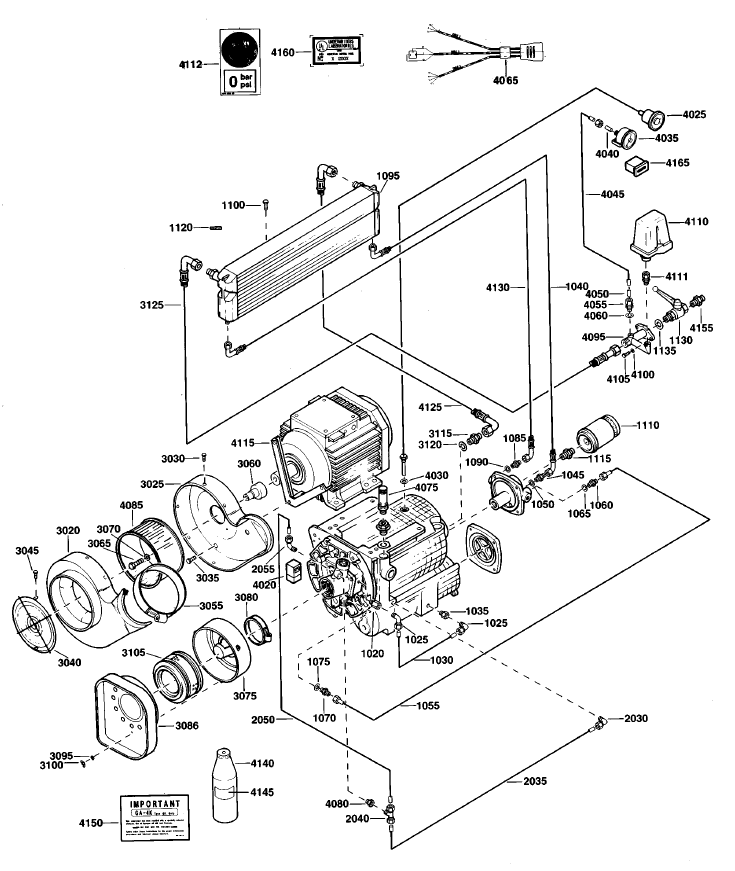

1020 1513 0330 00 1 Adapter
1025 0581 1200 32 2 Coupling
1030 1513 0263 00 1 Pipe
1035 1513 0219 00 1 Adaptor
1040 1513 0489 02 1 Hose assembly
1045 1079 5840 03 1 Nipple
1050 0653 9078 00 1 Flat gasket
1055 1513 0419 00 1 Pipe
1060 1079 5840 03 1 Nipple
1065 0653 9078 00 1 Flat gasket
1070 1079 5840 12 1 Nipple
1075 0653 9098 00 1 Flat gasket
1085 1079 5840 03 1 Nipple
1090 0653 9078 00 1 Flat gasket
1095 1513 0461 00 1 Combi cooler
1100 1619 2766 00 2 Bolt
1110 1513 0337 00 1 Oil filter K1
1115 1513 0161 00 1 Nipple
1120 1619 5188 00 AR Seal
1130 0852 0010 21 1 Ball valve
1135 0661 1033 00 1 Sealing washer
2030 0581 1200 16 1 Coupling (elbow)
2035 0070 6002 04 AR Plastic tube
2040 0581 2000 13 1 Coupling (tee)
2050 0070 6002 04 AR Plastic tube
2055 0581 1200 16 1 Coupling (elbow)
3020 1513 0374 01 1 Fan cowl
3025 1513 0375 01 1 Fan cowl
3030 0226 3256 00 8 Tapping screw
3035 1619 5898 01 3 Bolt
3040 1513 0373 00 1 Fan guard
3045 0226 3256 00 2 Tapping screw
3055 0347 6100 15 2 Hose clip
3060 1513 0370 00 1 Adaptor
3065 0147 1413 03 1 Hexagon bolt
3070 0301 2358 00 1 Washer
3075 1513 0386 00 1 Housing
3080 0347 6114 00 1 Hose clip
3086 1513 0460 00 1 Cover
3095 0301 2315 00 3 Washer
3100 0296 1119 06 3 Wing nut
3105 1503 0190 00 1 Filter K1
3115 1079 5840 15 1 Nipple
3120 0653 9098 00 1 Flat gasket
3125 0574 9911 09 1 Hose assembly
4020 1 Solenoid valve
1089 0428 23 220-230V/50Hz
1089 0428 24 220-230V/60Hz
1089 0428 27 110V/60Hz C
4025 1089 0376 45 1 Temp. switch
4030 0653 1100 00 1 Flat gasket
4035 1 Gauge
1619 7264 00 50Hz
1310 0154 00 60Hz

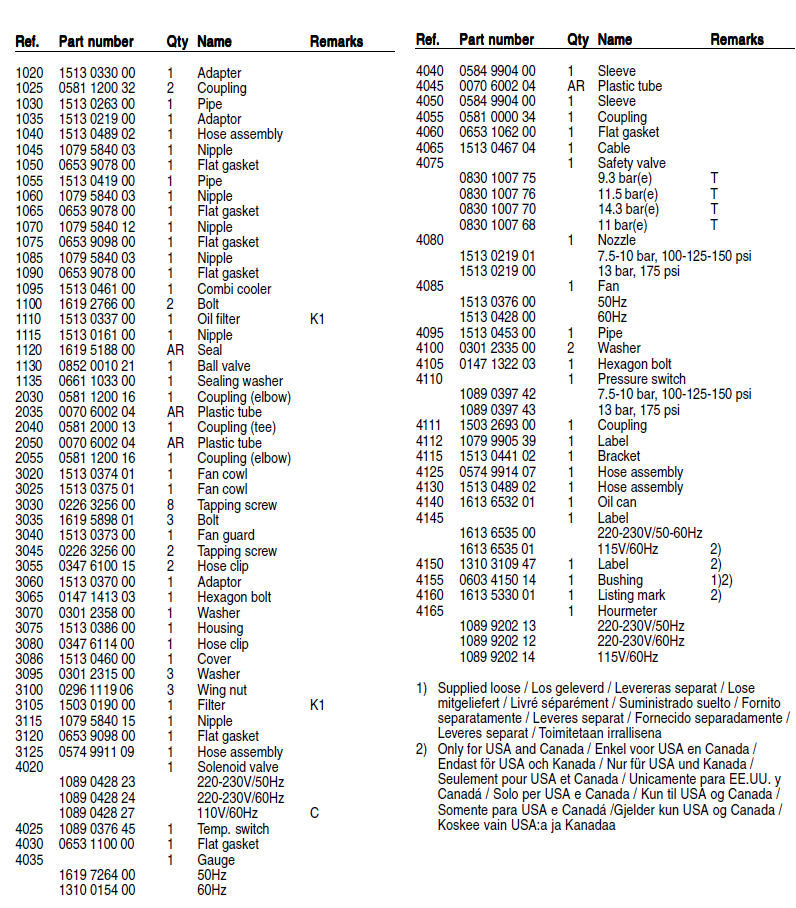

Ref. Part number Qty Name Remarks
4040 0584 9904 00 1 Sleeve
4045 0070 6002 04 AR Plastic tube
4050 0584 9904 00 1 Sleeve
4055 0581 0000 34 1 Coupling
4060 0653 1062 00 1 Flat gasket
4065 1513 0467 04 1 Cable
4075 1 Safety valve
0830 1007 75 9.3 bar(e) T
0830 1007 76 11.5 bar(e) T
0830 1007 70 14.3 bar(e) T
0830 1007 68 11 bar(e) T
4080 1 Nozzle
1513 0219 01 7.5-10 bar, 100-125-150 psi
1513 0219 00 13 bar, 175 psi
4085 1 Fan
1513 0376 00 50Hz
1513 0428 00 60Hz
4095 1513 0453 00 1 Pipe
4100 0301 2335 00 2 Washer
4105 0147 1322 03 1 Hexagon bolt
4110 1 Pressure switch
1089 0397 42 7.5-10 bar, 100-125-150 psi
1089 0397 43 13 bar, 175 psi
4111 1503 2693 00 1 Coupling
4112 1079 9905 39 1 Label
4115 1513 0441 02 1 Bracket
4125 0574 9914 07 1 Hose assembly
4130 1513 0489 02 1 Hose assembly
4140 1613 6532 01 1 Oil can
4145 1 Label
1613 6535 00 220-230V/50-60Hz
1613 6535 01 115V/60Hz 2)
4150 1310 3109 47 1 Label 2)
4155 0603 4150 14 1 Bushing 1)2)
4160 1613 5330 01 1 Listing mark 2)
4165 1 Hourmeter
1089 9202 13 220-230V/50Hz
1089 9202 12 220-230V/60Hz
1089 9202 14 115V/60Hz
1) Supplied loose / Los geleverd / Levereras separat
