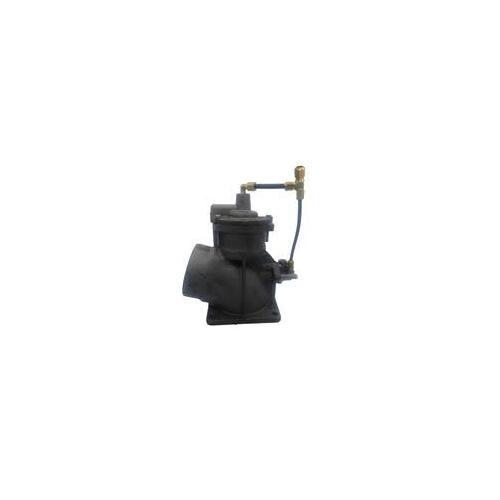

1604 0306 84 Inlet Valve / Loading Head Atlas Copco

$4,681.00
RRP $6,574.00
SAVE $1,893.00 (29%)


1604030684 Inlet Valve / Loading Head Atlas Copco

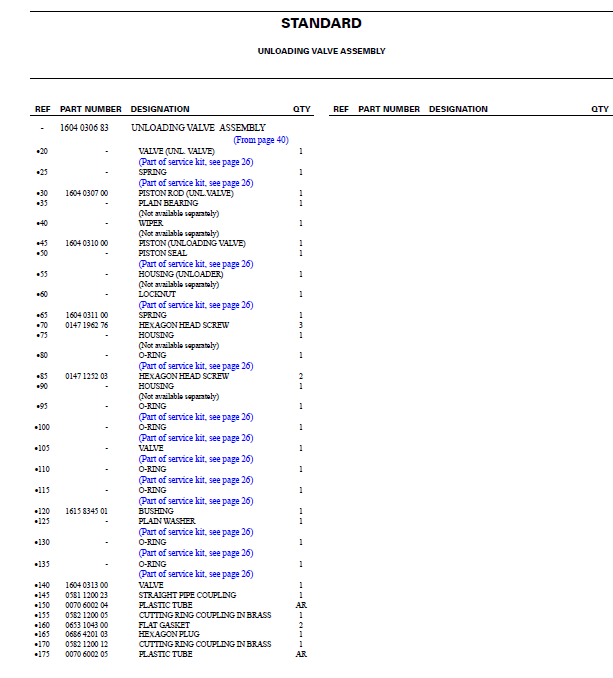

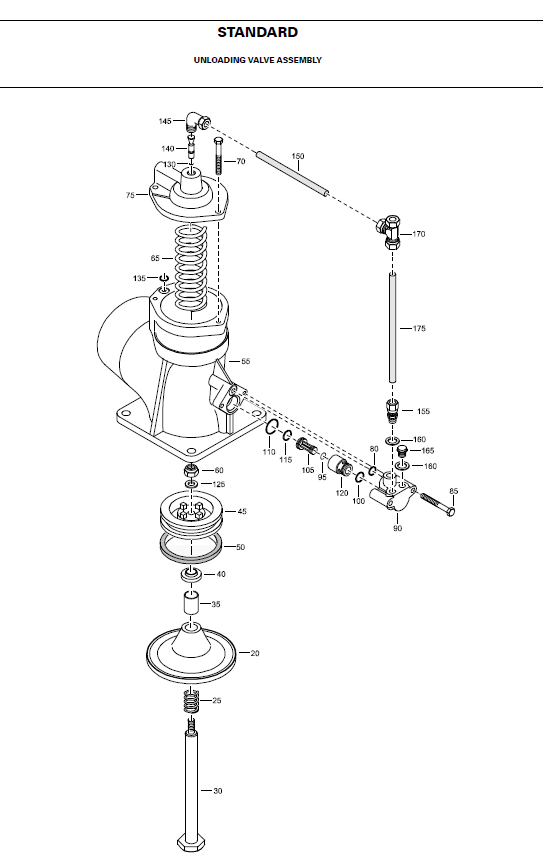

- 1604 0306 83 UNLOADING VALVE ASSEMBLY
(From page 40)
•20 - VALVE (UNL. VALVE) 1
(Part of service kit, see page 26)
•25 - SPRING 1
(Part of service kit, see page 26)
•30 1604 0307 00 PISTON ROD (UNL.VALVE) 1
•35 - PLAIN BEARING 1
(Not available separately)
•40 - WIPER 1
(Not available separately)
•45 1604 0310 00 PISTON (UNLOADING VALVE) 1
•50 - PISTON SEAL 1
(Part of service kit, see page 26)
•55 - HOUSING (UNLOADER) 1
(Not available separately)
•60 - LOCKNUT 1
(Part of service kit, see page 26)
•65 1604 0311 00 SPRING 1
•70 0147 1962 76 HEXAGON HEAD SCREW 3
•75 - HOUSING 1
(Not available separately)
•80 - O-RING 1
(Part of service kit, see page 26)
•85 0147 1252 03 HEXAGON HEAD SCREW 2
•90 - HOUSING 1
(Not available separately)
•95 - O-RING 1
(Part of service kit, see page 26)
•100 - O-RING 1
(Part of service kit, see page 26)
•105 - VALVE 1
(Part of service kit, see page 26)
•110 - O-RING 1
(Part of service kit, see page 26)
•115 - O-RING 1
(Part of service kit, see page 26)
•120 1615 8345 01 BUSHING 1
•125 - PLAIN WASHER 1
(Part of service kit, see page 26)
•130 - O-RING 1
(Part of service kit, see page 26)
•135 - O-RING 1
(Part of service kit, see page 26)
•140 1604 0313 00 VALVE 1
•145 0581 1200 23 STRAIGHT PIPE COUPLING 1
•150 0070 6002 04 PLASTIC TUBE AR
•155 0582 1200 05 CUTTING RING COUPLING IN BRASS 1
•160 0653 1043 00 FLAT GASKET 2
•165 0686 4201 03 HEXAGON PLUG 1
•170 0582 1200 12 CUTTING RING COUPLING IN BRASS 1
•175 0070 6002 05 PLASTIC TUBE AR

(1604030684)

SKU 1604030684
Brand Atlas Copco
Shipping Weight 5.0000kg
