1613 5718 10 - ZT Shaft Valve Atlas Copco
1613571810 ZT Shaft Valve Atlas Copco
.png)
.png)

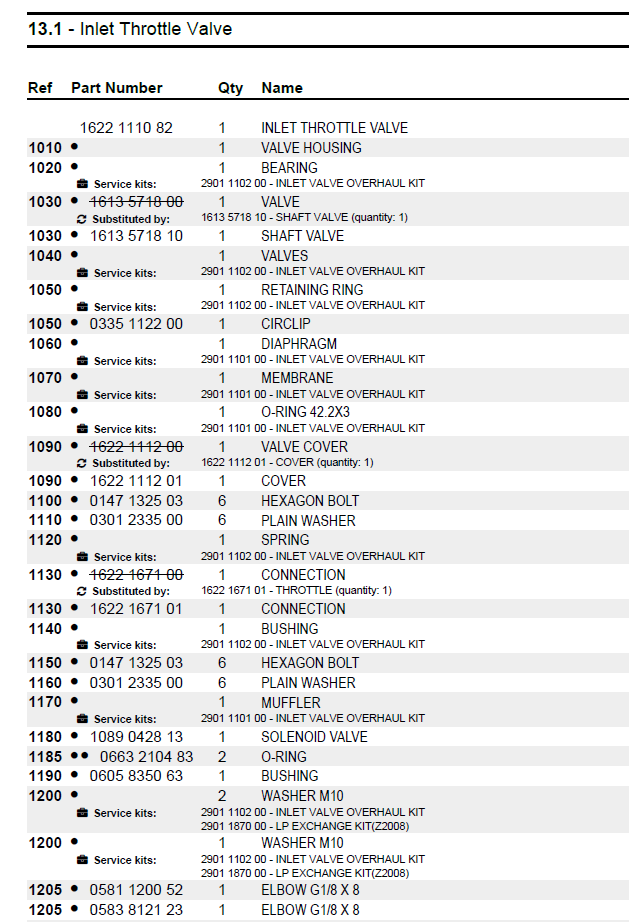

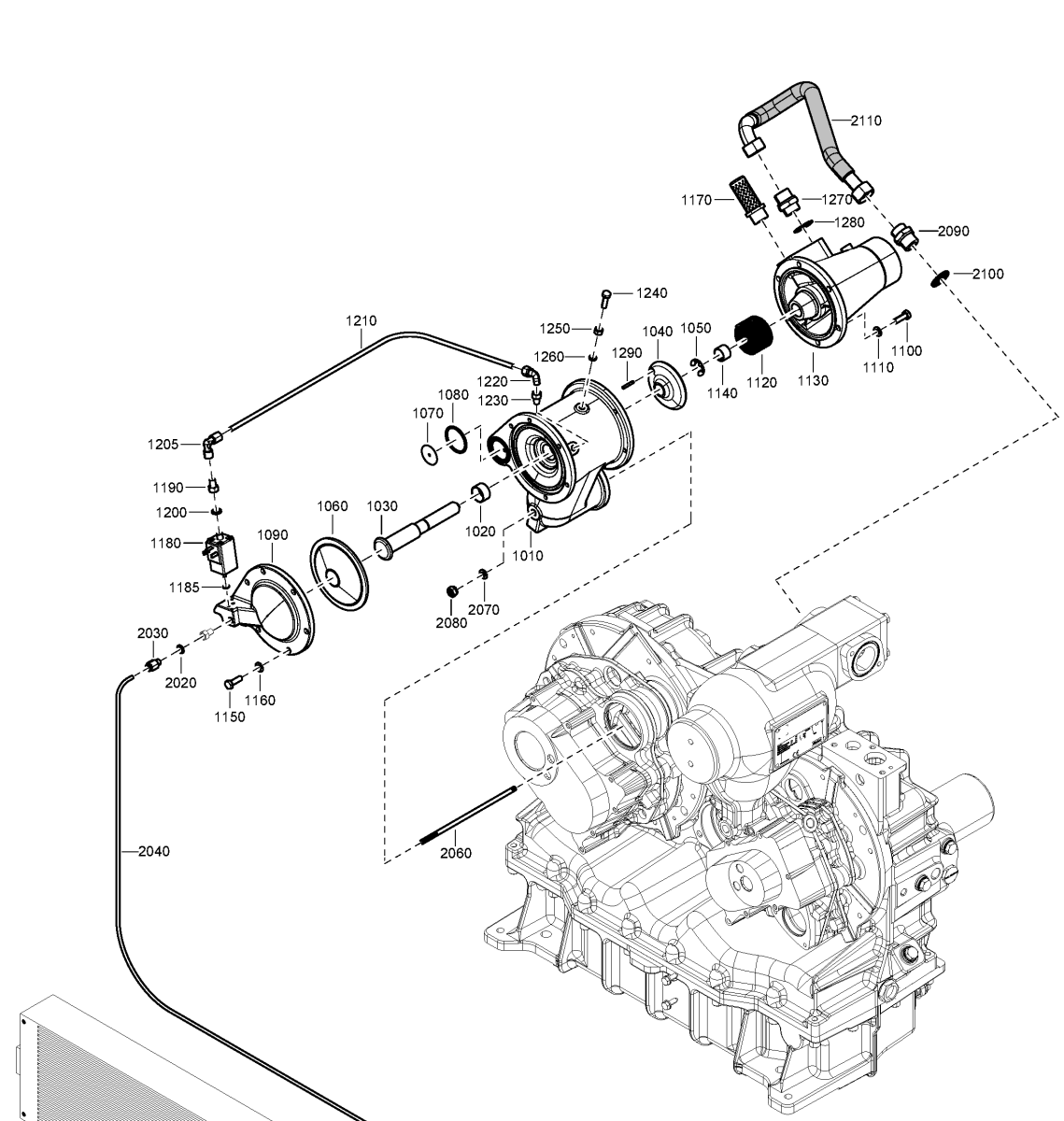

Ref Part Number Qty Name
1622 1110 82 1 INLET THROTTLE VALVE
1010 1 VALVE HOUSING
1020 1 BEARING
Service kits: 2901 1102 00 - INLET VALVE OVERHAUL KIT
1030 1613 5718 00 1 VALVE
Substituted by: 1613 5718 10 - SHAFT VALVE (quantity: 1)

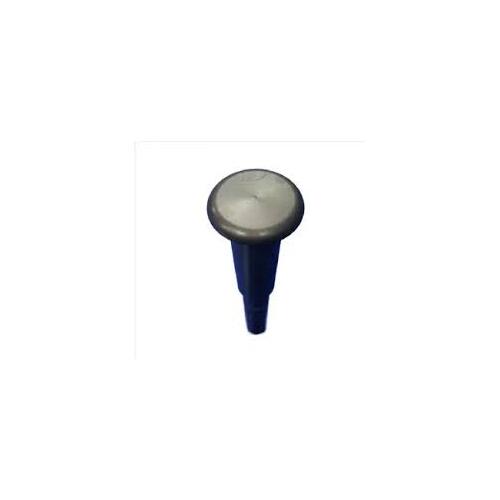

1030 1613 5718 10 1 SHAFT VALVE
1040 1 VALVES
Service kits: 2901 1102 00 - INLET VALVE OVERHAUL KIT
1050 1 RETAINING RING
Service kits: 2901 1102 00 - INLET VALVE OVERHAUL KIT
1050 0335 1122 00 1 CIRCLIP
1060 1 DIAPHRAGM
Service kits: 2901 1101 00 - INLET VALVE OVERHAUL KIT
1070 1 MEMBRANE
Service kits: 2901 1101 00 - INLET VALVE OVERHAUL KIT
1080 1 O-RING 42.2X3
Service kits: 2901 1101 00 - INLET VALVE OVERHAUL KIT
1090 1622 1112 00 1 VALVE COVER
Substituted by: 1622 1112 01 - COVER (quantity: 1)
1090 1622 1112 01 1 COVER
1100 0147 1325 03 6 HEXAGON BOLT
1110 0301 2335 00 6 PLAIN WASHER
1120 1 SPRING
Service kits: 2901 1102 00 - INLET VALVE OVERHAUL KIT
1130 1622 1671 00 1 CONNECTION
Substituted by: 1622 1671 01 - THROTTLE (quantity: 1)
1130 1622 1671 01 1 CONNECTION
1140 1 BUSHING
Service kits: 2901 1102 00 - INLET VALVE OVERHAUL KIT
1150 0147 1325 03 6 HEXAGON BOLT
1160 0301 2335 00 6 PLAIN WASHER
1170 1 MUFFLER
Service kits: 2901 1101 00 - INLET VALVE OVERHAUL KIT
1180 1089 0428 13 1 SOLENOID VALVE
1185 0663 2104 83 2 O-RING
1190 0605 8350 63 1 BUSHING
1200 2 WASHER M10
Service kits: 2901 1102 00 - INLET VALVE OVERHAUL KIT
2901 1870 00 - LP EXCHANGE KIT(Z2008)
1200 1 WASHER M10
Service kits: 2901 1102 00 - INLET VALVE OVERHAUL KIT
2901 1870 00 - LP EXCHANGE KIT(Z2008)
1205 0581 1200 52 1 ELBOW G1/8 X 8
1205 0583 8121 23 1 ELBOW G1/8 X 8
1210 0070 6002 03 AR PLASTIC TUBE
1220 0581 1200 26 1 ELBOW ISO 7-R 1/8 X 8
1220 0583 8120 75 1 FITTING TUBE
1230 0605 8350 63 1 BUSHING
1240 0147 1364 03 1 HEXAGON BOLT
1250 0266 2111 00 1 NUT
1260 1 WASHER M10
Service kits: 2901 1102 00 - INLET VALVE OVERHAUL KIT
2901 1870 00 - LP EXCHANGE KIT(Z2008)
1270 0571 0035 75 1 NIPPLE M26X1,5 X G3/4 A
1280 1 WASHER M26
Service kits: 2901 1101 00 - INLET VALVE OVERHAUL KIT
2901 1102 00 - INLET VALVE OVERHAUL KIT
(1613571810)
| SKU | 1613571810 |
| Brand | Atlas Copco |
| Shipping Weight | 3.0000kg |
