1614 9066 00 Pipe Atlas Copco

$352.00
RRP $462.00
SAVE $110.00 (24%)


1614 9066 00 Pipe Atlas Copco

item 2190

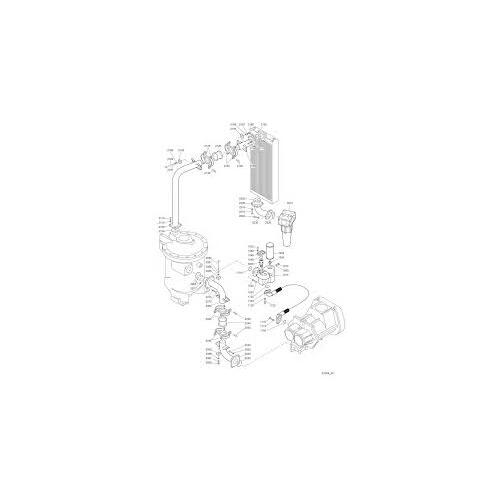

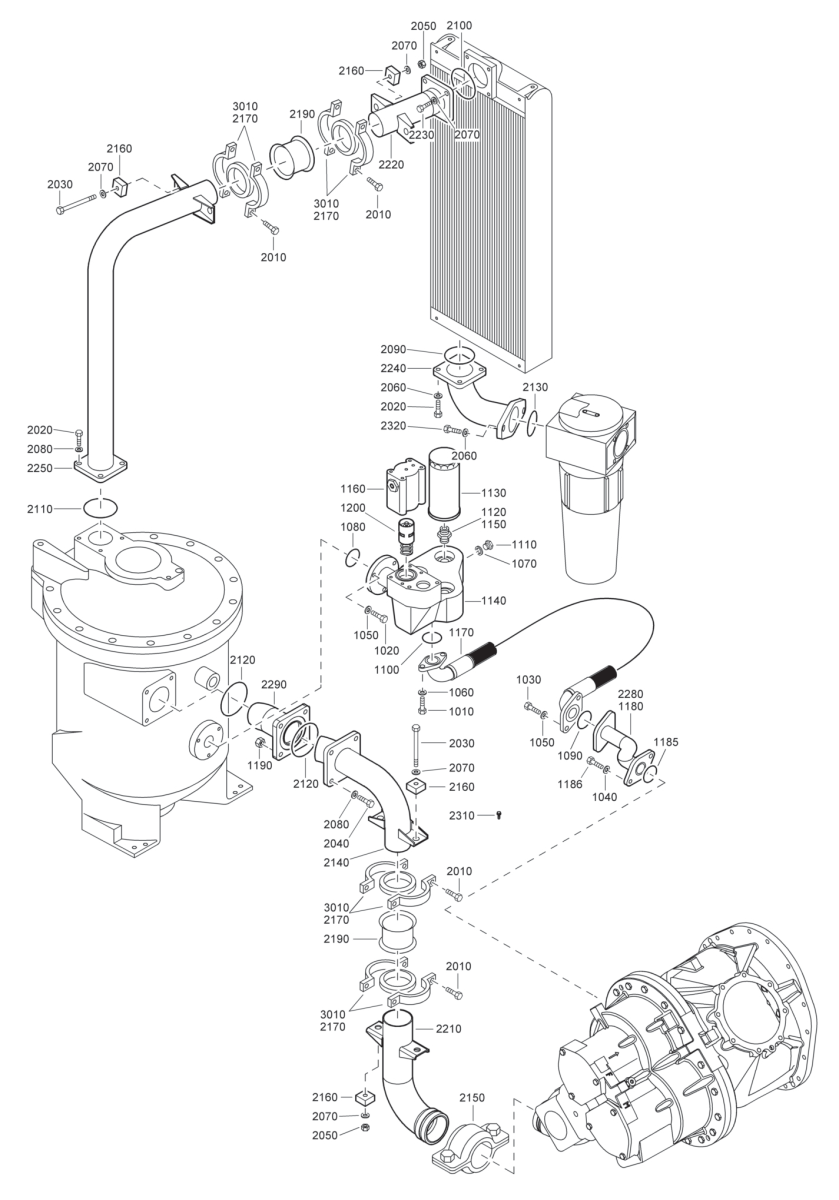

Air and oil system - C190

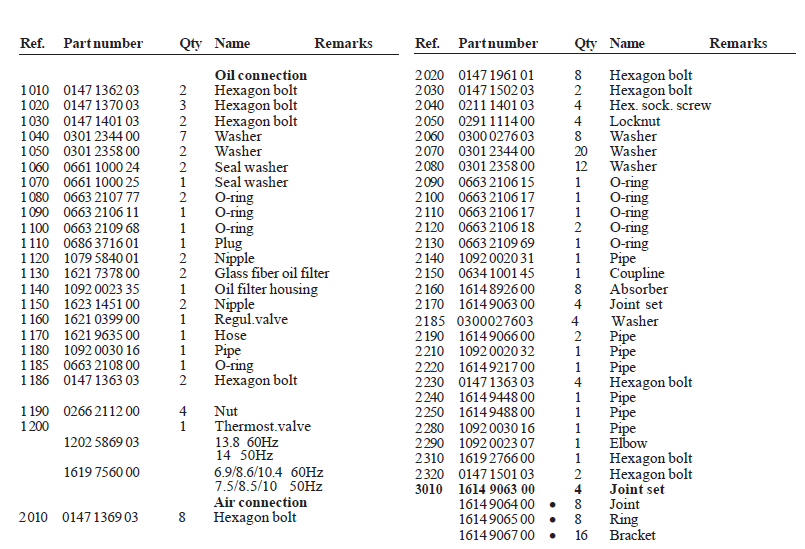

Ref. Part number Qty Name Remarks
Oil connection
1010 0147 1362 03 2 Hexagon bolt
1020 0147 1370 03 3 Hexagon bolt
1030 0147 1401 03 2 Hexagon bolt
1040 0301 2344 00 7 Washer
1050 0301 2358 00 2 Washer
1060 0661 1000 24 2 Seal washer
1070 0661 1000 25 1 Seal washer
1080 0663 2107 77 2 O-ring
1090 0663 2106 11 1 O-ring
1100 0663 2109 68 1 O-ring
1110 0686 3716 01 1 Plug
1120 1079 5840 01 2 Nipple
1130 1621 7378 00 2 Glass fiber oil filter
1140 1092 0023 35 1 Oil filter housing
1150 1623 1451 00 2 Nipple
1160 1621 0399 00 1 Regul.valve
1170 1621 9635 00 1 Hose
1180 1092 0030 16 1 Pipe
1185 0663 2108 00 1 O-ring
1186 0147 1363 03 2 Hexagon bolt
1190 0266 2112 00 4 Nut
1200 1 Thermost.valve
1202 5869 03 13.8 60Hz
1619 7560 00 6.9/8.6/10.4 60Hz
Air connection
2010 0147 1369 03 8 Hexagon bolt
Ref. Part number Qty Name Remarks
2020 0147 1961 01 8 Hexagon bolt
2030 0147 1502 03 2 Hexagon bolt
2040 0211 1401 03 4 Hex. sock. screw
2050 0291 1114 00 4 Locknut
2060 0300 0276 03 8 Washer
2070 0301 2344 00 20 Washer
2080 0301 2358 00 12 Washer
2090 0663 2106 15 1 O-ring
2100 0663 2106 17 1 O-ring
2110 0663 2106 17 1 O-ring
2120 0663 2106 18 2 O-ring
2130 0663 2109 69 1 O-ring
2140 1092 0020 31 1 Pipe
2150 0634 1001 45 1 Coupline
2160 1614 8926 00 8 Absorber
2170 1614 9063 00 4 Joint set
2185 0300027603 4 Washer

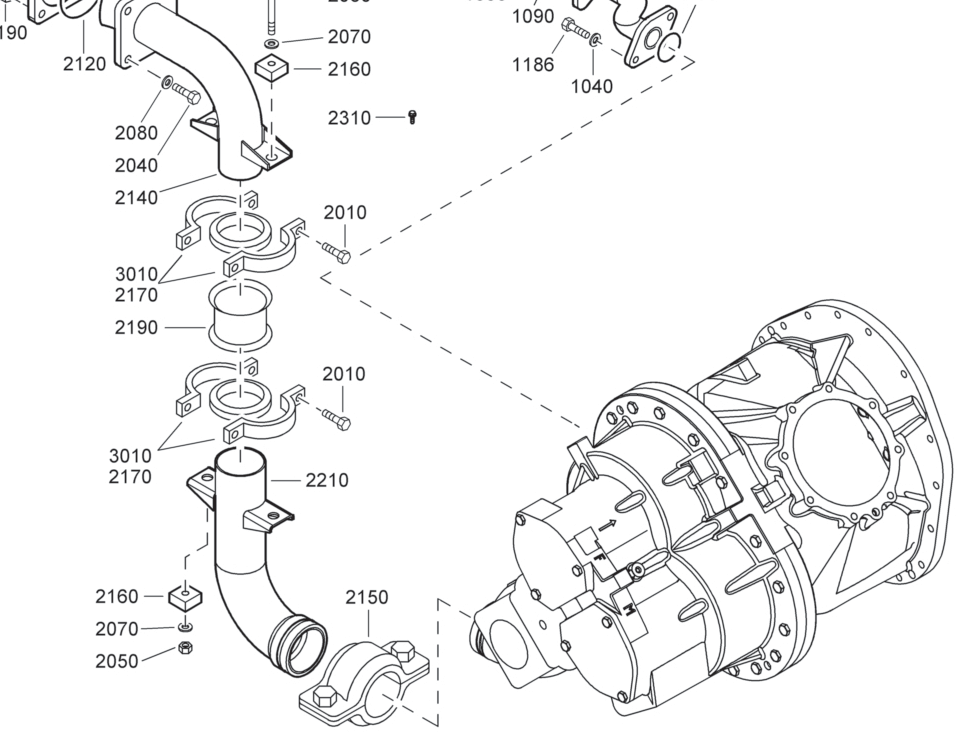

2190 1614 9066 00 2 Pipe
2210 1092 0020 32 1 Pipe
2220 1614 9217 00 1 Pipe
2230 0147 1363 03 4 Hexagon bolt
2240 1614 9448 00 1 Pipe
2250 1614 9488 00 1 Pipe
2280 1092 0030 16 1 Pipe
2290 1092 0023 07 1 Elbow
2310 1619 2766 00 1 Hexagon bolt
2320 0147 1501 03 2 Hexagon bolt
3010 1614 9063 00 4 Joint set
1614 9064 00 • 8 Joint
1614 9065 00 • 8 Ring
1614 9067 00 • 16 Bracket

(1614906600)

SKU 1614906600
Brand Atlas Copco
Shipping Weight 8.0000kg
