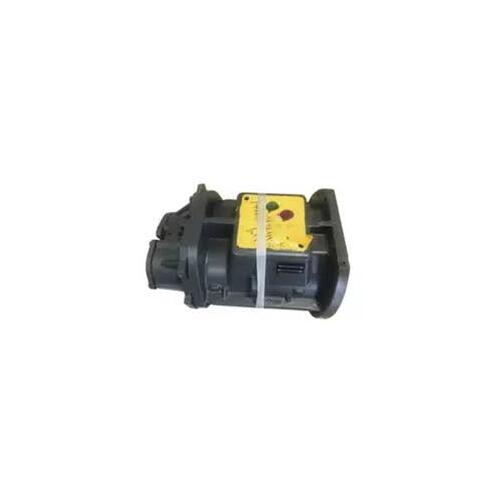

1616 7382 80 Element (Airend)

$14,574.00
RRP $15,474.00
SAVE $900.00 (6%)

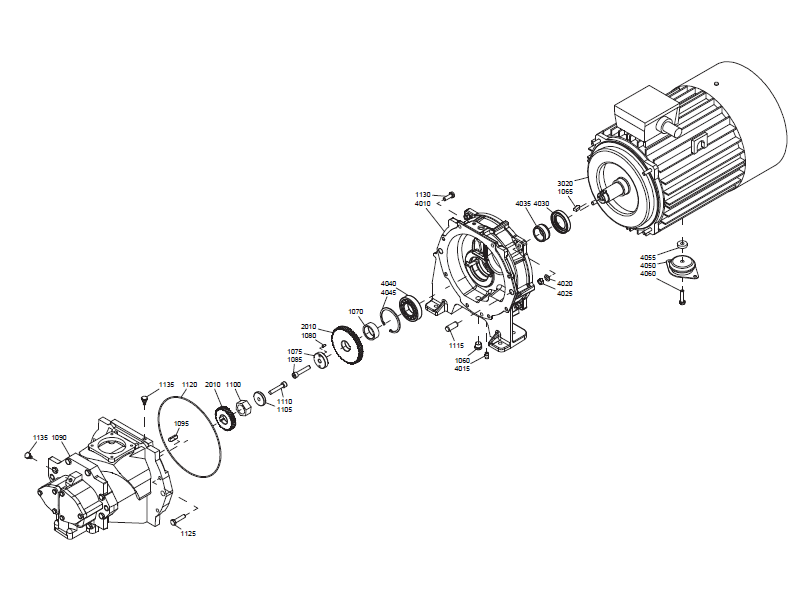

Drive arrangement - GA 11+, GA 15+, GA 18+, GA 22+ GA 26+, GA 30

Drive arrangement - GA 26+, GA 30
1 060 0686 3718 16 1 Plug
1 065 0337 0009 83 1 Parallel key
1 070 1622 6994 01 1 Spacer
1 075 1622 6995 00 1 Washer
1 080 0101 2274 00 2 Pin
1 085 0211 1368 00 1 Cap screw
1 090 1616 7382 80 1 Element
1 095 0337 0009 45 1 Parallel key
1 100 1622 3400 00 1 Spacer
1 105 1622 3401 00 1 Washer
1 110 0211 1368 00 1 Screw
1 115 0101 1951 40 2 Pin
1 120 0663 2103 22 1 O-ring
1 125 0147 1366 03 6 Hexagon bolt
1 130 0147 1363 03 2 Hexagon bolt
1 135 1619 6032 00 2 Nipple (SPM)
2 010 1 Gear set
1622 6993 70 GA 26+ 7.5bar(e)
1622 6993 82 GA 26+ 8.5bar(e)
1622 6993 68 GA 26+ 10bar(e)
1622 6993 72 GA 26+ 13bar(e)
1622 6993 68 GA 26+ 7.5bar(e) HAV
1622 6993 73 GA 26+ 8.5bar(e) HAV
1622 6993 74 GA 26+ 10bar(e) HAV
1622 6993 77 GA 26+ 13bar(e) HAV
1622 6993 73 GA 26+ 100psig
1622 6993 74 GA 26+ 125psig
1622 6993 75 GA 26+ 150psig
1622 6993 77 GA 26+ 175psig
1622 6993 72 GA 26+ 100psig HAV
1622 6993 75 GA 26+ 125psig HAV
1622 6993 77 GA 26+ 150psig HAV
1622 6993 79 GA 26+ 175psig HAV
1622 6993 81 GA 30 7.5bar(e)
1622 6993 71 GA 30 8.5bar(e)
1622 6993 69 GA 30 10bar(e)
1622 6993 68 GA 30 13bar(e)
1622 6993 69 GA 30 7.5bar(e) HAV
1622 6993 70 GA 30 8.5bar(e) HAV
1622 6993 68 GA 30 10bar(e) HAV
1622 6993 72 GA 30 13bar(e) HAV
1622 6993 82 GA 30 100psig
1622 6993 68 GA 30 125psig
1622 6993 76 GA 30 150psig
1622 6993 78 GA 30 175psig
1622 6993 73 GA 30 100psig HAV
1622 6993 74 GA 30 125psig HAV
1622 6993 75 GA 30 150psig HAV
1622 6993 77 GA 30 175psig HAV
1 Motor assembly
1622 7943 01 GA 26+ 200V/50Hz IEC
1622 7943 02 GA 26+ 230V/50Hz IEC
1622 7943 04 GA 26+ 400V/50Hz IEC
1622 7943 06 GA 26+ 500V/50Hz IEC

(1616738280)

SKU 1616738280
Brand Atlas Copco
Shipping Weight 35.0000kg
