1616 7540 80 Element ORIGINAL
1616754080 Element ORIGINAL

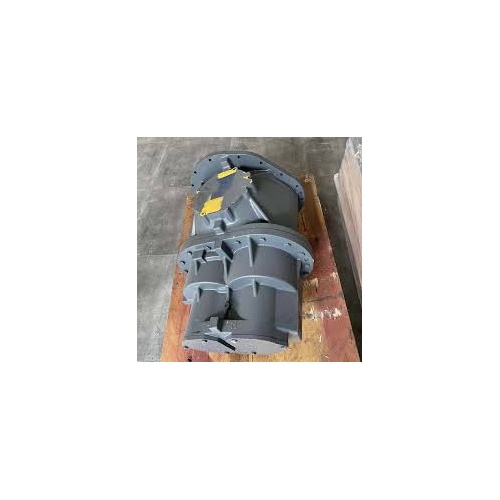

AIREND 1616754080 for Atlas Copco Compressor OEM 1616-7540-80 C242
Atlas Copco
.png)
.png)

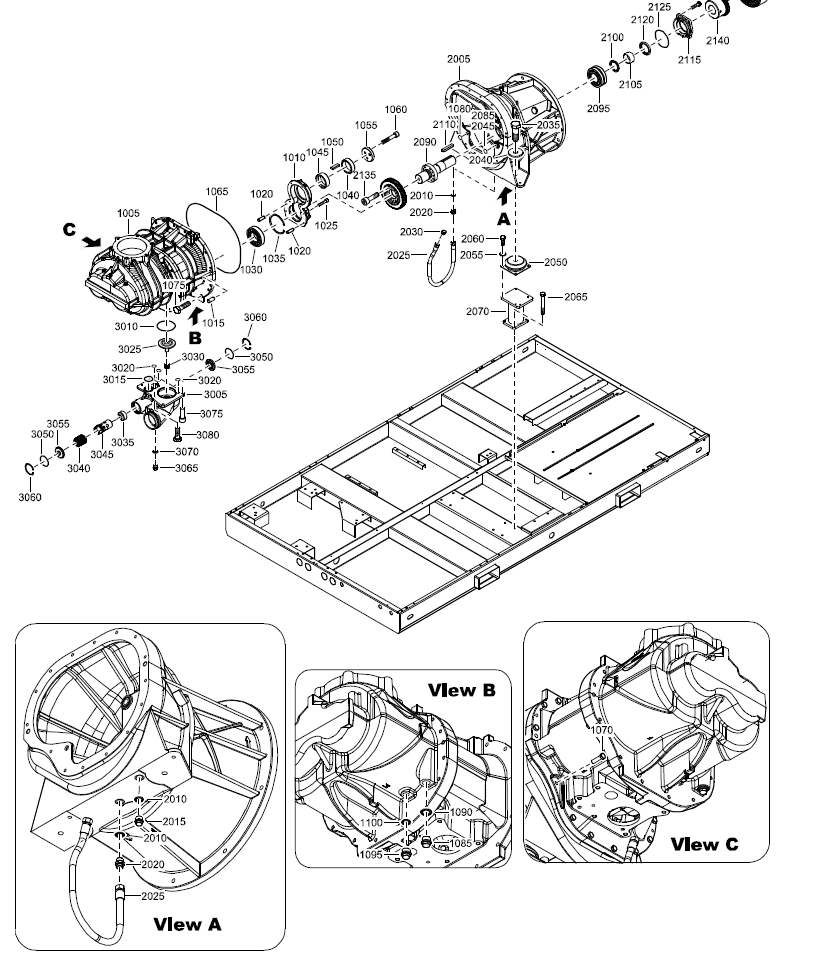

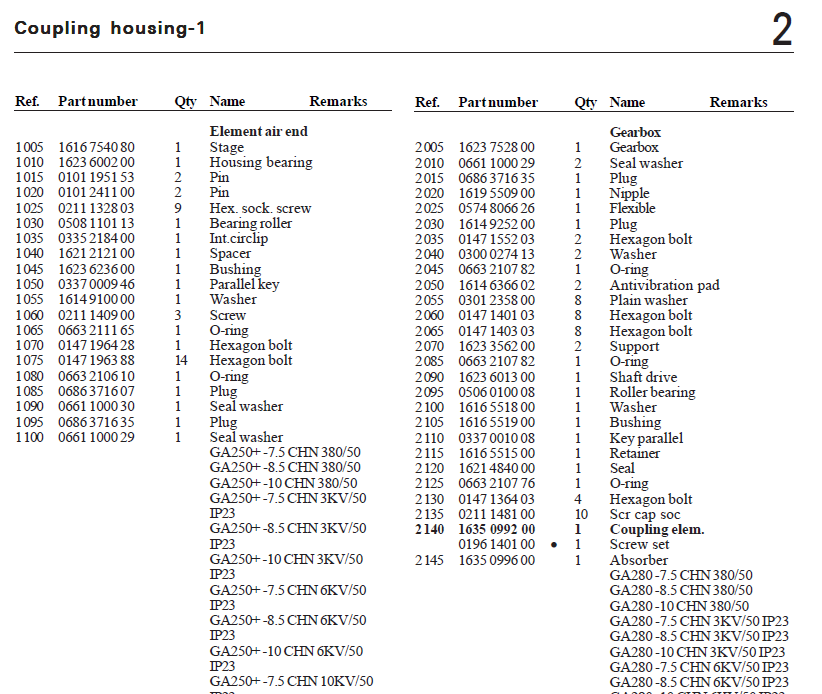

Coupling housing-1 2
Ref. Part number Qty Name Remarks
Element air end
1005 1616 7540 80 1 Stage
1010 1623 6002 00 1 Housing bearing
1015 0101 1951 53 2 Pin
1020 0101 2411 00 2 Pin
1025 0211 1328 03 9 Hex. sock. screw
1030 0508 1101 13 1 Bearing roller
1035 0335 2184 00 1 Int.circlip
1040 1621 2121 00 1 Spacer
1045 1623 6236 00 1 Bushing
1050 0337 0009 46 1 Parallel key
1055 1614 9100 00 1 Washer
1060 0211 1409 00 3 Screw
1065 0663 2111 65 1 O-ring
1070 0147 1964 28 1 Hexagon bolt
1075 0147 1963 88 14 Hexagon bolt
1080 0663 2106 10 1 O-ring
1085 0686 3716 07 1 Plug
1090 0661 1000 30 1 Seal washer
1095 0686 3716 35 1 Plug
1100 0661 1000 29 1 Seal washer
GA250+ -7.5 CHN 380/50
GA250+ -8.5 CHN 380/50
GA250+ -10 CHN 380/50
GA250+ -7.5 CHN 3KV/50
IP23
GA250+ -8.5 CHN 3KV/50
IP23
GA250+ -10 CHN 3KV/50
IP23
GA250+ -7.5 CHN 6KV/50
IP23
GA250+ -8.5 CHN 6KV/50
IP23
GA250+ -10 CHN 6KV/50
IP23
GA250+ -7.5 CHN 10KV/50
IP23
GA250+ -8.5 CHN 10KV/50
IP23
GA250+ -10 CHN 10KV/50
IP23
GA250+ W-7.5 CHN 380/50
GA250+ W-8.5 CHN 380/50
GA250+ W-10 CHN 380/50
GA250+ W-7.5 CHN 3KV/50
IP23
GA250+ W-8.5 CHN 3KV/50
IP23
GA250+ W-10 CHN 3KV/50
IP23
GA250+ W-7.5 CHN 6KV/50
IP23
GA250+ W-8.5 CHN 6KV/50
IP23
GA250+ W-10 CHN 6KV/50
IP23
GA250+ W-7.5 CHN 10KV/50
IP23
GA250+ W-8.5 CHN 10KV/50
IP23
GA250+ W-10 CHN 10KV/50
IP23
Ref. Part number Qty Name Remarks
Gearbox
2005 1623 7528 00 1 Gearbox
2010 0661 1000 29 2 Seal washer
2015 0686 3716 35 1 Plug
2020 1619 5509 00 1 Nipple
2025 0574 8066 26 1 Flexible
2030 1614 9252 00 1 Plug
2035 0147 1552 03 2 Hexagon bolt
2040 0300 0274 13 2 Washer
2045 0663 2107 82 1 O-ring
2050 1614 6366 02 2 Antivibration pad
2055 0301 2358 00 8 Plain washer
2060 0147 1401 03 8 Hexagon bolt
2065 0147 1403 03 8 Hexagon bolt
2070 1623 3562 00 2 Support
2085 0663 2107 82 1 O-ring
2090 1623 6013 00 1 Shaft drive
2095 0506 0100 08 1 Roller bearing
2100 1616 5518 00 1 Washer
2105 1616 5519 00 1 Bushing
2110 0337 0010 08 1 Key parallel
2115 1616 5515 00 1 Retainer
2120 1621 4840 00 1 Seal
2125 0663 2107 76 1 O-ring
2130 0147 1364 03 4 Hexagon bolt
2135 0211 1481 00 10 Scr cap soc
2 140 1635 0992 00 1 Coupling elem.
0196 1401 00 • 1 Screw set
2145 1635 0996 00 1 Absorber
GA280 -7.5 CHN 380/50
GA280 -8.5 CHN 380/50
GA280 -10 CHN 380/50
GA280 -7.5 CHN 3KV/50 IP23
GA280 -8.5 CHN 3KV/50 IP23
GA280 -10 CHN 3KV/50 IP23
GA280 -7.5 CHN 6KV/50 IP23
GA280 -8.5 CHN 6KV/50 IP23
GA280 -10 CHN 6KV/50 IP23
GA280 -7.5 CHN 10KV/50
IP23
GA280 -8.5 CHN 10KV/50
IP23
GA280 -10 CHN 10KV/50 IP23
GA280 W-7.5 CHN 380/50
GA280 W-8.5 CHN 380/50
GA280 W-10 CHN 380/50
GA280 W-7.5 CHN 3KV/50
IP23
GA280 W-8.5 CHN 3KV/50
IP23
GA280 W-10 CHN 3KV/50
IP23
GA280 W-7.5 CHN 6KV/50
IP23
GA280 W-8.5 CHN 6KV/50
IP23
GA280 W-10 CHN 6KV/50
IP23
GA280 W-7.5
(1616754080)
| SKU | 1616754080 |
| Brand | Atlas Copco |
| Shipping Weight | 75.0000kg |
