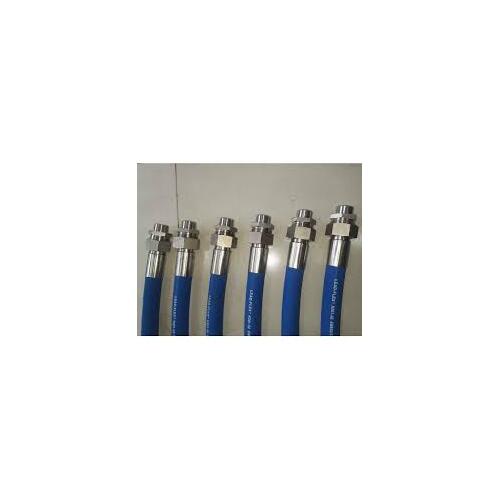

1621 9635 00 Hose Atlas Copco

$726.00
RRP $818.40
SAVE $92.40 (11%)


1621 9635 00 Hose Atlas Copco

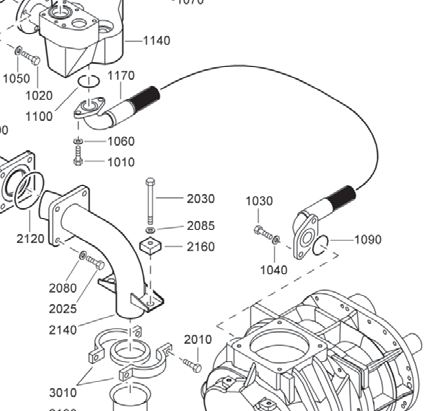

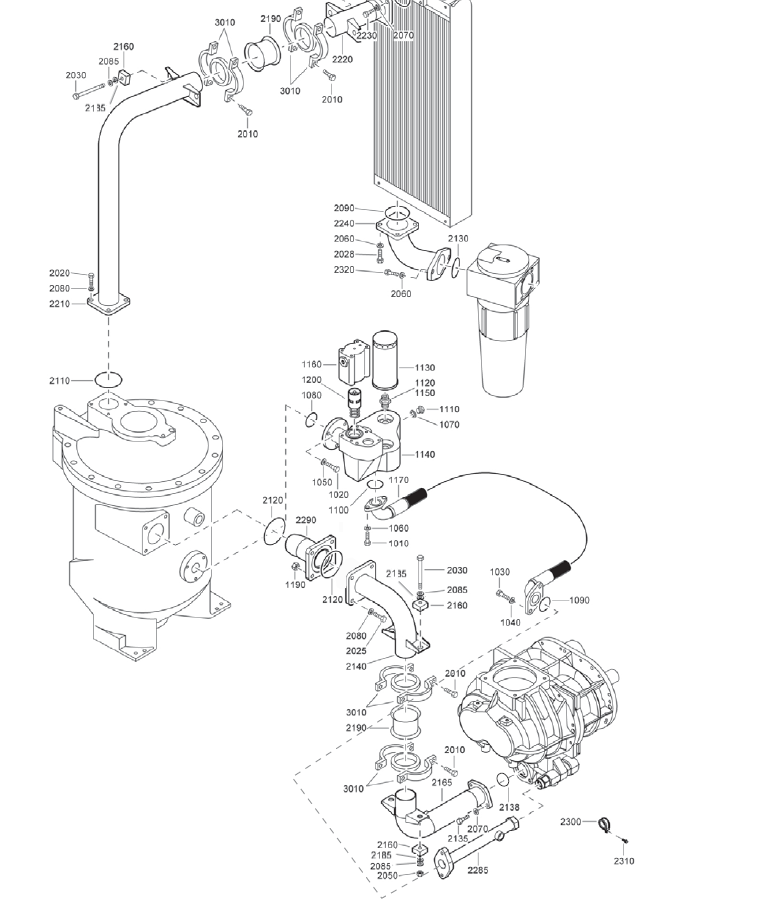

Air and oil system - C146



item 1170

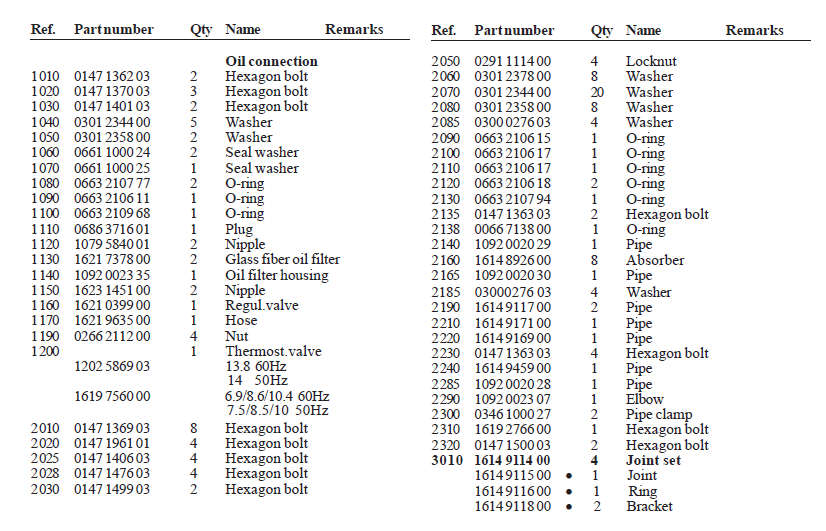

Ref. Part number Qty Name Remarks
Oil connection
1010 0147 1362 03 2 Hexagon bolt
1020 0147 1370 03 3 Hexagon bolt
1030 0147 1401 03 2 Hexagon bolt
1040 0301 2344 00 5 Washer
1050 0301 2358 00 2 Washer
1060 0661 1000 24 2 Seal washer
1070 0661 1000 25 1 Seal washer
1080 0663 2107 77 2 O-ring
1090 0663 2106 11 1 O-ring
1100 0663 2109 68 1 O-ring
1110 0686 3716 01 1 Plug
1120 1079 5840 01 2 Nipple
1130 1621 7378 00 2 Glass fiber oil filter
1140 1092 0023 35 1 Oil filter housing
1150 1623 1451 00 2 Nipple
1160 1621 0399 00 1 Regul.valve
1170 1621 9635 00 1 Hose
1190 0266 2112 00 4 Nut
1200 1 Thermost.valve
1202 5869 03 13.8 60Hz
1619 7560 00 6.9/8.6/10.4 60Hz
2010 0147 1369 03 8 Hexagon bolt
2020 0147 1961 01 4 Hexagon bolt
2025 0147 1406 03 4 Hexagon bolt
2028 0147 1476 03 4 Hexagon bolt
2030 0147 1499 03 2 Hexagon bolt
Ref. Part number Qty Name Remarks
2050 0291 1114 00 4 Locknut
2060 0301 2378 00 8 Washer
2070 0301 2344 00 20 Washer
2080 0301 2358 00 8 Washer
2085 0300 0276 03 4 Washer
2090 0663 2106 15 1 O-ring
2100 0663 2106 17 1 O-ring
2110 0663 2106 17 1 O-ring
2120 0663 2106 18 2 O-ring
2130 0663 2107 94 1 O-ring
2135 0147 1363 03 2 Hexagon bolt
2138 0066 7138 00 1 O-ring
2140 1092 0020 29 1 Pipe
2160 1614 8926 00 8 Absorber
2165 1092 0020 30 1 Pipe
2185 03000276 03 4 Washer
2190 1614 9117 00 2 Pipe
2210 1614 9171 00 1 Pipe
2220 1614 9169 00 1 Pipe
2230 0147 1363 03 4 Hexagon bolt
2240 1614 9459 00 1 Pipe
2285 1092 0020 28 1 Pipe
2290 1092 0023 07 1 Elbow
2300 0346 1000 27 2 Pipe clamp
2310 1619 2766 00 1 Hexagon bolt
2320 0147 1500 03 2 Hexagon bolt
3010 1614 9114 00 4 Joint set
1614 9115 00 •     1 Joint
1614 9116 00 • 1 Ring
1614 9118 00 • 2 Bracket

(1621963500)

SKU 1621963500
Brand Atlas Copco
Shipping Weight 5.0000kg
