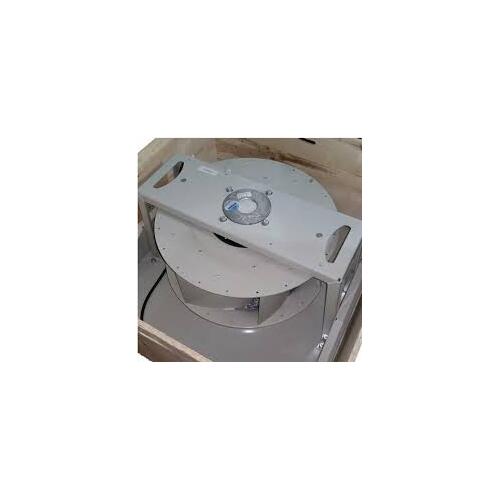

1622 0706 02 Cooling Air Fan Motor Atlas Copco
Radial Fan Atlas Copco ZT Oil Free Air Compressors
1622 0706 02 0,5KW
ZT15 230V/50Hz,
ZT15 400V/50Hz,
ZT18 230V/50Hz,
ZT18 400V/50Hz,
ZT22 230V/50Hz,
ZT22 400V/50Hz
Cooling Air Fan Motor 1622070602 1625883902 1622070602 Suitable for Atlas Copco Compressor GA55 GA75 GA90 1622-0706-02 1625-8839-02.
1622 3486 02 / 1622 9416 13 / 1622348602 / 1622941613 /
.png)
.png)

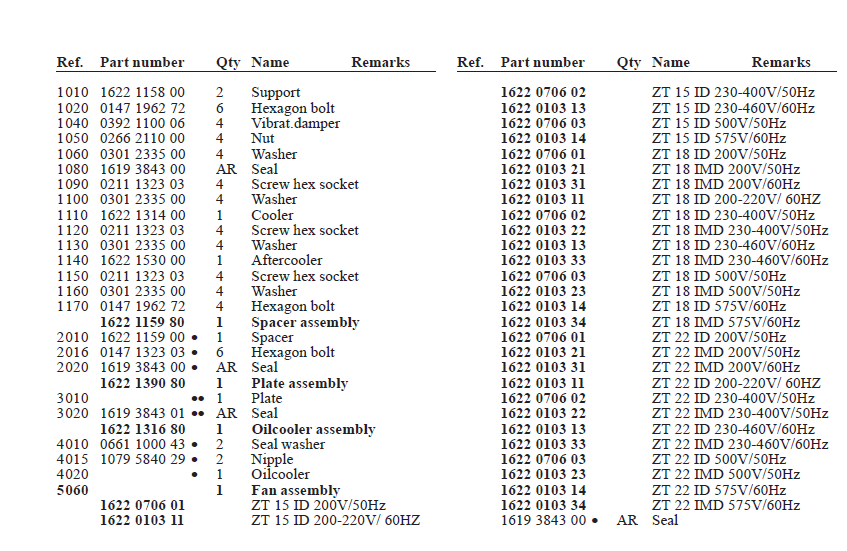

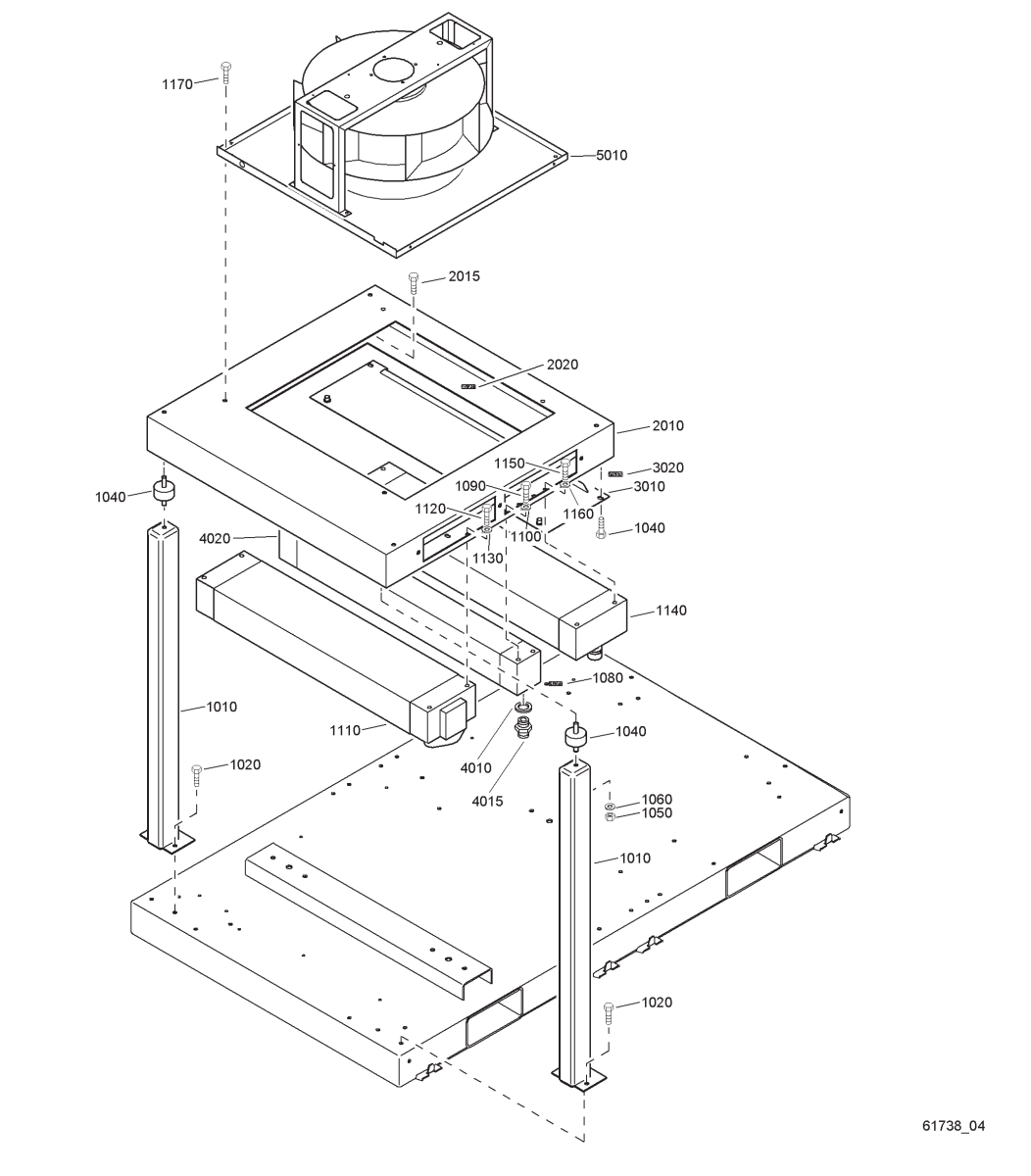

1010 1622 1158 00 2 Support
1020 0147 1962 72 6 Hexagon bolt
1040 0392 1100 06 4 Vibrat.damper
1050 0266 2110 00 4 Nut
1060 0301 2335 00 4 Washer
1080 1619 3843 00 AR Seal
1090 0211 1323 03 4 Screw hex socket
1100 0301 2335 00 4 Washer
1110 1622 1314 00 1 Cooler
1120 0211 1323 03 4 Screw hex socket
1130 0301 2335 00 4 Washer
1140 1622 1530 00 1 Aftercooler
1150 0211 1323 03 4 Screw hex socket
1160 0301 2335 00 4 Washer
1170 0147 1962 72 4 Hexagon bolt
1622 1159 80 1 Spacer assembly
2010 1622 1159 00 • 1 Spacer
2016 0147 1323 03 • 6 Hexagon bolt
2020 1619 3843 00 • AR Seal
1622 1390 80 1 Plate assembly
3010 •• 1 Plate
3020 1619 3843 01 •• AR Seal
1622 1316 80 1 Oilcooler assembly
4010 0661 1000 43 • 2 Seal washer
4015 1079 5840 29 • 2 Nipple
4020 • 1 Oilcooler
5060 1 Fan assembly
1622 0706 01 ZT 15 ID 200V/50Hz
1622 0103 11 ZT 15 ID 200-220V/ 60HZ
Ref. Part number Qty Name Remarks
1622 0706 02 ZT 15 ID 230-400V/50Hz
1622 0103 13 ZT 15 ID 230-460V/60Hz
1622 0706 03 ZT 15 ID 500V/50Hz
1622 0103 14 ZT 15 ID 575V/60Hz
1622 0706 01 ZT 18 ID 200V/50Hz
1622 0103 21 ZT 18 IMD 200V/50Hz
1622 0103 31 ZT 18 IMD 200V/60Hz
1622 0103 11 ZT 18 ID 200-220V/ 60HZ
1622 0706 02 ZT 18 ID 230-400V/50Hz
1622 0103 22 ZT 18 IMD 230-400V/50Hz
1622 0103 13 ZT 18 ID 230-460V/60Hz
1622 0103 33 ZT 18 IMD 230-460V/60Hz
1622 0706 03 ZT 18 ID 500V/50Hz
1622 0103 23 ZT 18 IMD 500V/50Hz
1622 0103 14 ZT 18 ID 575V/60Hz
1622 0103 34 ZT 18 IMD 575V/60Hz
1622 0706 01 ZT 22 ID 200V/50Hz
1622 0103 21 ZT 22 IMD 200V/50Hz
1622 0103 31 ZT 22 IMD 200V/60Hz
1622 0103 11 ZT 22 ID 200-220V/ 60HZ
1622 0706 02 ZT 22 ID 230-400V/50Hz
1622 0103 22 ZT 22 IMD 230-400V/50Hz
1622 0103 13 ZT 22 ID 230-460V/60Hz
1622 0103 33 ZT 22 IMD 230-460V/60Hz
1622 0706 03 ZT 22 ID 500V/50Hz
1622 0103 23 ZT 22 IMD 500V/50Hz
1622 0103 14 ZT 22 ID 575V/60Hz
1622 0103 34 ZT 22 IMD 575V/60Hz
(1622070602)

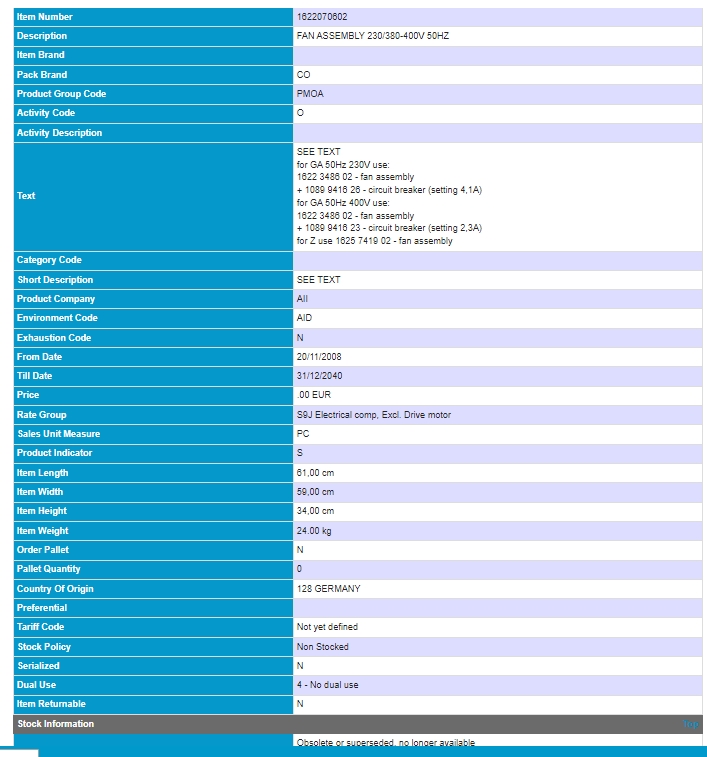

| SKU | 1622070602 |
| Brand | Atlas Copco |
| Shipping Weight | 17.0000kg |
