1622 1197 00 ZT inlet Valve Connection

$6,100.00
RRP $6,544.00
SAVE $444.00 (7%)

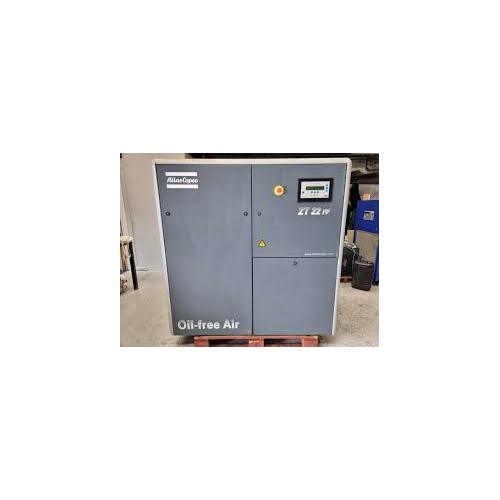

ZT15-18-22-30-37-45 ZR30-37-45 from Serial AII - 702 000 > Year 2003 onwards

Not stocked - OEM Only 8-10 Weeks Lead typically

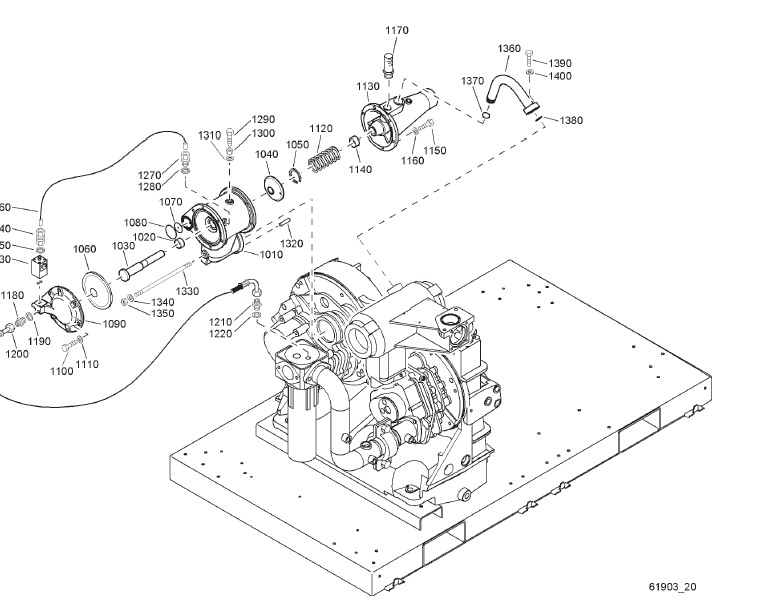

Item 1130 - 1622 1197 00 (1622119700) ZT inlet valve connection.

Worldwide delivery available.

1010 1622 1110 00 1 Valve housing
1020 0500 4510 27 1 Bearing
1030 1613 5718 00 1 Valve
1040 1621 1004 00 1 Valve
1050 0335 3114 00 1 Retaining ring
1060 1621 1005 00 1 Diaphragm
1070 1613 4036 00 1 Membrane
1080 0663 2108 16 1 O-ring
1090 1622 1112 00 1 Valve cover
1100 0147 1325 03 6 Hexagon bolt
1110 0301 2335 00 6 Washer
1120 1613 5721 00 1 Spring
1130 1622 1197 00 1 Connection
1140 0500 4510 01 1 Bushing
1150 0147 1325 03 6 Hexagon bolt
1160 0301 2335 00 6 Washer
1170 1614 6819 00 1 Muffler
1180 1079 5840 01 1 Nipple
1190 0661 1000 42 1 Seal washer
1200 0574 8861 10 1 Hose assembly

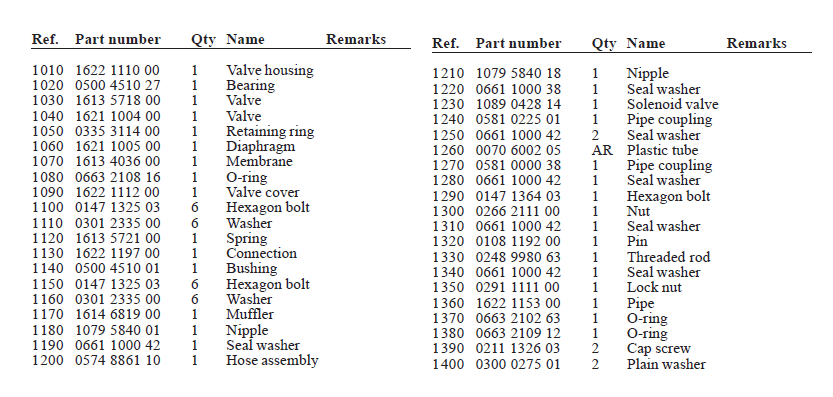

Ref. Part number Qty Name Remarks
1210 1079 5840 18 1 Nipple
1220 0661 1000 38 1 Seal washer
1230 1089 0428 14 1 Solenoid valve
1240 0581 0225 01 1 Pipe coupling
1250 0661 1000 42 2 Seal washer
1260 0070 6002 05 AR Plastic tube
1270 0581 0000 38 1 Pipe coupling
1280 0661 1000 42 1 Seal washer
1290 0147 1364 03 1 Hexagon bolt
1300 0266 2111 00 1 Nut
1310 0661 1000 42 1 Seal washer
1320 0108 1192 00 1 Pin
1330 0248 9980 63 1 Threaded rod
1340 0661 1000 42 1 Seal washer
1350 0291 1111 00 1 Lock nut
1360 1622 1153 00 1 Pipe
1370 0663 2102 63 1 O-ring
1380 0663 2109 12 1 O-ring
1390 0211 1326 03 2 Cap screw
1400 0300 0275 01 2 Plain washer

(1622119700)

SKU 1622119700
Brand Atlas Copco
Shipping Weight 5.0000kg
