2901 0155 00 XAS Atlas Copco Seal Kit OEM

$1,210.00
RRP $1,320.00
SAVE $110.00 (8%)


2901015500 XAS Replacement Atlas Copco Seal Kit

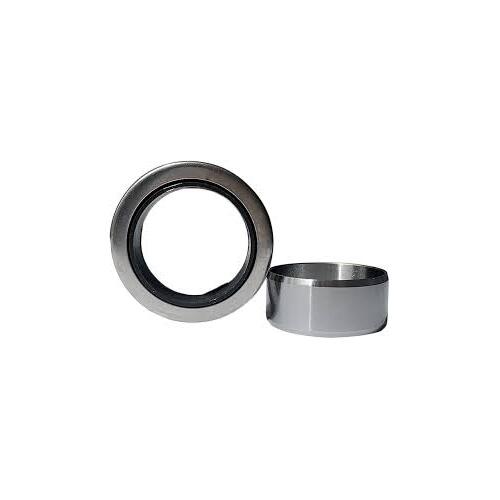

Seal KIT Contains items 16 (Bushing), Item 19 (Seal)and O Ring 0663 7141 00 (O Ring)

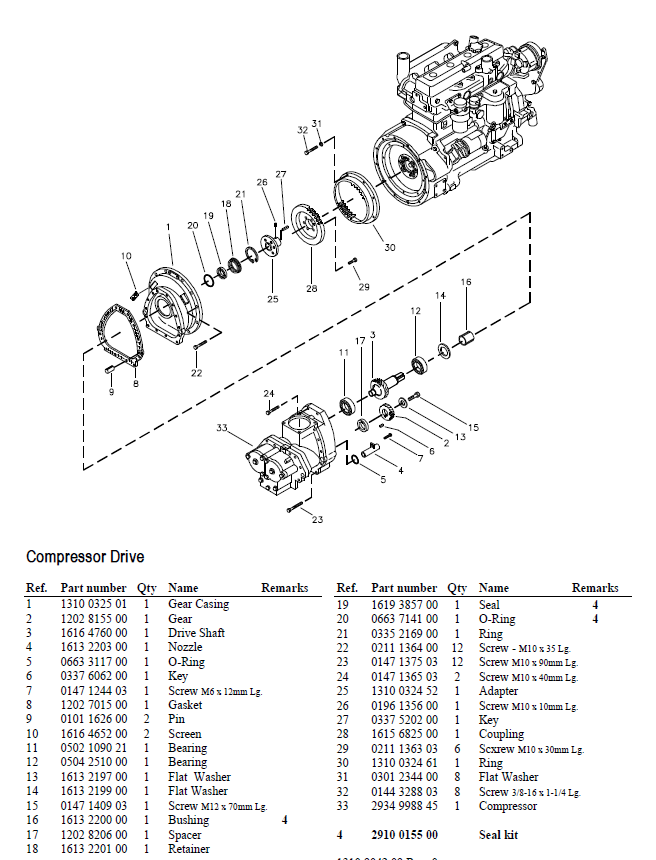

Ref. Part number Qty Name Remarks Ref. Part number Qty Name Remarks
1 1310 0325 01 1 Gear Casing
2 1202 8155 00 1 Gear
3 1616 4760 00 1 Drive Shaft
4 1613 2203 00 1 Nozzle
5 0663 3117 00 1 O-Ring
6 0337 6062 00 1 Key
7 0147 1244 03 1 Screw M6 x 12mm Lg.
8 1202 7015 00 1 Gasket
9 0101 1626 00 2 Pin
10 1616 4652 00 2 Screen
11 0502 1090 21 1 Bearing
12 0504 2510 00 1 Bearing
13 1613 2197 00 1 Flat Washer
14 1613 2199 00 1 Flat Washer
15 0147 1409 03 1 Screw M12 x 70mm Lg.
16 1613 2200 00 1 Bushing 4
17 1202 8206 00 1 Spacer
18 1613 2201 00 1 Retainer
19 1619 3857 00 1 Seal 4
20 0663 7141 00 1 O-Ring 4
21 0335 2169 00 1 Ring
22 0211 1364 00 12 Screw - M10 x 35 Lg.
23 0147 1375 03 12 Screw M10 x 90mm Lg.
24 0147 1365 03 2 Screw M10 x 40mm Lg.
25 1310 0324 52 1 Adapter
26 0196 1356 00 1 Screw M10 x 10mm Lg.
27 0337 5202 00 1 Key
28 1615 6825 00 1 Coupling
29 0211 1363 03 6 Scxrew M10 x 30mm Lg.
30 1310 0324 61 1 Ring
31 0301 2344 00 8 Flat Washer
32 0144 3288 03 8 Screw 3/8-16 x 1-1/4 Lg.
33 2934 9988 45 1 Compressor
4 2910 0155 00 Seal kit

(2901015500)

SKU 2901015500
Shipping Weight 5.0000kg
