2901 1963 00 Atlas Copco Replacement Separator

2901 1963 00 Atlas Copco Replacement Separator

Air / Oil Separator - 1625 7036 00 / 1625703600 /  2901196300 /  2901 1963 00

Separator: P 52-5673 / 4930152761 / OT 2126 / KV60-072

Body Height (H-0)188 mm

Total Height (H-TOTAL) 188 mm

Product Net Weight (WEIGHT) 1.43 Kg

Largest Inner Diameter (Ø IN-MAX) 70 mm

Outer Diameter (Ø OUT) 130 mm

Largest Outer Diameter (Ø OUT-MAX) 239 mm

Atlas Copco1625703600 / 1625 7036 00

Atlas Copco 2901196300 / 2901196300

Atlas Copco 2901196310 / 2901 1963 10

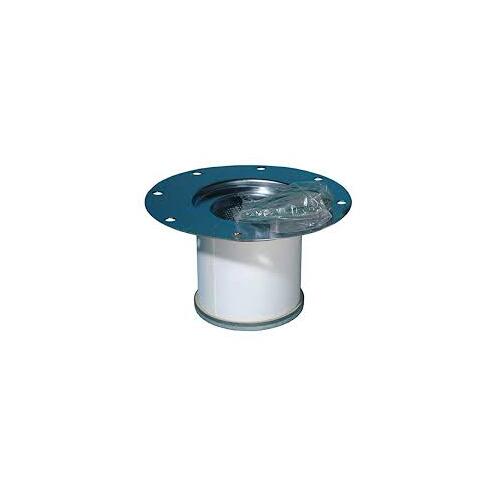

Image illustration only

There are 8 replacements for HIFI-FILTER OT2120. These are indirect matches for ATLAS-COPCO 2901196300

• Indirect matches for HIFI-FILTER OT2120
• ALDAIR DSL48230
• ATLAS-COPCO 1625703600
• ATLAS-COPCO 1625 7036 00
• ATLAS-COPCO 1625703600
• ATLAS-COPCO 2901196300
• ATLAS-COPCO 1625 7036 00
• ATLAS-COPCO 2901 1963 00
• KELTEC KV60069 (KV60-072)
• MANN 4930152761
• NOITECH NS100017
• OXFIL SP3292
• SF-FILTER SAO59652

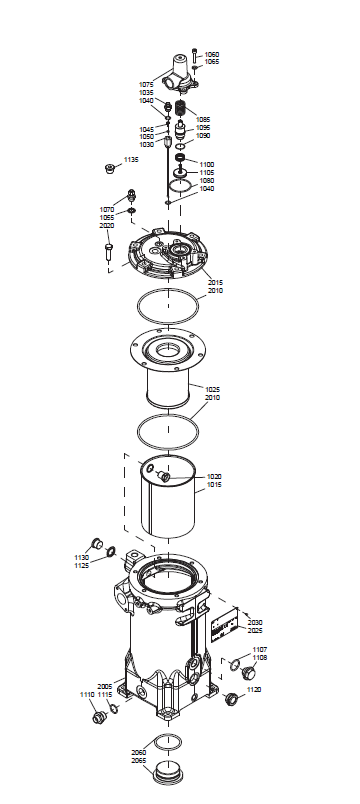

Oil system - Air receiver/Oil vessel 12
1 Air receiver
1622 6996 99 ASME
1622 6996 99 CE
1622 6996 95 MOM
1 015 1622 6920 00 • 1 Shield
1 020 1622 5078 00 • 1 Nipple
1 025 1625 7036 00 • 1 Separator
1 030 1625 7038 00 • 1 Scavenge line
1 035 1622 4867 00 • 1 Nipple
1 040 0663 3119 00 • 2 O-ring
1 045 1613 9005 01 • 1 Non return valve
1 050 0663 2108 11 • 1 O-ring
1 055 0661 1000 40 • 1 Seal washer
1 060 0211 1102 19 • 4 Screw
1 065 0301 2335 00 • 4 Washer
1 070 0581 0001 02 • 1 Nipple
1 075 1622 2737 00 • 1 Housing
1 080 0663 7137 00 • 1 O-ring
1 085 1622 0524 00 • 1 Spring
1 090 0663 2101 30 • 1 O-ring
1 095 1622 0522 01 • 1 Piston
1 100 1622 0525 00 • 1 Spring
1 105 1622 9078 80 • 1 Valve disk
1 107 0663 2102 15 • 1 O-ring
1 108 1202 8992 00 • 1 Plug
1 110 0571 0035 97 • 1 Nipple
1 115 0663 2113 37 • 1 O-ring
1 120 1513 0168 00 • 1 Sight glass
1 125 0661 1000 43 • 1 Seal washer
1 130 0686 6446 00 • 1 Plug
1 135 0686 3718 17 1 Plug
• 1 Vessel
1622 6912 99 ASME
1622 6912 99 CE
1622 6912 95 MOM
2 005 •• 1 Vessel
2 010 0663 2106 97 •• 2 O-ring
2 015 1622 6923 00 •• 1 Housing
2 020 0147 1107 91 •• 6 Hexagon bolt
2 025 •• 1 Data plate
2 030 0244 4184 00 •• 4 Drive screw
2 060 0663 2111 18 •• 1 O-ring
2 065 1622 0001 02 •• 1 Plug
