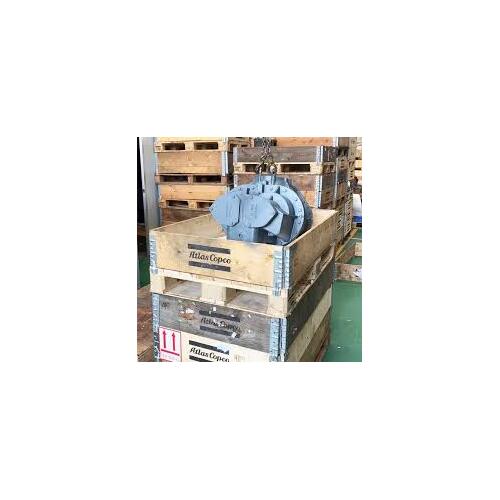

2989 0154 00 Service Stage (Element or Airend)

$8,053.00
RRP $9,874.00
SAVE $1,821.00 (18%)


AIREND 2989016400 for Atlas Copco Screw Air Compressor OEM 2989-0164-00 –  FILME COMPRESSOR

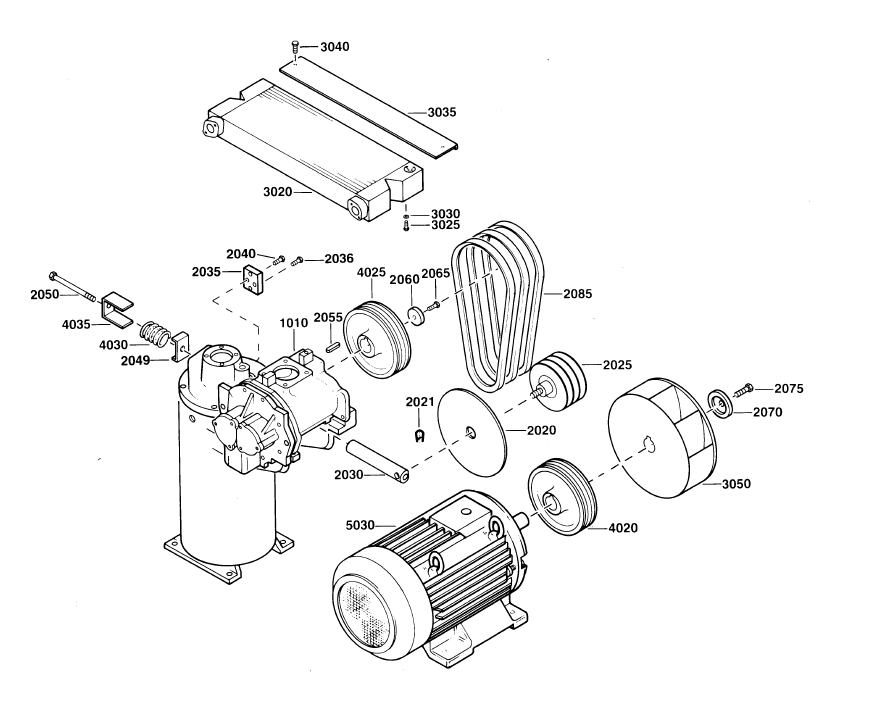

Ref.  Part number   Qty Name      Remarks
1010 2989 0154 00  1  Service stage
-   1613 7513 80   1  Plate
2020 1613 7513 00 •  1  Plate
2021 1503 1056 00 •  AR Seal
2025 1613 7507 80  1  Tensioning pulley
2901 0342 00 •  1  Tension pulley kit
2030 1613 7640 00  1  Shaft
2035 1613 7748 00  1  Flange
2036 0216 1957 48  2  Screw
2040 0147 1323 03  2  Hexagon bolt
2049 1613 7619 00  1  Bracket
2050 0147 1961 67  1  Hexagon bolt
2055 0337 6064 00  1  Parallel key
2060 1513 0036 03  1  Washer
2065 0147 1368 03  1  Hexagon bolt
2070 1613 7745 00  1  Washer
2075 0147 1477 03  1  Hexagon bolt
2085 1613 7638 01  3  V-belt
3020         1  Combi-cooler
1613 7517 00    GA11/50-60Hz
1613 7516 00    GA15/50-60Hz
1613 7515 00    GA18/50-60Hz, GA22/50-60Hz
3025 0147 1322 03  2  Hexagon bolt
3030 0301 2335 00  2  Washer
3035         1  Baffle assembly
1613 7536 80    GA11/50-60Hz, GA15/50-60Hz


Ref.  Part number   Qty Name      Remarks
3040 1619 2766 00  2  Bolt
3050         1  Fan
1613 7747 00    GA11/50-60Hz, GA15/50-60Hz, GA18/60Hz, GA22/60Hz
1613 7746 00    GA18/50Hz, GA22/50Hz
4020  <<< >>>    1  Pulley v-belt   1)
4025  <<< >>>    1  Pulley v-belt   1)
4030  <<< >>>    1  Spring      1)
4035         1  Bracket
1613 7556 01    GA11/50-60Hz, GA15/50-60Hz, GA18/50Hz, GA22/50Hz
1613 7556 02    GA18/60Hz, GA22/60Hz
5030  <<< >>>    1  Motor      1)
1) See motor list / Zie motorlijst / Se motorlista / Siehe Motorliste / Voir liste de moteurs /
Véase lista de motores / Vedere elenco motori / Se motorliste / Ver lista do motor / Se motorskjema
/ Katso moottoriluetteloa


(2989015400)

SKU 2989015400
Brand Atlas Copco
