3002 6190 30 - OIL FILTER KIT - GA 55+, GA 75, GA 75+, GA 90
3002 6190 30 - OIL FILTER KIT - GA 55+, GA 75, GA 75+, GA 90 - Oil Filter 2x (1830 0519 11) Air Filter (1830 0207 58 or 1837 0049 05)

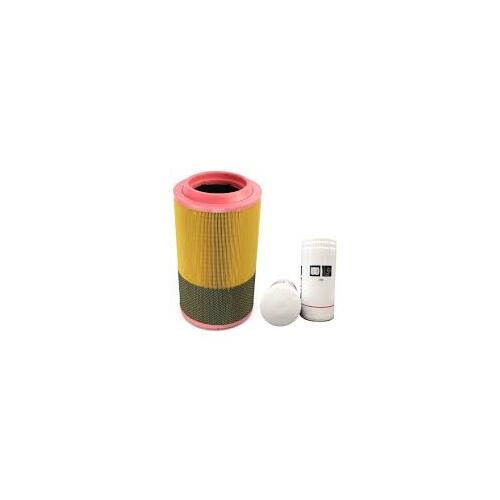

Contains 2x Oil Filter & 1 x Air Filter Replacement
3002 6190 30 - OIL FILTER KIT - GA 55+, GA 75, GA 75+, GA 90
MODEL:GA55PMP21W , MODEL:GA75MP_21W , MODEL:GA75PMP21W , MODEL:GA90MP_21W
.png)

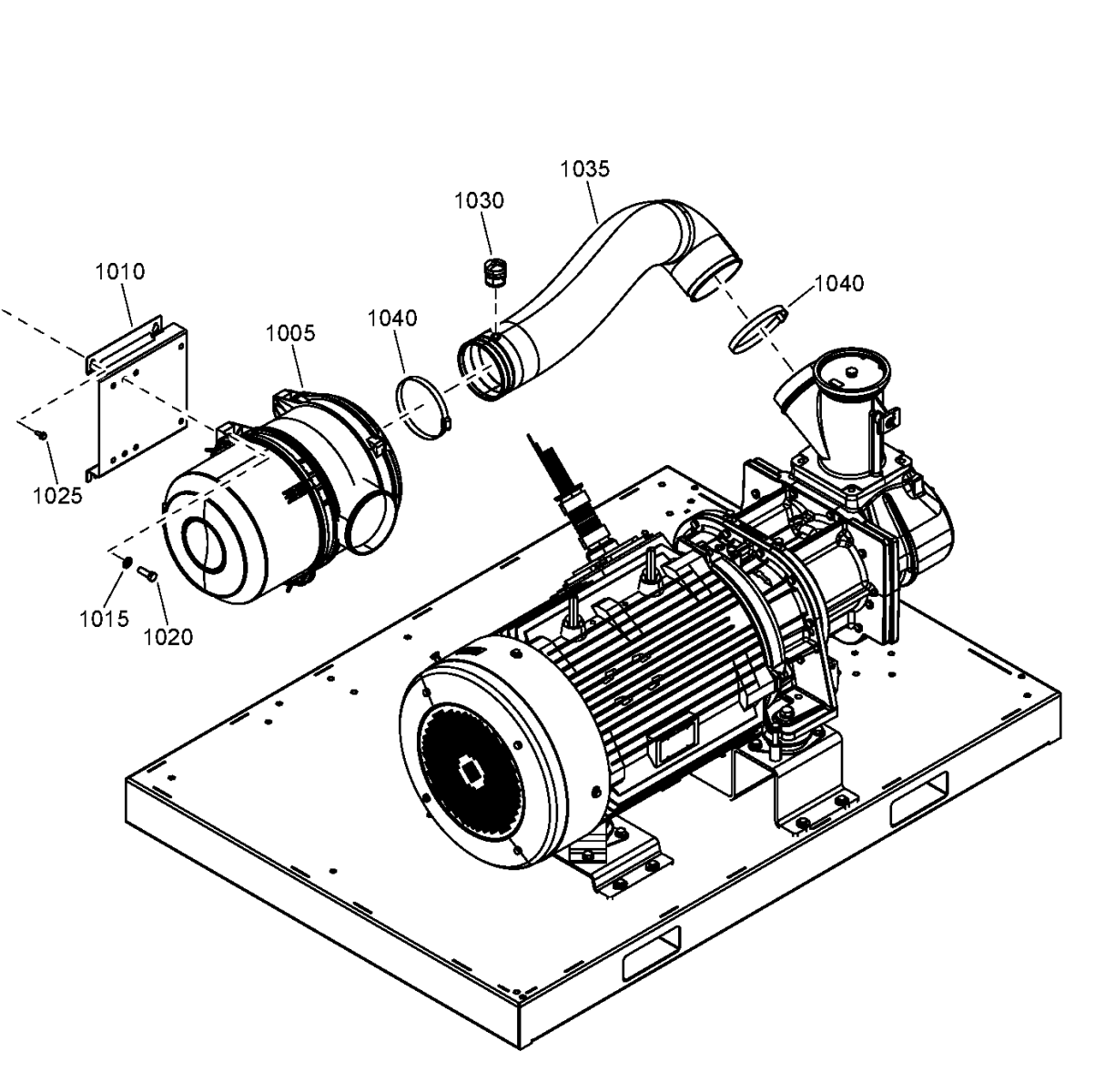

Air filter GA 55, GA 75, GA 90
MODEL:GA55MP_21W , MODEL:GA75MP_21W , MODEL:GA90MP_21W
9829 3530 16 123
Ref Part Number Qty Name Validity
1005 1830 0207 57 1 AIR FILTER ASSEMBLY (03/09/2021 - ...) MODEL:GA75MP_21W , MODEL:GA90MP_21W
1005 1830 0207 60 1 AIR FILTER ASSEMBLY (03/09/2021 - ...) MODEL:GA55MP_21W
1010 1092 9031 99 1 AIR FILTER PLATE (03/09/2021 - ...)
1015 0301 2344 00 2 PLAIN WASHER (03/09/2021 - ...)
1020 0147 1360 03 2 HEXAGON BOLT (03/09/2021 - ...)
1025 0147 1963 08 4 SCREW (03/09/2021 - ...)
1030 1613 7912 01 1 INDICATOR (03/09/2021 - ...)
1035 1092 2073 35 1 AIR INLET HOSE (03/09/2021 - ...) MODEL:GA55MP_21W
1035 1092 9012 15 1 AIRINLET HOSE (03/09/2021 - ...) MODEL:GA75MP_21W , MODEL:GA90MP_21W
1040 0347 6120 00 2 HOSE CLAMP (03/09/2021 - ...) MODEL:GA75MP_21W , MODEL:GA90MP_21W
1040 0347 6119 00 2 HOSE CLAMP (03/09/2021 - ...) MODEL:GA55MP_21W
.png)
.png)

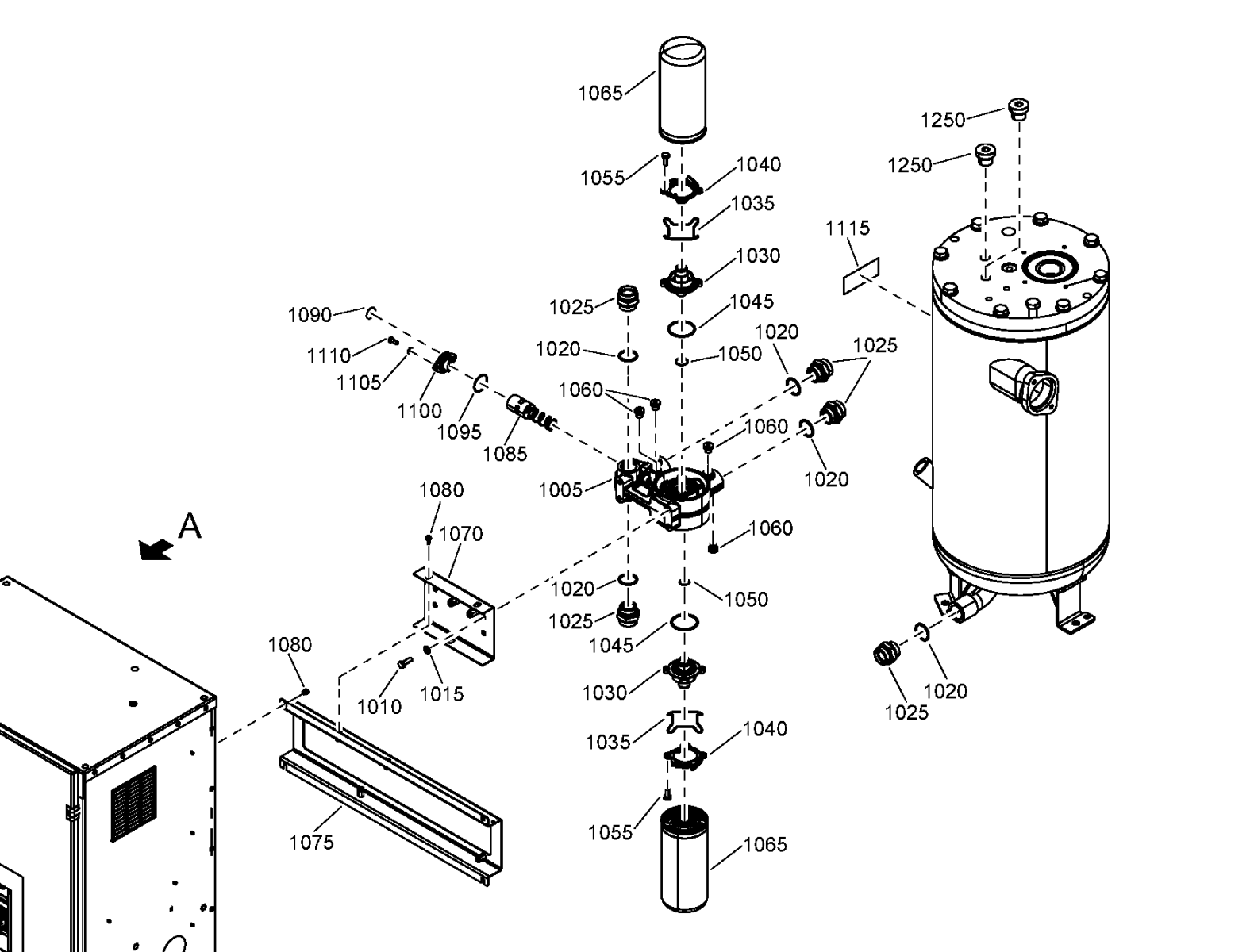

Liquid filtration GA 75, GA 90
(((CAPPRM:ASME , CAPPRM:ML) + (MOVOL:230V , MOVOL:460V) , CAPPRM:ASME + MOVOL:380V , CAPPRM:MHLW + MOVOL:460V) +
(PRESS:10.8BAR , PRESS:12.5BAR , PRESS:7.4BAR , PRESS:9.1BAR) , (CAPPRM:CHN + MOVOL:380V , MOVOL:400V + (CAPPRM:AS1210 ,
CAPPRM:MHLW , CAPPRM:ML , CAPPRM:MOM)) + (PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR , PRESS:8.5BAR)) + (MODEL:GA75MP_21W ,
Ref Part Number Qty Name Validity R.
1005 1622 9094 30 1 OIL FILTER HOUSING (03/09/2021 - 28/09/2021) CAPPRM:CHN + MOVOL:380V
+ (MODEL:GA75MP_21W , MODEL:GA90MP_21W) +
(PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR ,
PRESS:8.5BAR)
(29/09/2021 - ...)
1010 0147 1321 03 4 BOLT (03/09/2021 - 28/09/2021) CAPPRM:CHN + MOVOL:380V
+ (MODEL:GA75MP_21W , MODEL:GA90MP_21W) +
(PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR ,
PRESS:8.5BAR)
(29/09/2021 - ...)
1015 0301 2335 00 4 PLAIN WASHER (03/09/2021 - 28/09/2021) CAPPRM:CHN + MOVOL:380V
+ (MODEL:GA75MP_21W , MODEL:GA90MP_21W) +
(PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR ,
PRESS:8.5BAR)
(29/09/2021 - ...)
1020 4 O-RING (19/10/2021 - ...)
Remarks: O-RING - 0663 3130 00
Service kits: 3002 6029 60 - PREVENTIVE MAINTENANCE KIT - GA 75, GA 90
1020 0663 3130 00 5 O-RING (03/09/2021 - 28/09/2021) CAPPRM:CHN + MOVOL:380V
+ (MODEL:GA75MP_21W , MODEL:GA90MP_21W) +
(PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR ,
PRESS:8.5BAR)
(29/09/2021 - 18/10/2021)
1025 1092 9028 23 4 NIPPLE (19/10/2021 - ...)
1025 1092 9028 23 5 NIPPLE (03/09/2021 - 28/09/2021) CAPPRM:CHN + MOVOL:380V
+ (MODEL:GA75MP_21W , MODEL:GA90MP_21W) +
(PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR ,
PRESS:8.5BAR)
(29/09/2021 - 18/10/2021)
1030 1630 1475 00 2 BAYONET ADAPTER (03/09/2021 - 28/09/2021) CAPPRM:CHN + MOVOL:380V
+ (MODEL:GA75MP_21W , MODEL:GA90MP_21W) +
(PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR ,
PRESS:8.5BAR)
(29/09/2021 - ...)
1035 1630 1475 03 2 SPRING COMPRESSION (03/09/2021 - 28/09/2021) CAPPRM:CHN + MOVOL:380V
+ (MODEL:GA75MP_21W , MODEL:GA90MP_21W) +
(PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR ,
PRESS:8.5BAR)
(29/09/2021 - ...)
1040 1630 1475 02 2 ADAPTER GEARBOX (03/09/2021 - 28/09/2021) CAPPRM:CHN + MOVOL:380V
+ (MODEL:GA75MP_21W , MODEL:GA90MP_21W) +
(PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR ,
PRESS:8.5BAR)
(29/09/2021 - ...)
1045 0663 7134 00 2 O-RING (03/09/2021 - 28/09/2021) CAPPRM:CHN + MOVOL:380V
+ (MODEL:GA75MP_21W , MODEL:GA90MP_21W) +
(PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR ,
PRESS:8.5BAR)
(29/09/2021 - ...)
1050 0663 7127 00 2 O-RING (03/09/2021 - 28/09/2021) CAPPRM:CHN + MOVOL:380V
+ (MODEL:GA75MP_21W , MODEL:GA90MP_21W) +
(PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR ,
PRESS:8.5BAR)
(29/09/2021 - ...)
1055 0215 0003 73 8 SCREW (03/09/2021 - 28/09/2021) CAPPRM:CHN + MOVOL:380V
+ (MODEL:GA75MP_21W , MODEL:GA90MP_21W) +
(PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR ,
PRESS:8.5BAR)
(29/09/2021 - ...)
1060 4 PLUG (03/09/2021 - 28/09/2021) CAPPRM:CHN + MOVOL:380V
+ (MODEL:GA75MP_21W , MODEL:GA90MP_21W) +
(PRESS:10.5BAR , PRESS:13BAR , PRESS:7.5BAR ,
PRESS:8.5BAR)
(29/09/2021 - ...)
(3002619030)
| SKU | 3002619030 |
| Brand | Atlas Copco |
| Shipping Weight | 6.0000kg |
