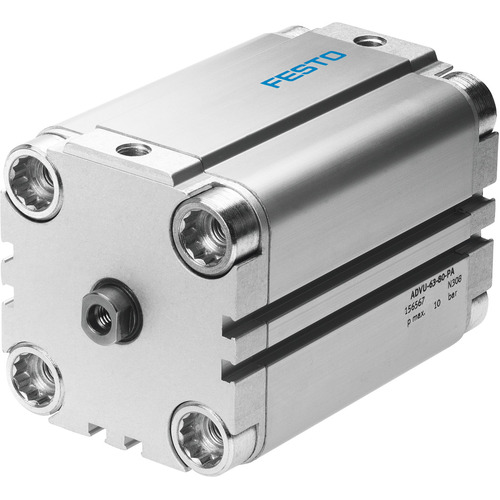

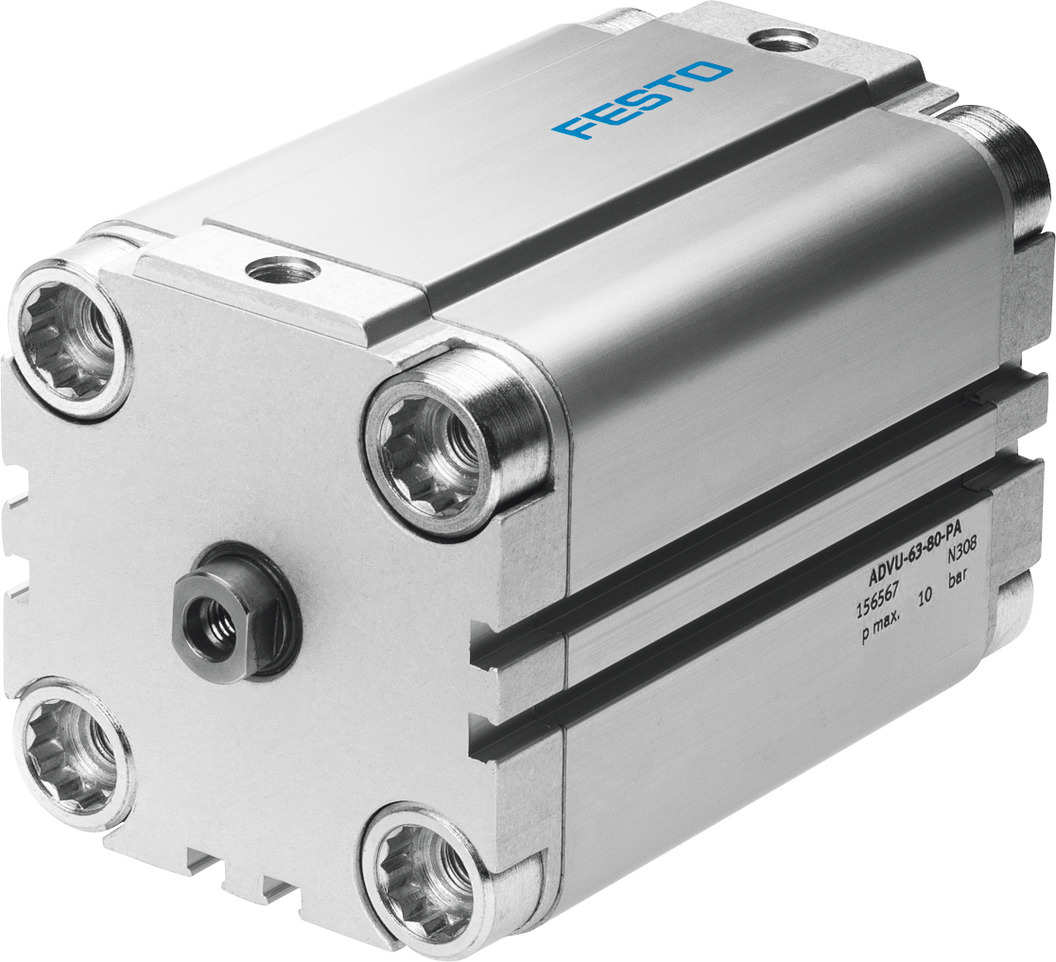

ADVU-63-80-P-A Compact cylinder FESTO

ADVU-63-80-P-A

$800.74
RRP $896.80
SAVE $96.06 (11%)


Compact cylinder

ADVU-63-80-P-A

156567



GTIN: 4052568118310

Downloads



ADVU_EN.PDF

Technical data

Links

Spare parts

Mode of operation Double-acting

Piston diameter 63 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 1870 N

Stroke 80 mm

Cushioning Elastic cushioning rings/plates at both ends

Compact cylinder

Compact cylinder

Technical Data

  • Stroke 80 mm
  • Piston diameter63 mm
  • Cushioning Elastic cushioning rings/plates at both ends
  • Mounting position optional
  • Mode of operation Double-acting
  • Piston-rod end Female thread
  • Design Piston Piston rod
  • Position detection Via proximity switch

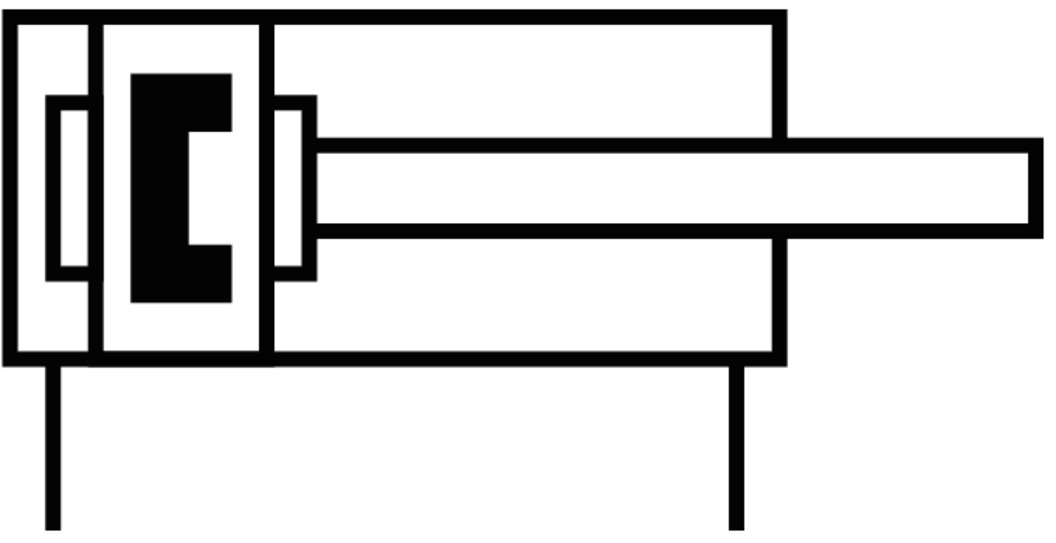

  • Symbol 00991217
  • Variants Piston rod at one end
  • Operating pressure 0.06 MPa ... 1 MPa
  • Operating pressure 0.6 bar ... 10 bar
  • Operating pressure 8.7 psi ... 145 psi
  • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Ambient temperature -20 °C ... 80 °C
  • Impact energy in end positions 0.7 J
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 1750 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 1870 N
  • Moving mass for 0 mm stroke 134 g
  • Additional moving mass per 10 mm stroke 16 g
  • Basic weight for 0 mm stroke 1059 g
  • Additional weight per 10 mm stroke 107 g
  • Type of mounting Either: With through-hole With accessories
  • Pneumatic connection G1/8
  • Material collar screwsGalvanised steel
  • Material cover Wrought aluminium alloy
  • Material dynamic seals NBR TPE-U(PU)
  • Material piston rod High-alloy steel
  • Material cylinder barrel Wrought aluminium alloy

(156567)

SKU 156567
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
