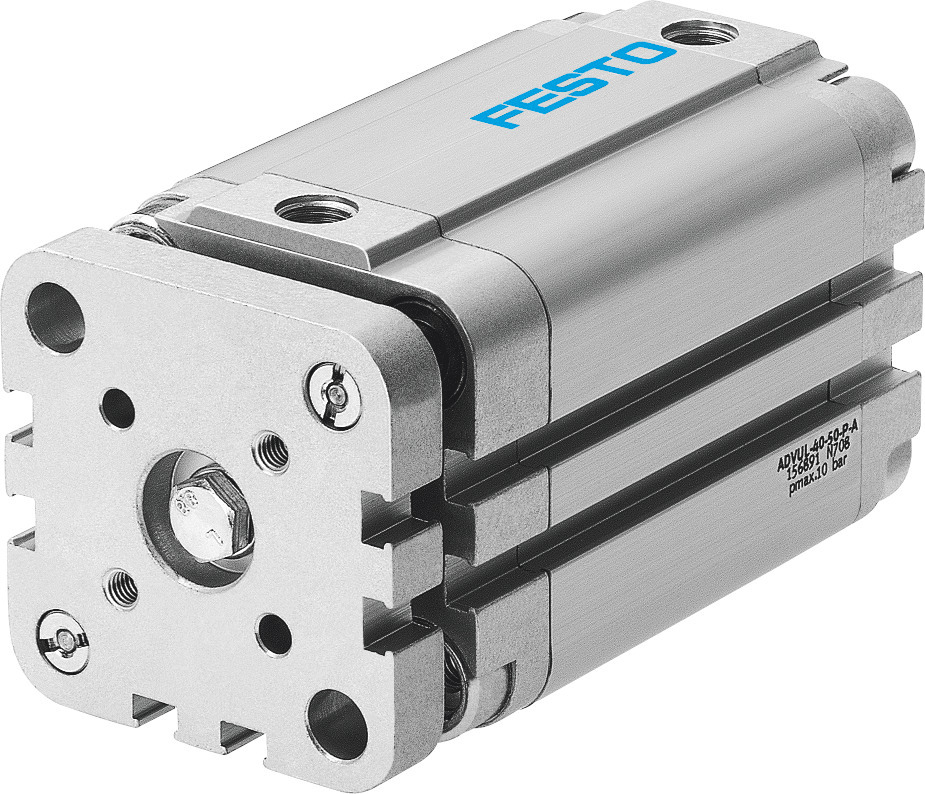

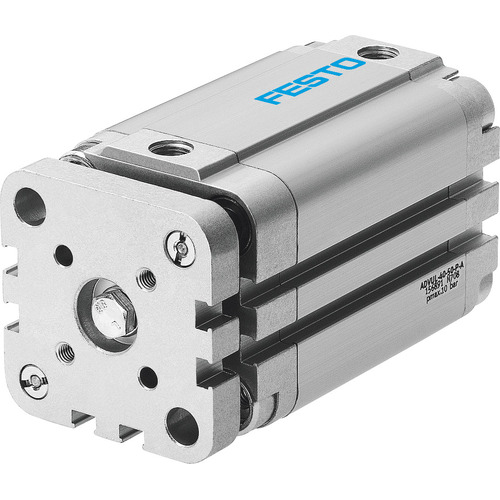

ADVUL-40-60-P-A Compact cylinder

ADVUL-40-60-P-A

$777.89
RRP $871.20
SAVE $93.31 (11%)
In Stock


Compact cylinder

ADVUL-40-60-P-A

156892

GTIN: 4052568121433

Downloads



ADVUL_EN.PDF

Technical data

Links

Spare parts



Piston diameter 40 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 754 N

Stroke 60 mm

Cushioning Elastic cushioning rings/plates at both ends

Position detection Via proximity switch

Technical Data

  • Stroke60 mm
  • Piston diameter40 mm
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionoptional
  • DesignPiston Piston rod
  • Position detectionVia proximity switch

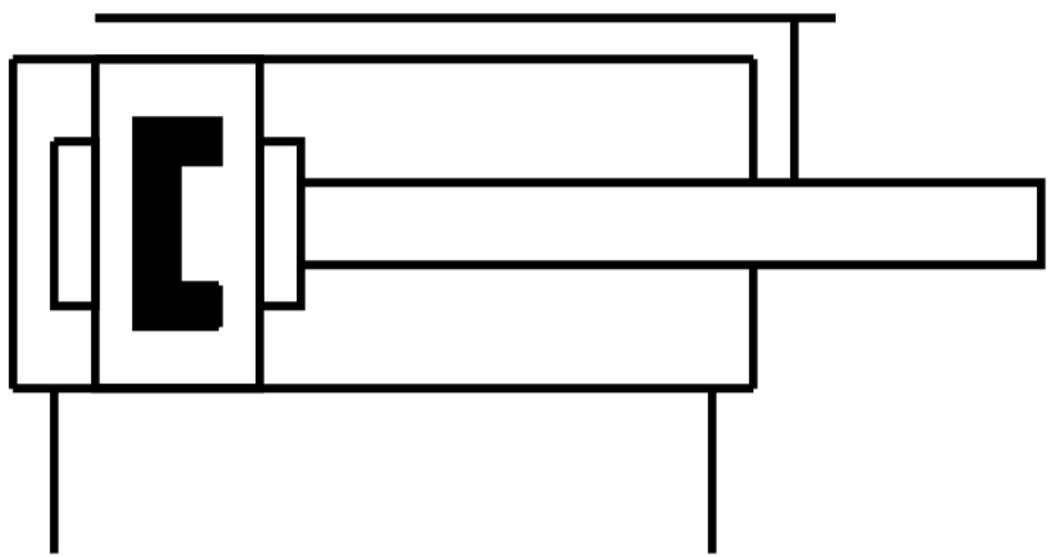

  • Symbol00991737
  • VariantsPiston rod at one end
  • Protection against torque/guideGuide rod with yoke
  • Operating pressure0.1 MPa ... 1 MPa
  • Operating pressure1 bar ... 10 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions0.52 J
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke686 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke754 N
  • Type of mountingEither: With through-hole With accessories
  • Pneumatic connectionG1/8
  • Material collar screwsGalvanised steel
  • Material coverWrought aluminium alloy
  • Material dynamic sealsNBR TPE-U(PU)
  • Material piston rodHigh-alloy steel
  • Material cylinder barrelWrought aluminium alloy

Compact cylinder

(156892)

SKU 156892
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
