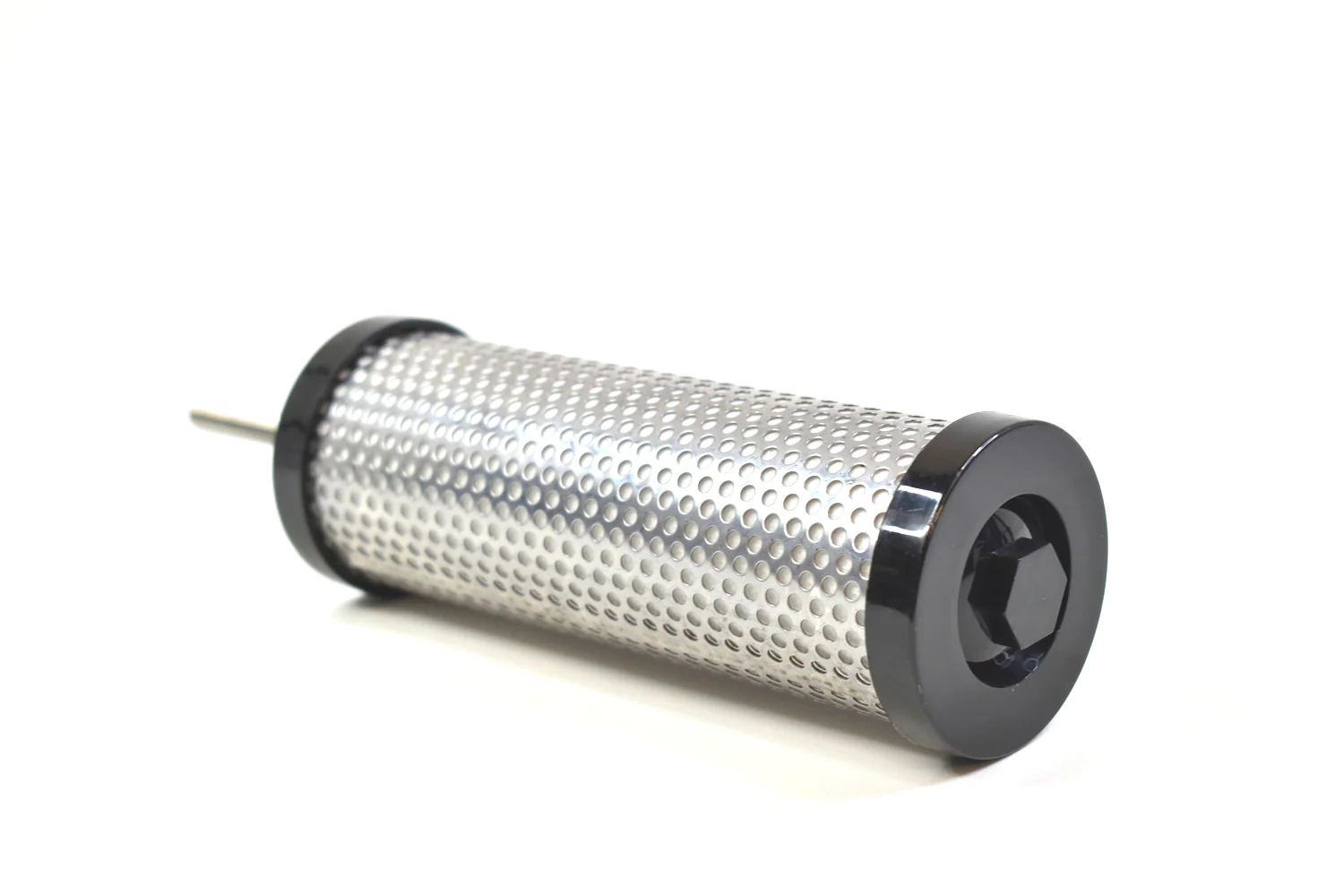

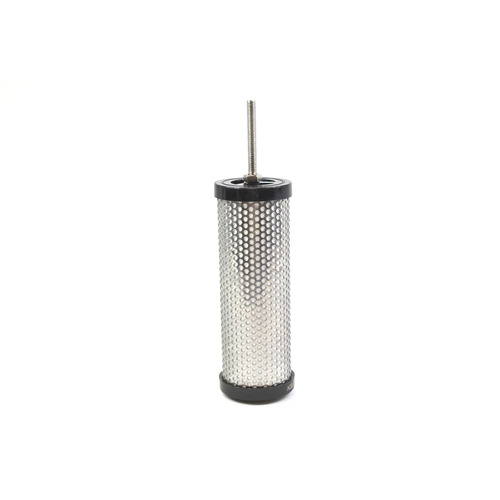

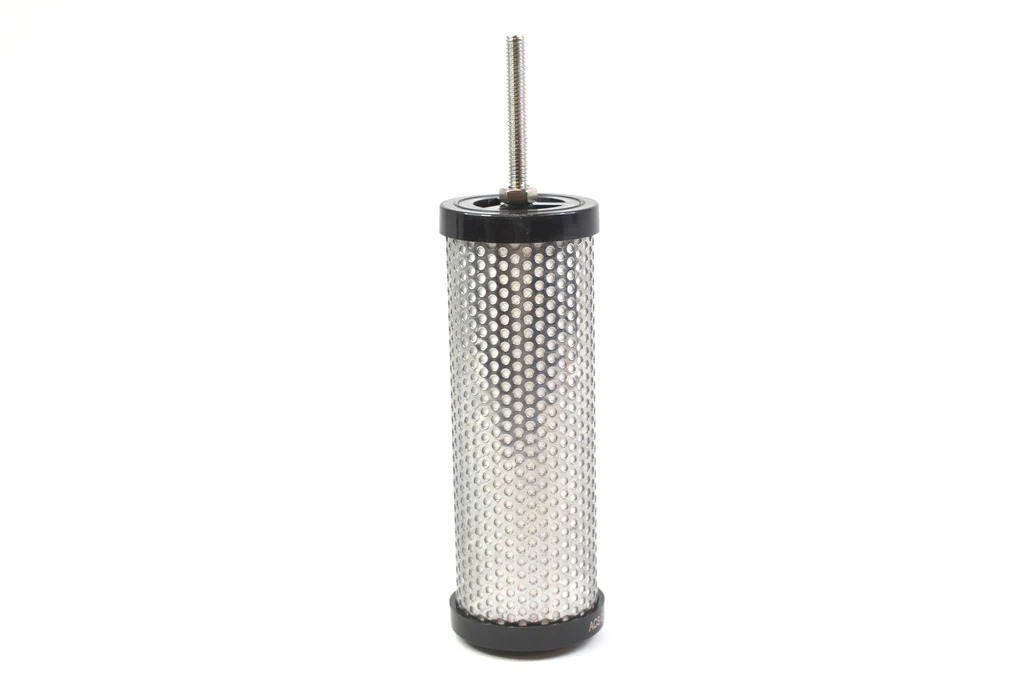

CE9-36 FS Curtis Repacement Filter

FSCE9-36

$420.00


CE9-36 FS Curtis Repacement Filter

CF9 Filtration Grade 3 µm (micron)     CF7 Filtration Grade 1 µm (micron)      CF5 Filtration Grade 0.01 µm (micron)     CF1 Filtration Grade Activated Carbon

Housing # Port Size Flow CFM Element #
CF9-12 1/2" 3/8" 20 CE9-12
CF9-16 1/2" 3/8" 35 CE9-16
CF9-20 1/2" 3/8" 60 CE9-20
CF9-24 3/4" 1" 100 CE9-24
CF9-28 3/4" 1" 170 CE9-28
CF9-32 1" 1 1/2" 250 CE9-32
CF9-36 1" - 11/2" 375 CE9-36
CF9-40 2" 2 1/2" 485 CE9-40
CF9-44 2 1/2" 625 CE9-44
CF9-48 2 1/2" 780 CE9-48



Housing # Port Size Flow CFM Element #
CF7-12 1/2" 3/8" 20 CE7-12
CF7-16 1/2" 3/8" 35 CE7-16
CF7-20 1/2" 3/8" 60 CE7-20
CF7-24 3/4" 1" 100 CE7-24
CF7-28 3/4" 1" 170 CE7-28
CF7-32 1" 11/2" 250 CE7-32
CF7-36 1" - 11/2" 375 CE7-36
CF7-40 2" 2 1/2" 485 CE7-40
CF7-44 2 1/2" 625 CE7-44
CF7-48 2 1/2" 780 CE7-48



Housing # Port Size Flow CF Element #
CF5-12 1/2" 3/8" 20 CE5-12
CF5-16 1/2" 3/8" 35 CE5-16
CF5-20 1/2" 3/8" 60 CE5-20
CF5-24 3/4" 1" 100 CE5-24
CF5-28 3/4" 1" 170 CE5-28
CF5-32 1" 11/2" 250 CE5-32
CF5-36 1" - 11/2" 375 CE5-36
CF5-40 2" 2 1/2" 485 CE5-40
CF5-44 2 1/2" 625 CE5-44
CF5-48 2 1/2" 780 CE5-48



Housing # Port Size Flow CF Element #
CF1-12 1/2" 3/8" 20 CE1-12
CF1-16 1/2" 3/8" 35 CE1-16
CF1-20 1/2" 3/8" 60 CE1-20
CF1-24 3/4" 1" 100 CE1-24
CF1-28 3/4" 1" 170 CE1-28
CF1-32 1" 11/2" 250 CE1-32
CF1-36 1" - 11/2" 375 CE1-36
CF1-40 2" 2 1/2" 485 CE1-40
CF1-44 2 1/2" 625 CE1-44
CF1-48 2 1/2" 780 CE1-48

(CE9-36)

SKU CE9-36
Brand FS Curtis C Series
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.080m
