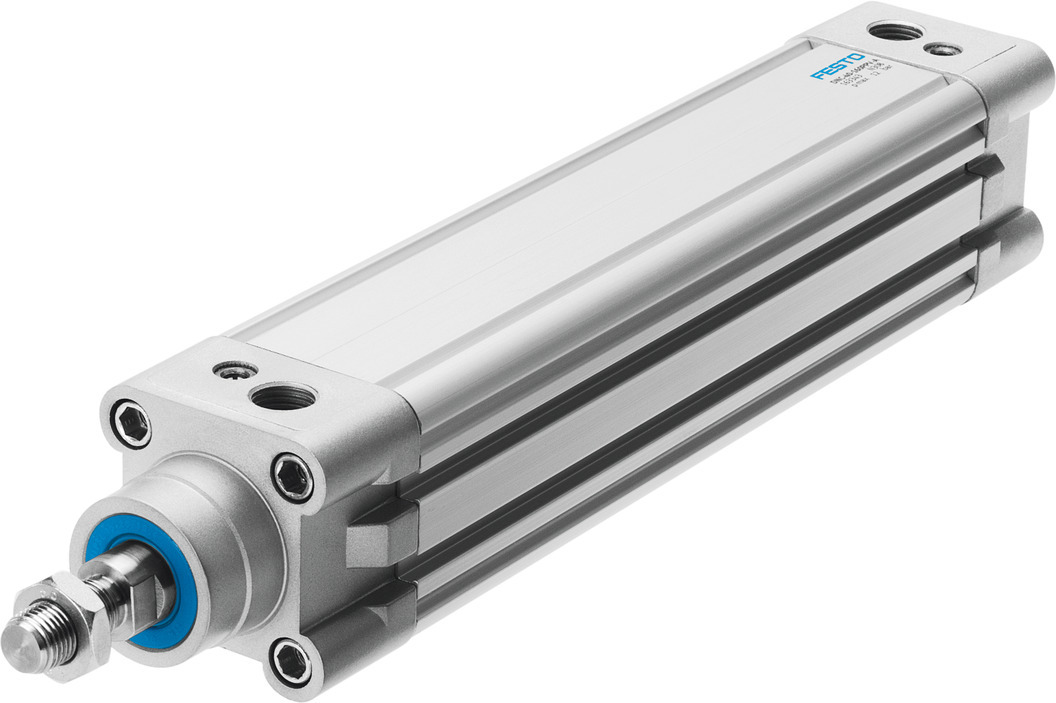

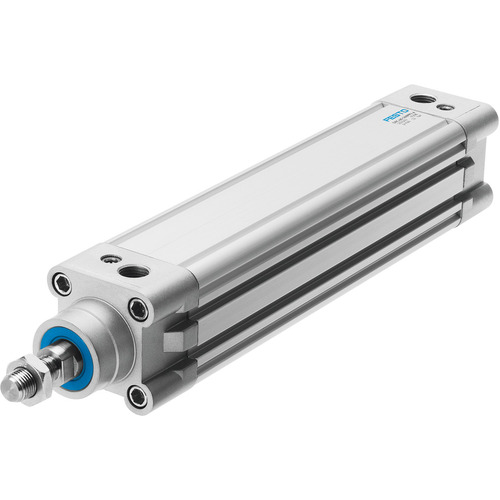

DNC-50-125-PPV-A standards-based cylinder

DNC-50-125-PPV-A

$577.08
RRP $646.30
SAVE $69.22 (11%)


ISO cylinder

DNC-50-125-PPV-A

163374

GTIN: 4052568134044

SERVICE KIT LINK > HERE

Downloads

DNC_EN.PDF

Technical data

Links

Spare parts

Mode of operation Double-acting

Piston diameter 50 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 1178 N

Stroke 125 mm

Cushioning Pneumatic cushioning, adjustable at both ends

ISO cylinder

Technical Data

  • Stroke 125 mm
  • Piston diameter50 mm
  • Piston rod thread M16x1.5
  • Cushioning Pneumatic cushioning, adjustable at both ends
  • Mounting position optional
  • Conforms to standard ISO 15552
  • Piston-rod end Male thread
  • DesignPiston Piston rod Profile barrel
  • Position detection Via proximity switch

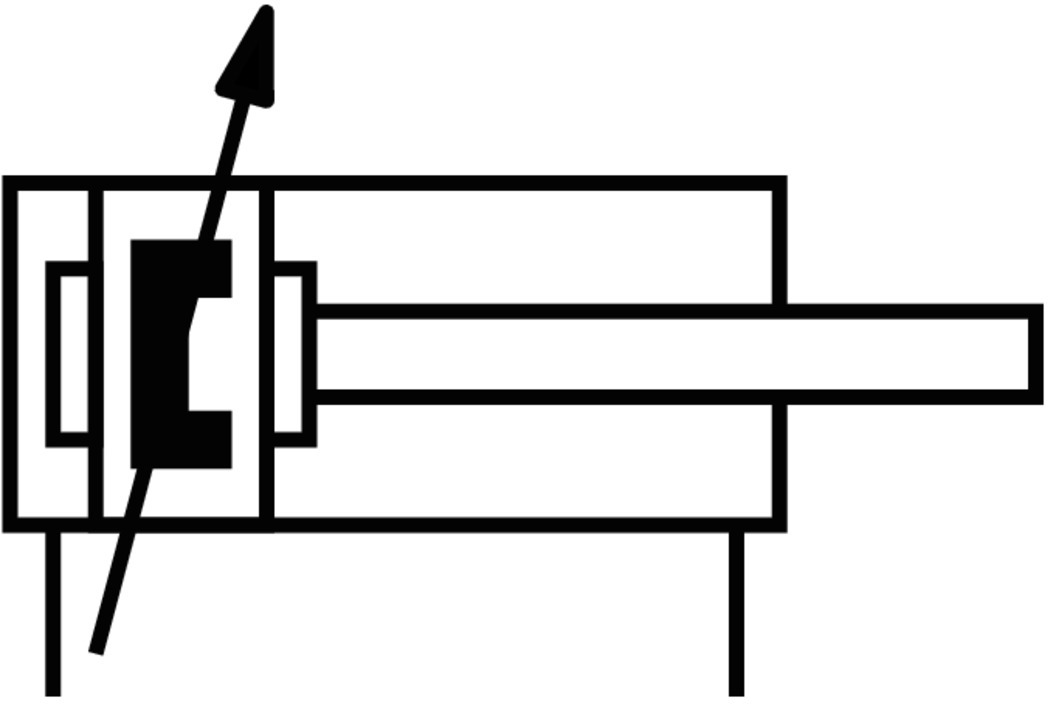

  • Symbol 00991235
  • Variants Piston rod at one end
  • Operating pressure 0.06 MPa ... 1.2 MPa
  • Operating pressure 0.6 bar ... 12 bar
  • Mode of operation Double-acting
  • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Ambient temperature -20 °C ... 80 °C
  • Impact energy in end positions 0.2 J
  • Cushioning length22 mm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke990 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1178 N
  • Moving mass for 0 mm stroke538 g
  • Additional moving mass per 10 mm stroke25 g
  • Basic weight for 0 mm stroke1260 g
  • Additional weight per 10 mm stroke 64 g
  • Type of mounting Via female thread With accessories
  • Pneumatic connection G1/4
  • Note on materials RoHS-compliant
  • Material cover Die-cast aluminium Coated
  • Material seals TPE-U(PU)
  • Material piston rodHigh-alloy steel
  • Material cylinder barrelWrought aluminium alloy Smooth anodised

(163374)

SKU 163374
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
