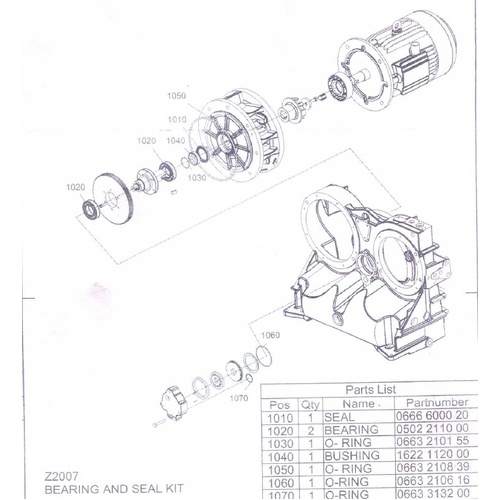

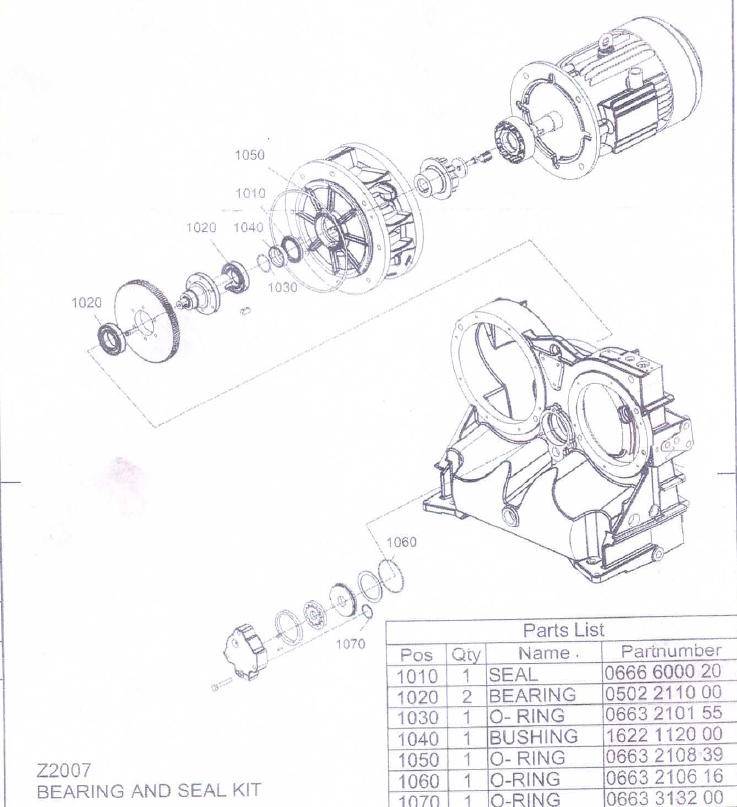

2901 1112 00 DRIVE SHAFT BEAR KIT

DRIVE SHAFT BEAR KIT

Illustraion only

2901 1112 00 - DRIVE SHAFT BEAR. KIT
Qty  Name
    2  BALL BEARING
     1  O-RING
     1  O-RING
     1  O-RING
    1  RADIAL LIP SEAL
     1  BUSHING
     1  O-RING
     1  O-RING

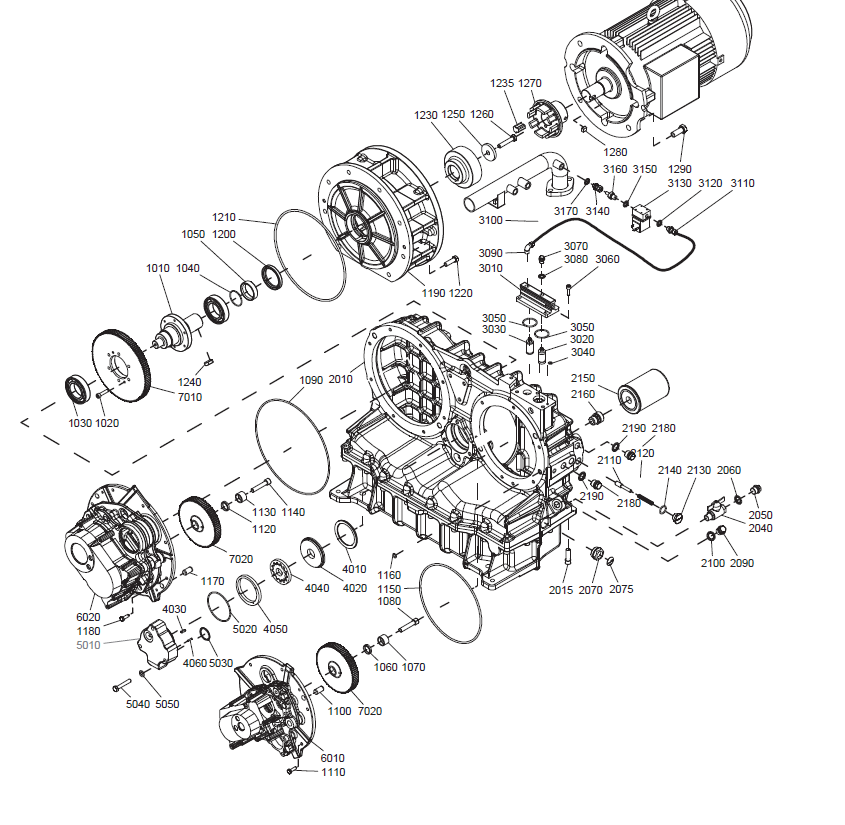

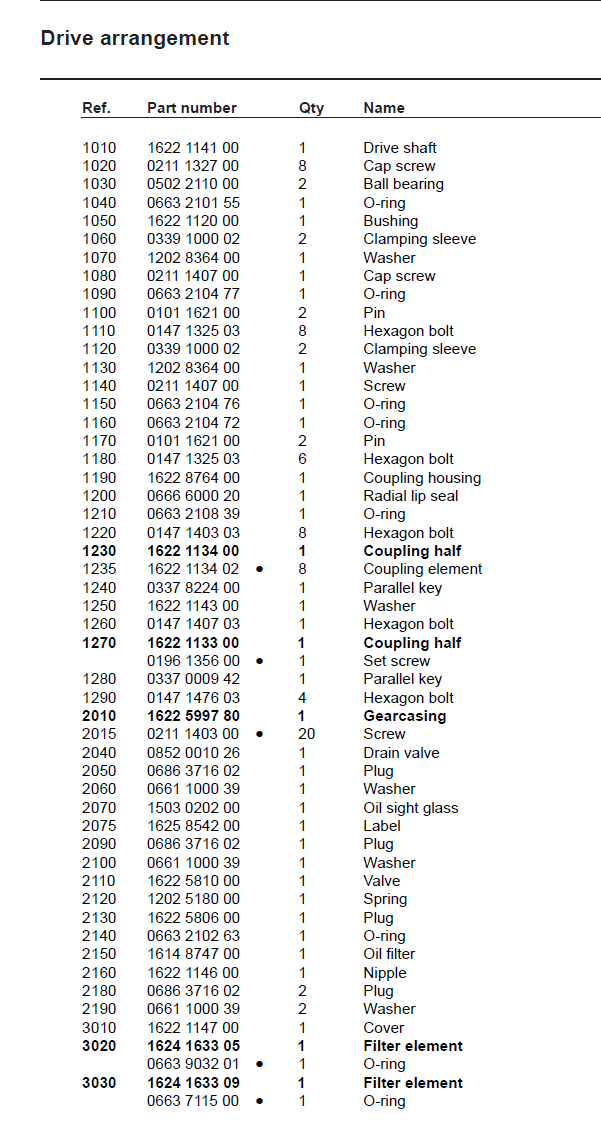

1 010 1622 1141 00 1 Drive shaft
1 020 0211 1327 00 8 Cap screw
1 030 0502 2110 00 2 Ball bearing
1 040 0663 2101 55 1 O-ring
1 050 1622 1120 00 1 Bushing
1 060 0339 1000 02 2 Clamping sleeve
1 070 1202 8364 00 1 Washer
1 080 0211 1407 00 1 Cap screw
1 090 0663 2104 77 1 O-ring
1 100 0101 1621 00 2 Pin
1 110 0147 1325 03 8 Hexagon bolt
1 120 0339 1000 02 2 Clamping sleeve
1 130 1202 8364 00 1 Washer
1 140 0211 1407 00 1 Screw
1 150 0663 2104 76 1 O-ring
1 160 0663 2104 72 1 O-ring
1 170 0101 1621 00 2 Pin
1 180 0147 1325 03 6 Hexagon bolt
1 190 1622 8764 00 1 Coupling housing
1 200 0666 6000 20 1 Radial lip seal
1 210 0663 2108 39 1 O-ring
1 220 0147 1403 03 8 Hexagon bolt
1 230 1622 1134 00 1 Coupling half
1 235 1622 1134 02 • 8 Coupling element
1 240 0337 8224 00 1 Parallel key
1 250 1622 1143 00 1 Washer
1 260 0147 1407 03 1 Hexagon bolt
1 270 1622 1133 00 1 Coupling half
0196 1356 00 • 1 Set screw
1 280 0337 0009 42 1 Parallel key
1 290 0147 1476 03 4 Hexagon bolt
2 010 1622 5997 80 1 Gearcasing
2 015 0211 1403 00 • 20 Screw
2 040 0852 0010 26 1 Drain valve
2 050 0686 3716 02 1 Plug
2 060 0661 1000 39 1 Washer
2 070 1503 0202 00 1 Oil sight glass
2 075 1625 8542 00 1 Label
2 090 0686 3716 02 1 Plug
2 100 0661 1000 39 1 Washer
2 110 1622 5810 00 1 Valve
2 120 1202 5180 00 1 Spring
2 130 1622 5806 00 1 Plug
2 140 0663 2102 63 1 O-ring
2 150 1614 8747 00 1 Oil filter
2 160 1622 1146 00 1 Nipple
2 180 0686 3716 02 2 Plug
2 190 0661 1000 39 2 Washer
3 010 1622 1147 00 1 Cover
3 020 1624 1633 05 1 Filter element
0663 9032 01 • 1 O-ring
3 030 1624 1633 09 1 Filter element
0663 7115 00 • 1 O-ring
