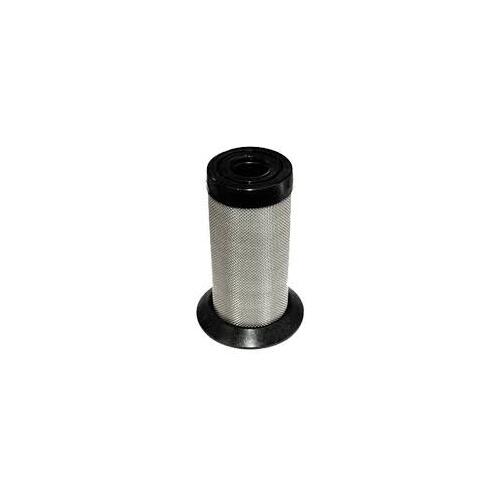

E5-32-IN Hankison Replacement

Hankison Series Filter Element

Hankison series filter elements have the following features for customers to choose from according to their requirements.

• 5 filtration grades: E1, E3, E5, E7 and E9
• Materials: glass fiber and activated carbon.
• Filtration rating: 0.01~3μm
• Oil content: 0.001~5ppm

Applications

• Metallurgical industry
• Powered ventilation system
• Marine purification

Specifications

Grade	E1 oil & odor removal filter element	E3 ultra-high efficiency oil removal filter element	E5 high-efficiency oil removal filter element	E7 intake pipe filter element	E9 separation filter element
Flow Rate (NM³/min.)
0.57	E1-12	E3-12	E5-12	E7-12	E9-12
1	E1-16	E3-16	E5-16	E7-16	E9-16
1.72	E1-20	E3-20	E5-20	E7-20	E9-20
2.9	E1-24	E3-24	E5-24	E7-24	E9-24
4.9	E1-28	E3-28	E5-28	E7-28	E9-28
7.2	E1-32	E3-32	E5-32	E7-32	E9-32
11	E1-36	E3-36	E5-36	E7-36	E9-36
14	E1-40	E3-40	E5-40	E7-40	E9-40
18	E1-44	E3-44	E5-44	E7-44	E9-44
22	E1-48	E3-48	E5-48	E7-48	E9-48

Filtration Rating (μm)	Oil Content (ppm)
E1:0.01	0.001
E3:0.01	0.001
E5:0.01	0.01
E7:1	1
E9:3	5

Old Hankison Series

Grade	C	T	A	H
Flow Rate (NM³/min.)
0.5	07,4442-01	0731-4	0713-3	0715-3
2-3	07,4444-01	0731-5	0713-5	0715-5
6	07,4445-01	0731-6	0713-6	0715-6
8	07,4446-01	0731-7	0713-7	0715-7
10-12	07,444-01	0731-8	0713-11	0715-11
15	07,4447-01	0731-8	0713-11（2/pcs）	0715-11（2/pcs）
20	07,4447-01（2/pcs）	0731-9	0713-11（3/pcs）	0715-11（3/pcs）

Filtration Rating (μm)	Oil Content (ppm)
C：3	5
T：1	1
A：0.01	0.01
H:0.01	0.001

Features

E9 filter element

• Suitable for the filtration of large liquid amounts and 3μm particles with a maximum residual oil content of 5ppm.
• Two-stage filtration:
  First stage: Two stainless steel orifice tubes for 10μm mechanical separation
  Second stage: In-depth fiber media captures solid and liquid particles to 3μm

E7 filter element

• Suitable for the filtration of liquid water, oil and 1μm solid particles with a maximum residual oil content of 1.0ppm
• Two-stage filtration:
  First stage: Alternate fiber media and screen for large particles
  Second stage: Multiple layers of bonded and blended fiber media for fine coalescence
• Used for:
  Before E5 filtration: Pretreatment
  After freeze dryer/adsorption dryer: Further improvement of air quality

E5 filter element

• Suitable for removing water, oil vapor and other contaminants with the filtration of 0.01μm or larger solid particles with a maximum residual oil content of 0.01ppm. Almost all water, dust and oil will be removed.
• Two-stage filtration:
  First stage: Multiple layers of fiber medium and strainer for large particles
  Second stage: Multiple layers of bonding fiber medium for tiny condensates
• Used for:
  Before E3 filtration/adsorption dryer: Protection
  After freeze dryer: Ensuring the air is free of oil

E3 filter element

• Suitable for gathering tiny water and oil mist particles and filtration of 0.01μm or larger solid particles with a maximum residual oil content of 0.001ppm
• Two-stage filtration:
  First stage: Pre-filtration and air diffusion
  Second stage: Multiple layers of bonded and blended fiber media for fine coalescence
• Used for:
  Before E1 filtration/adsorption dryer: Protection
  After freeze dryer: Ensuring air free of oil

E1 filter element

• Suitable for the removal of oil and hydrocarbon vapor adsorbed by activated carbon with a maximum filtration rating of 0.01μm and maximum residual oil content of 0.003ppm.
• Two-stage filtration:
  First stage: Fine activated carbon stabilized layer suitable for most oil mist
  Second stage: Multiple layers of fiber medium bonding micro fine activated carbon powder for removal of residual steam, providing high quality air for high demand industries such as food, air supply, and sterile packaging
• Used for:
  Last stage of filtration to ensure air is free of water, dust, oil, and odors.

Hualing has been specializing in industrial filtration since 1992, we provide our customers with industrial filtration equipment to fit their compressed air filtration needs. Our filtering systems with filter elements are applicable to a wide range of general industry, electronics, chemical, machinery, textile, and aviation industry applications. If you are looking for one-stop air filter supplier, we are a specialist presents you appropriate and effective filtration solutions for your compressed air applications.
