FTZ250 Friulair Replacement Filter

FTZ250

$540.00


Z Filtration Grade Activated Carbon

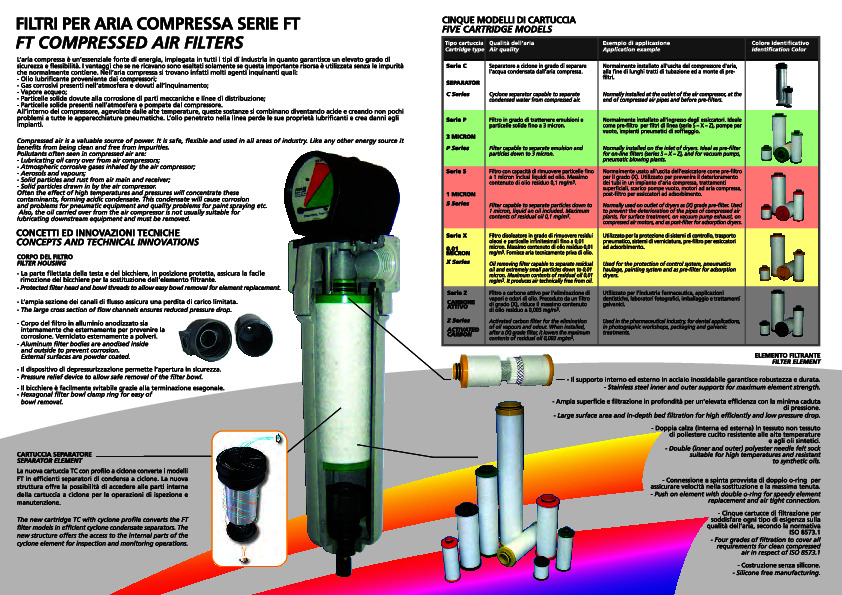

Filtration grade Air quality Application example

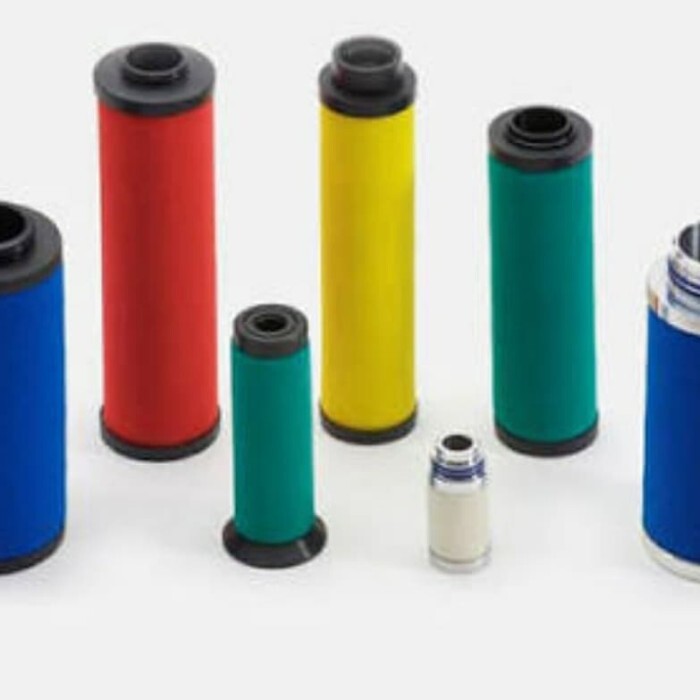

P SERIES - 3 MICRONS
green


Filter capable to separate emulsion and particles down to 3 micron. Normally installed on the inlet of dryers. Ideal as pre-filter for on-line filters (series S – X – Z), and for vacuum pumps, pneumatic blowing plants.
SERIE S SERIES - 1 MICRONS
red


Filter capable to separate particles down to 1 micron, liquid an oil included. Maximum contents of residual oil 0,1 mg/m3. Normally used on outlet of dryers as (X) grade pre-filter. Used to prevent the deterioration of the pipes of compressed air plants, for surface treatment, on vacuum pump exhaust, on compressed air motors, and as post-filter for adsorption dryers.
SERIES - 0.01 MICRONS
yellow


Oil removing filter capable to separate residual oil and extremely small particles down to 0,01 micron. Maximum contents of residual oil 0,01 mg/m3. It produces air technically free from oil. Used for the protection of control system, pneumatics haulage, painting system and as pre-filter for adsorption dryers.
SERIES - ACTIVATED CARBON
black


Activated carbon filter for the elimination of oil vapours and odour. When installed, after a (X) grade filter, it lowers the maximum contents of residual oil 0,003 mg/m3. Used in the pharmaceutical industry, for dental applications, in photographic workshops,  packaging and galvanic treatments.

(FZ250)

SKU FZ250
Brand Pilot / Friul Air
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.080m

Be The First To Review This Product!

Help other Screw Compressor Spares users shop smarter by writing reviews for products you have purchased.

Write a product review
