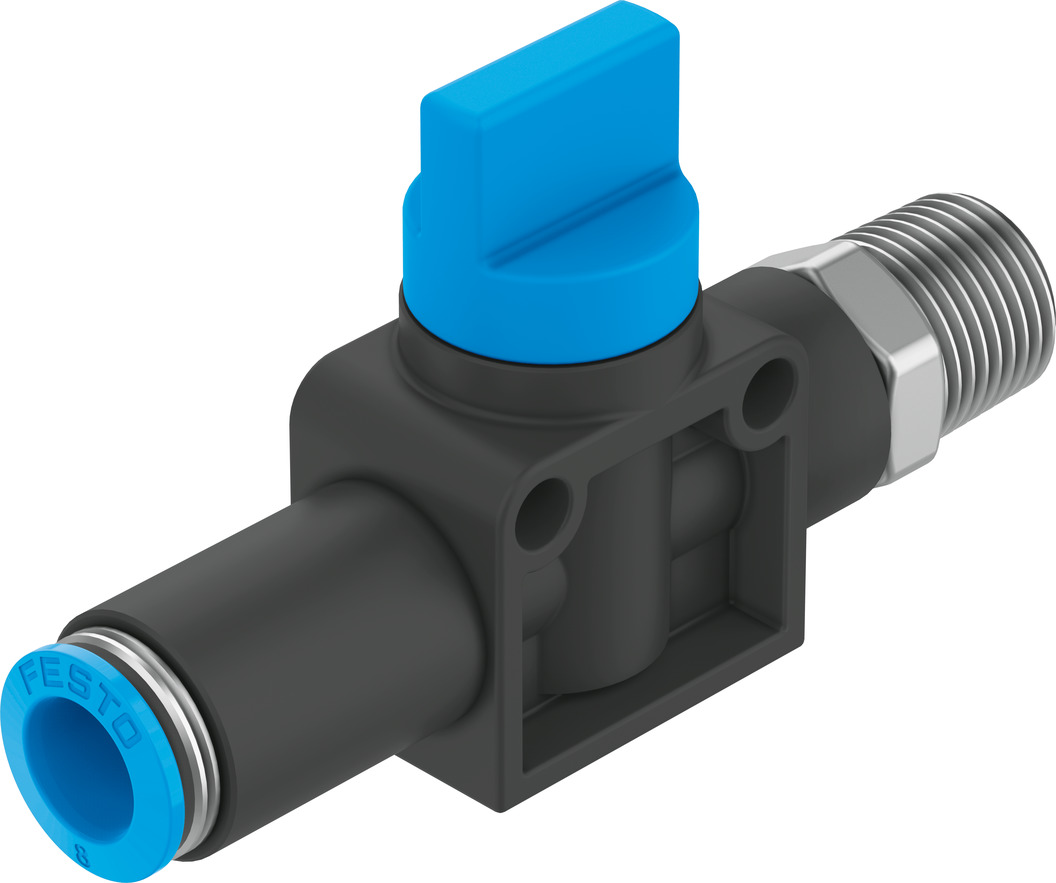

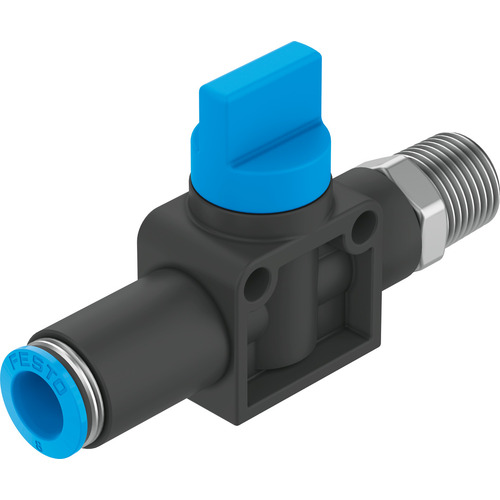

HE-3-1/8-QS-6 Shut-off valve

HE-3-1/8-QS-6

$40.15
RRP $45.00
SAVE $4.85 (11%)
In Stock


Shut-off valve

HE-3-1/8-QS-6

153479

GTIN: 4052568034955

Downloads



HE_EN.PDF

Technical data

Reliability datasheet

Links

Spare parts

Valve function 3/2 double solenoid

Pneumatic connection, port 1 R1/8

Standard nominal flow rate (standardised to DIN 1343) 279.9 l/min

Operating pressure -0.95 bar - 10 bar

Type of actuation Manual



Shut-off valve

Technical Data

  • Valve function 3/2 double solenoid
  • Selection of additional functionsWith exhaust function
  • Pneumatic connection, port 1 R1/8
  • Pneumatic connection, port 2 QS-6
  • Type of actuation Manual
  • Type of mountingEither: Direct mounting via through-hole Direct mounting via thread
  • Standard nominal flow rate (standardised to DIN 1343) 279.9 l/min
  • Nominal size 3.2 mm
  • Operating pressure -0.095 MPa ... 1 MPa
  • Operating pressure -0.95 bar ... 10 bar
  • Ambient temperature 0 °C ... 60 °C
  • Material housing PBT -reinforced
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Exhaust-air function Without flow control option
  • Sealing principle Soft
  • Mounting position optional
  • DesignPiston gate valve
  • Type of piloting Direct
  • Flow direction Non-reversible

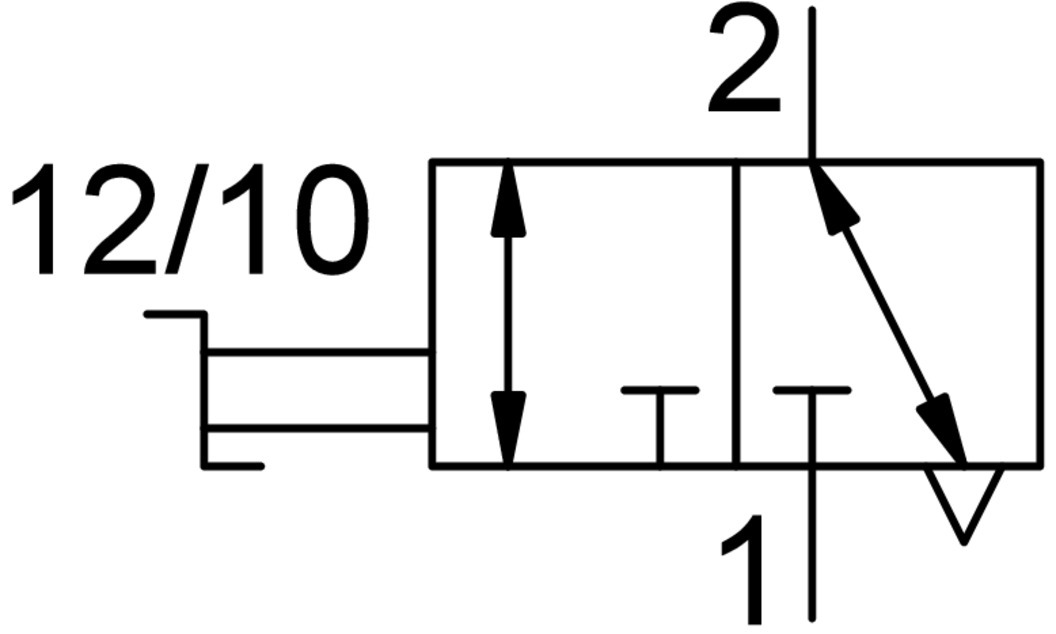

  • Symbol 00997329
  • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Cleanroom classClass 4 according to ISO 14644-1
  • Media temperature 0 °C ... 60 °C
  • Product weight 29 g
  • Pneumatic connection, port 3 Not ducted
  • Material screwed plug Nickel-plated brass
  • Note on materials RoHS-compliant
  • Material seals NBR

(153479)

SKU 153479
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
