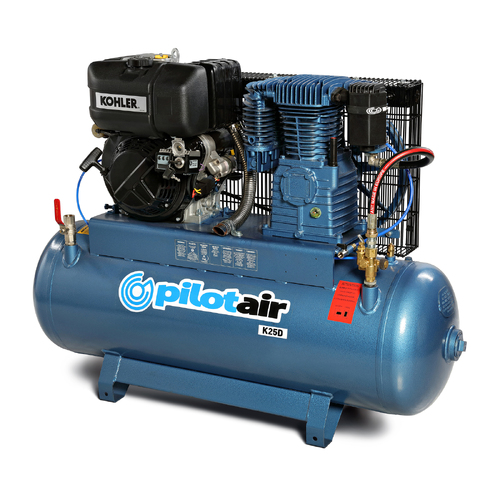

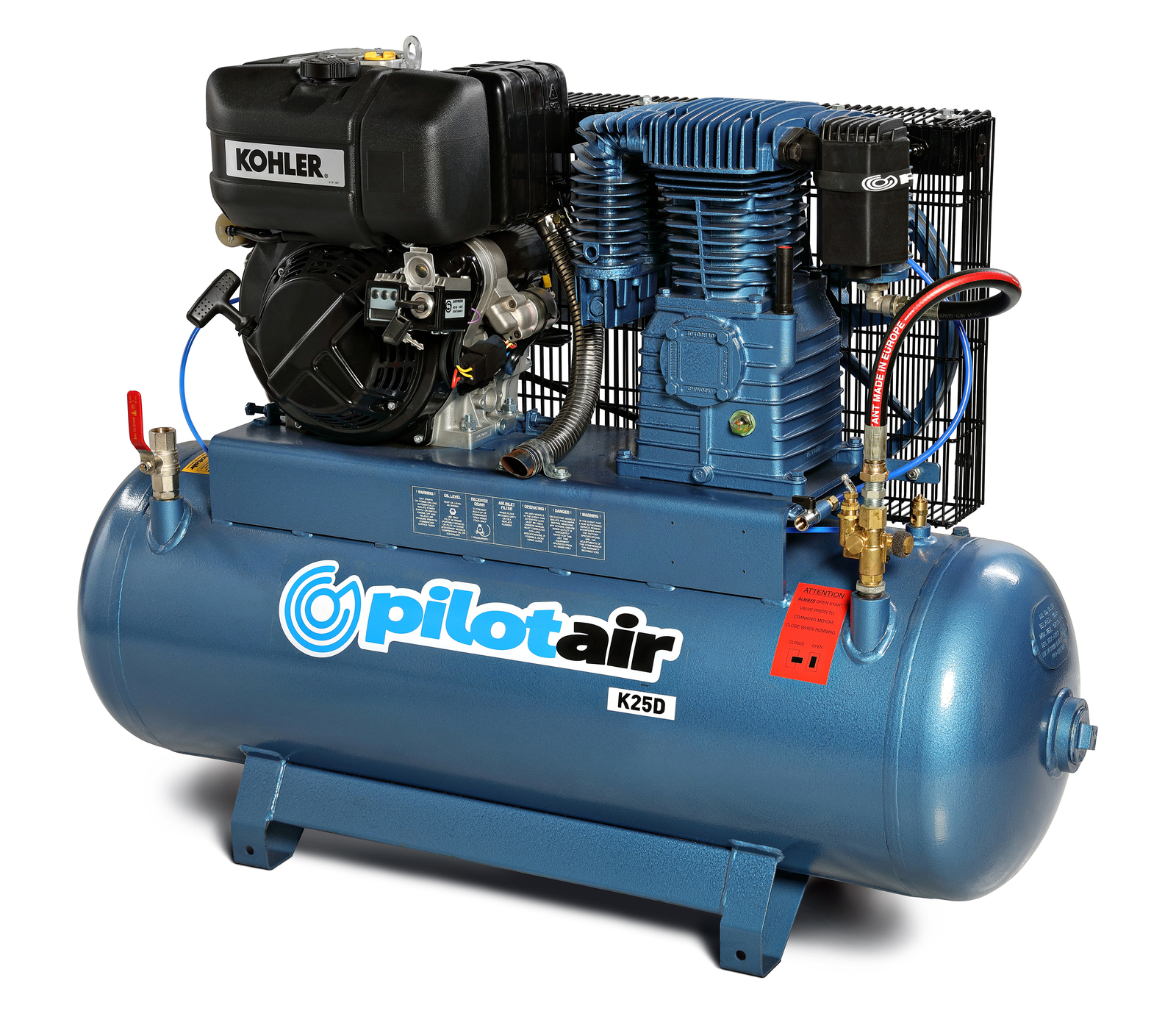

K25D Compressor- KOHLER diesel/KD350 (ES) /150 L Rec./457 L/min FAD

$9,884.60


RECIPROCATING AIR COMPRESSOR KOHLER DIESEL/KD350 (ELECTRIC START) /150 L REC./457 L/MIN FAD PILOT K25D

Diesel Engine Driven – Battery and leads not supplied

K25D AIR COMPRESSOR – DIESEL DRIVEN PILOT AIR



PISTON DISPLACEMENT                      605 L/MIN ~ 21.4 CFM*

FREE AIR DELIVERY                            457 L/MIN ~ 16.2 CFM*

MAXIMUM CUT OUT PRESSURE           1100 KPA ~ 160PSI

COMPRESSOR PUMP                          TWIN CYLINDER,TWO STAGE, ITALIAN MADE

ENGINE                                                KOHLER KD350 (6.7 HP @ 3600RPM) ELECTRIC START

NOTE: BATTERY & LEADS NOT INCLUDED

RECEIVER                                            100 LITRES (STATIC PALLET FEET), TO AS1210, AUSTRALIAN MADE

DIMENSIONS                                        1250mm L X 460mm W X 950mm H

WEIGHT                                                180 KG*

AIR OUTLET                                          ¼'' BSP



FEATURES

• AUSTRALIAN DESIGNED AND BUILT

• INDUSTRIAL GRADE HAMMERTONE ENAMEL FINISH

• CAST IRON CYLINDER PUMP

• PNEUMATICALLY CONTROLLED AUTOMATIC IDLE DOWN CONTROL

• “EASY START VALVE”

• WARRANTY: 3 YEARS ON PUMP AND MOTOR, 1 YEAR ON ALL OTHER COMPONENTS







(K25D)

SKU K25D
Brand PILOT AIR
Shipping Weight 150.0000kg
Shipping Width 1.000m
Shipping Height 1.000m
Shipping Length 1.000m
Shipping Cubic 1.000000000m3
