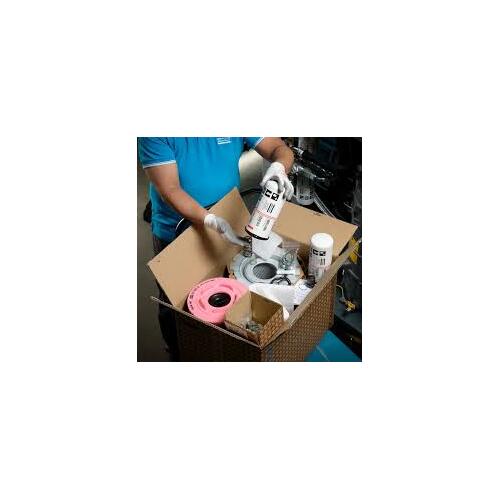

2906 0370 00 LP COMPRESSOR ELEMENT EXCHANGE KIT.

LP COMPRESSOR ELEMENT EXCHANGE KIT.

2906 0370 00 LP COMPRESSOR ELEMENT EXCHANGE KIT.

Ref Part Number Qty Name Validity
1006 1616 5803 82 1 SERVICE STAGE (07/11/2012 - 31/12/2040) (HAT:N + PRESS:10.4BAR , PRESS:8.6BAR)
+ TEFLO:Y
1006 1616 7186 87 1 SERVICE STAGE (07/11/2012 - 31/12/2040) HAT:Y + PRESS:10.4BAR + TEFLO:N
1006 1616 5803 81 1 SERVICE STAGE (07/11/2012 - 31/12/2040) (HAT:N + PRESS:10.4BAR , PRESS:8.6BAR)
+ TEFLO:N
1010 1 O-RING (07/11/2012 - 31/12/2040)
 Service kits: 2906 0370 00 - ZR110-145 LP ELMT EXCHANGE KIT
1015 1 O-RING (07/11/2012 - 31/12/2040)
 Service kits: 2906 0370 00 - ZR110-145 LP ELMT EXCHANGE KIT
1020 0147 1963 04 4 SCREW (07/11/2012 - 31/12/2040)
1025 0147 1963 02 2 SCREW (07/11/2012 - 31/12/2040)
1026 0300 0274 11 6 WASHER (07/11/2012 - 31/12/2040)
1030 2 PLUG 1/4 A A (07/11/2012 - 31/12/2040)
 Service kits: 2906 0370 00 - ZR110-145 LP ELMT EXCHANGE KIT
1035 2 SEAL WASHER 13.74 X 20.57 X 2 (07/11/2012 - 01/06/2016)
 Substituted by: 0661 1000 38 - SEAL WASHER DOWTY 1/4 (quantity: 1)
 Service kits: 2906 0370 00 - ZR110-145 LP ELMT EXCHANGE KIT
1035 0661 1000 38 2 SEAL WASHER DOWTY 1/4 (02/06/2016 - 31/12/2040)
1040 0686 3716 07 1 PLUG (07/11/2012 - 31/12/2040)
1045 0661 1000 44 1 SEAL WASHER (01/11/2018 - 31/12/2040)
1045 0661 1000 60 1 SEAL (02/06/2016 - 31/10/2018)
1045 0661 1000 30 1 SEAL CARTRIDGE (07/11/2012 - 01/06/2016)
 Substituted by: 0661 1000 44 - SEAL WASHER (quantity: 1)
1071 1616 5851 81 1 SERVICE STAGE (07/11/2012 - 31/12/2040) TEFLO:N
1071 1616 5851 82 1 SERVICE STAGE (07/11/2012 - 31/12/2040) (HAT:N + PRESS:10.4BAR , PRESS:8.6BAR)
+ TEFLO:Y
1075 1 O-RING (07/11/2012 - 31/12/2040)
 Service kits: 2906 0729 00 - ZR110-145 HP ELMT EXCH KIT
1080 1 O-RING (07/11/2012 - 31/12/2040)
 Service kits: 2906 0729 00 - ZR110-145 HP ELMT EXCH KIT
1085 0147 1963 06 4 BOLT (07/11/2012 - 31/12/2040)
1090 0147 1963 05 2 BOLT (07/11/2012 - 31/12/2040)
1091 0301 2344 00 6 WASHER PLAIN (07/11/2012 - 31/12/2040)
1095 0686 3716 01 2 PLUG 1/4 A A (07/11/2012 - 31/12/2040)
1100 0661 1000 25 2 SEAL WASHER 13.74 X 20.57 X 2 (07/11/2012 - 01/06/2016)
 Substituted by: 0661 1000 38 - SEAL WASHER DOWTY 1/4 (quantity: 1)
1100 0661 1000 38 2 SEAL WASHER DOWTY 1/4 (02/06/2016 - 31/12/2040)
1125 1621 3548 00 1 PIPE (07/11/2012 - 31/12/2040)
1130 0580 3623 06 1 FITTING (07/11/2012 - 31/12/2040)
1135 0580 0400 03 1 STR.COUPLING (07/11/2012 - 31/12/2040)
1140 0661 1000 25 1 SEAL WASHER 13.74 X 20.57 X 2 (07/11/2012 - 01/06/2016)
 Substituted by: 0661 1000 38 - SEAL WASHER DOWTY 1/4 (quantity: 1)
1140 0661 1000 38 1 SEAL WASHER DOWTY 1/4 (02/06/2016 - 31/12/2040)
1205 1621 3072 00 1 HOSE ASSEMBLY (07/11/2012 - 31/12/2040)
1210 0147 1323 03 4 HEX. HEAD SCREW M8 X 20 (07/11/2012 - 31/12/2040)
1215 2 O-RING (07/11/2012 - 31/12/2040)
 Service kits: 2906 0729 00 - ZR110-145 HP ELMT EXCH KIT
2906 0372 00 - ZR110-145 GEARCASING SEAL KIT
1220 1621 6616 00 1 HOSE ASSEMBLY (07/11/2012 - 31/12/2040)
1245 0147 1323 03 4 HEX. HEAD SCREW M8 X 20 (07/11/2012 - 31/12/2040)
1250 2 O-RING (07/11/2012 - 31/12/2040)
 Service kits: 2906 0370 00 - ZR110-145 LP ELMT EXCHANGE KIT
2906 0372 00 - ZR110-145 GEARCASING SEAL KIT
Legend:
HAT:N - High ambient temperature version:reduced ambient
condition (Increased FAD) - max 46° / 115°F
PRESS:8.6BAR - Working pressure:8.6 bar
HAT:Y
