2901 0298 01 Atlas Copco Replacement inlet valve / loading head service kit

2901 0298 01

$255.00
RRP $267.00
SAVE $12.00 (4%)

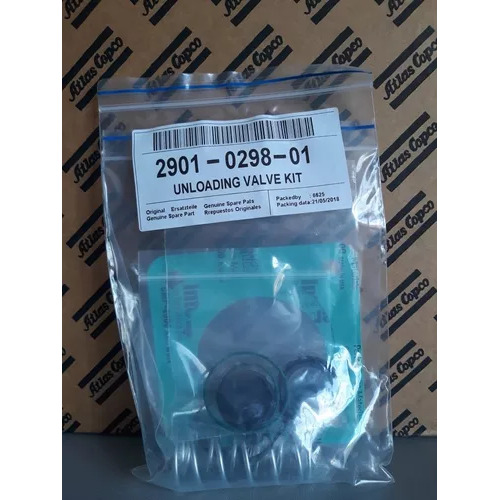

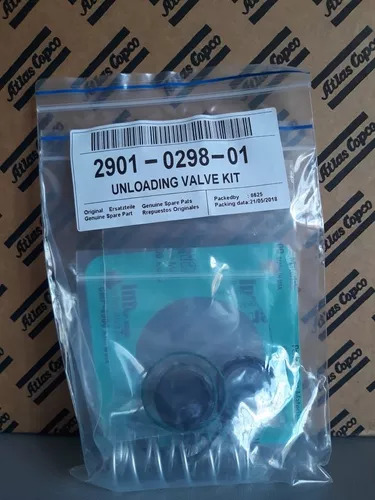

Atlas Copco Replacement inlet valve / loading head service kit

Atlas Copco original 2901 0298 01  MAINTENANCE KIT

Brand: ATLAS COPCO

Original equipment manufacturer (OEM) code: 2901 0298 01

Type:

2901029801 / 2901 0298 50

2901-0298-01 unloader valve Kit replacement air compressor spare parts suitable for Atlas Copco

2901-0298-01 unloader valve Kit replacement air compressor spare parts suitable for Atlas Copco

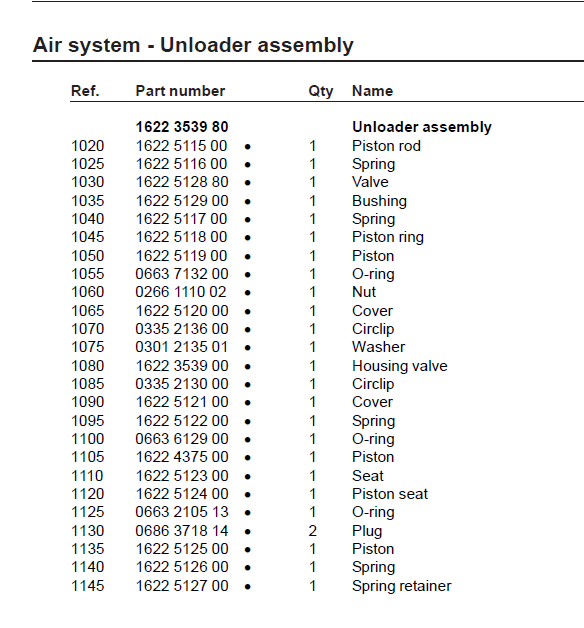

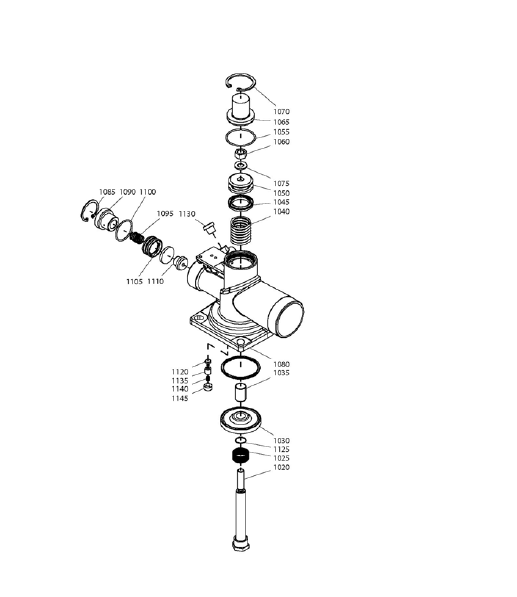

Air system - Unloader assembly 4
Ref. Part number Qty Name Remarks
1622 3539 80 Unloader assembly
1020 1622 5115 00 • 1 Piston rod
1025 1622 5116 00 • 1 Spring
1030 1622 5128 80 • 1 Valve
1035 1622 5129 00 • 1 Bushing
1040 1622 5117 00 • 1 Spring
1045 1622 5118 00 • 1 Piston ring
1050 1622 5119 00 • 1 Piston
1055 0663 7132 00 • 1 O-ring
1060 0266 1110 02 • 1 Nut
1065 1622 5120 00 • 1 Cover
1070 0335 2136 00 • 1 Circlip
1075 0301 2135 01 • 1 Washer
1080 1622 3539 00 • 1 Housing valve
1085 0335 2130 00 • 1 Circlip
1090 1622 5121 00 • 1 Cover
1095 1622 5122 00 • 1 Spring
1100 0663 6129 00 • 1 O-ring
1105 1622 4375 00 • 1 Piston
1110 1622 5123 00 • 1 Seat
1120 1622 5124 00 • 1 Piston seat
1125 0663 2105 13 • 1 O-ring
1130 0686 3718 14 • 2 Plug
1135 1622 5125 00 • 1 Piston
1140 1622 5126 00 • 1 Spring
1145 1622 5127 00 • 1 Spring retainer

(2901029801)

SKU 2901029801
Model # 7938 7556 00
Brand Atlas Copco
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.080m
Shipping Cubic 0.000020000m3
Unit Of Measure 1
