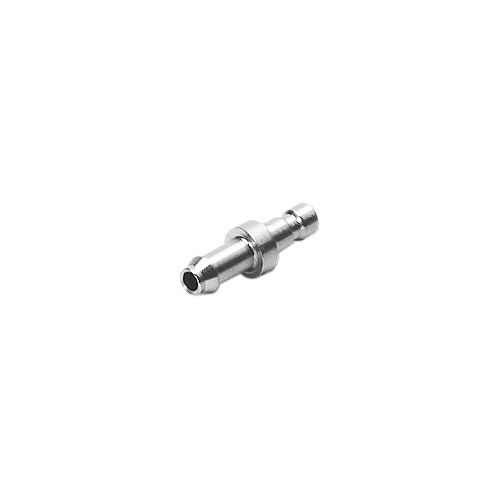

KS1-CN-2 Quick coupling plug

KS1-CN-2

$12.28
RRP $13.70
SAVE $1.42 (10%)


Quick coupling plug

KS1-CN-2

151996

GTIN: 4052568030933

Downloads

QUICK-COUPLINGS_EN.PDF

Technical data

Links

Spare parts



Pneumatic connection, port 1

Barbed hose fitting 2 mm

Standard nominal flow rate (standardised to DIN 1343) 44 l/min

Technical Data

  • Nominal size1.5 mm
  • Operating pressure complete temperature range -0.095 MPa ... 1.2 MPa
  • Operating pressure complete temperature range -0.95 bar ... 12 bar
  • Operating pressure complete temperature range -13.775 psi ... 174 psi
  • Standard nominal flow rate (standardised to DIN 1343) 44 l/min
  • Nominal flow rate standardised according to ISO 8778 47.7 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot medium Lubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Ambient temperature -10 °C ... 60 °C
  • Product weight 0.4 g
  • Pneumatic connection, port 1Barbed hose fitting 2 mm
  • Note on materials RoHS-compliant
  • Information on materialsBrass, nickel plated

(151996)

SKU 151996
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
