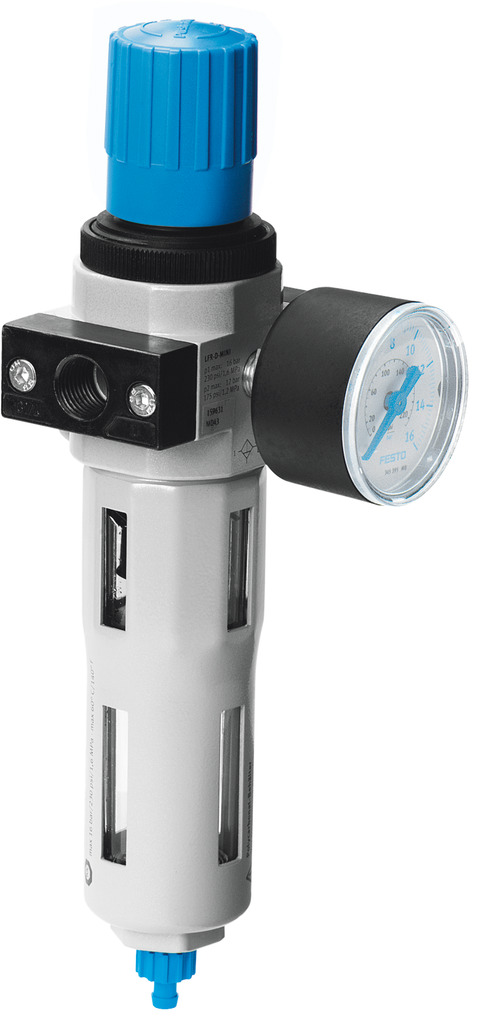

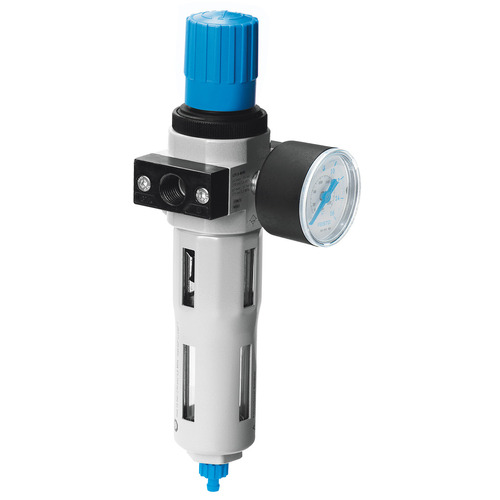

LFR-3/4-D-MAXI-A filter regulator FESTO

LFR-3/4-D-MAXI-A

$736.76
RRP $825.20
SAVE $88.44 (11%)
In Stock


Filter regulator

LFR-3/4-D-MAXI-A

159636

GTIN: 4052568126803

Downloads

Technical data

Reliability datasheet

Links

Spare parts

Pneumatic connection, port 1

G3/4

Standard nominal flow rate (standardised to DIN 1343) 9700 l/min

Pressure regulation range 0.5 bar - 12 bar

Grade of filtration 40 µm

Filter regulator

Technical Data

  • Size Maxi
  • Series D
  • Actuator lock Rotary knob with detent
  • Mounting position Vertical +/-5°
  • Grade of filtration 40 µm
  • Condensate drain Fully automatic
  • Design Filter regulator with pressure gauge
  • Max. condensate volume 80 ml
  • Bowl guard Metal bowl guard

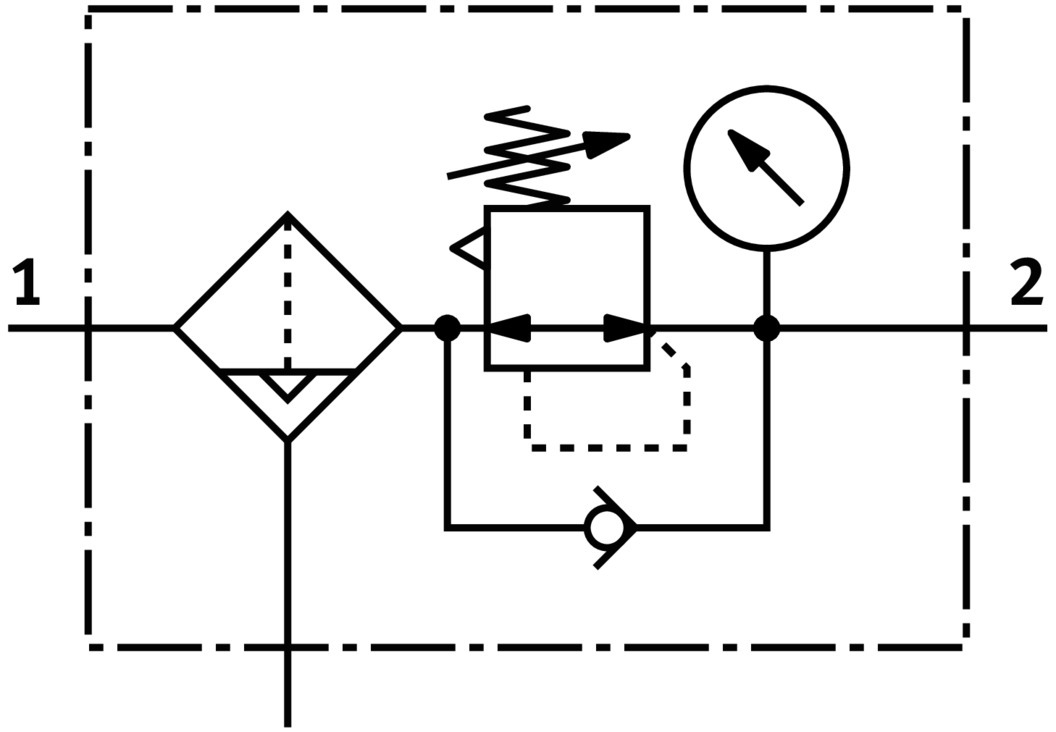

  • Symbol 00991587
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge
  • Operating pressure 2 bar ... 12 bar
  • Pressure regulation range 0.5 bar ... 12 bar
  • Max. pressure hysteresis 0.4 bar
  • Standard nominal flow rate (standardised to DIN 1343) 9700 l/min
  • Operating medium Compressed air to ISO 8573-1:2010 [7:9:-] Inert gases
  • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Storage temperature -10 °C ... 60 °C
  • Air purity class at output Compressed air to ISO 8573-1:2010 [7:8:4] Inert gases
  • Media temperature 5 °C ... 60 °C
  • Ambient temperature 5 °C ... 60 °C
  • Product weight 1370 g
  • Type of mounting Either: In-line installation With accessories
  • Pneumatic connection, port 1G3/4
  • Pneumatic connection, port 2G3/4
  • Note on materials RoHS-compliant
  • Material housing Die-cast zinc
  • Material bowl PC

(159636)

SKU 159636
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
