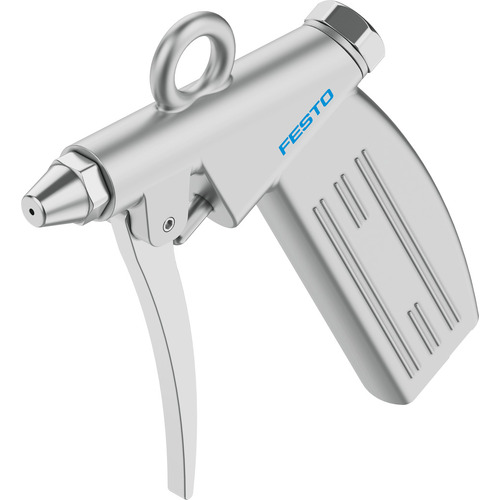

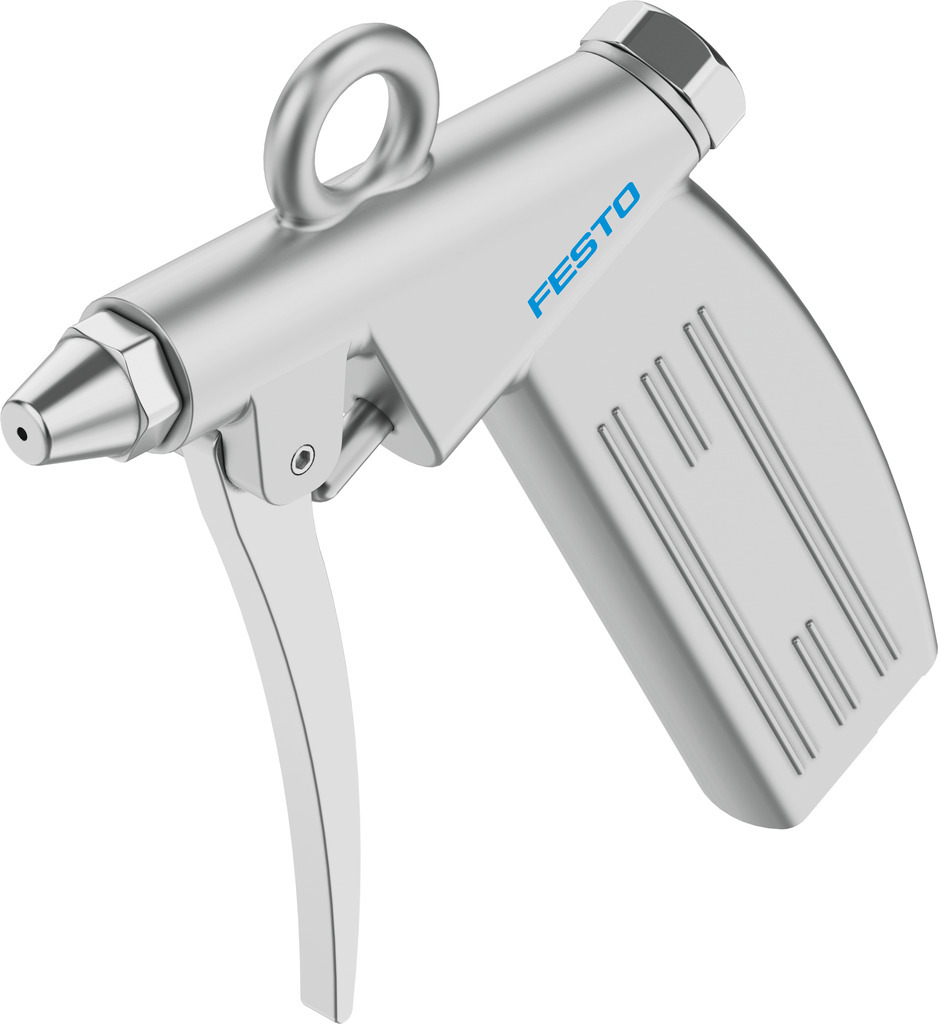

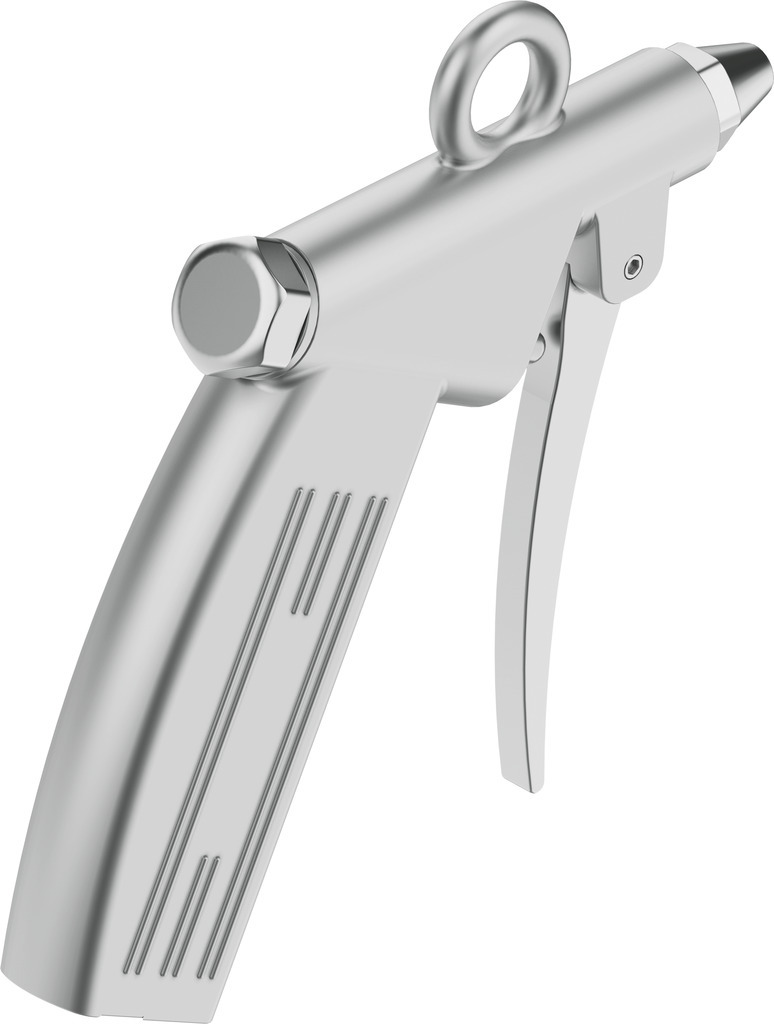

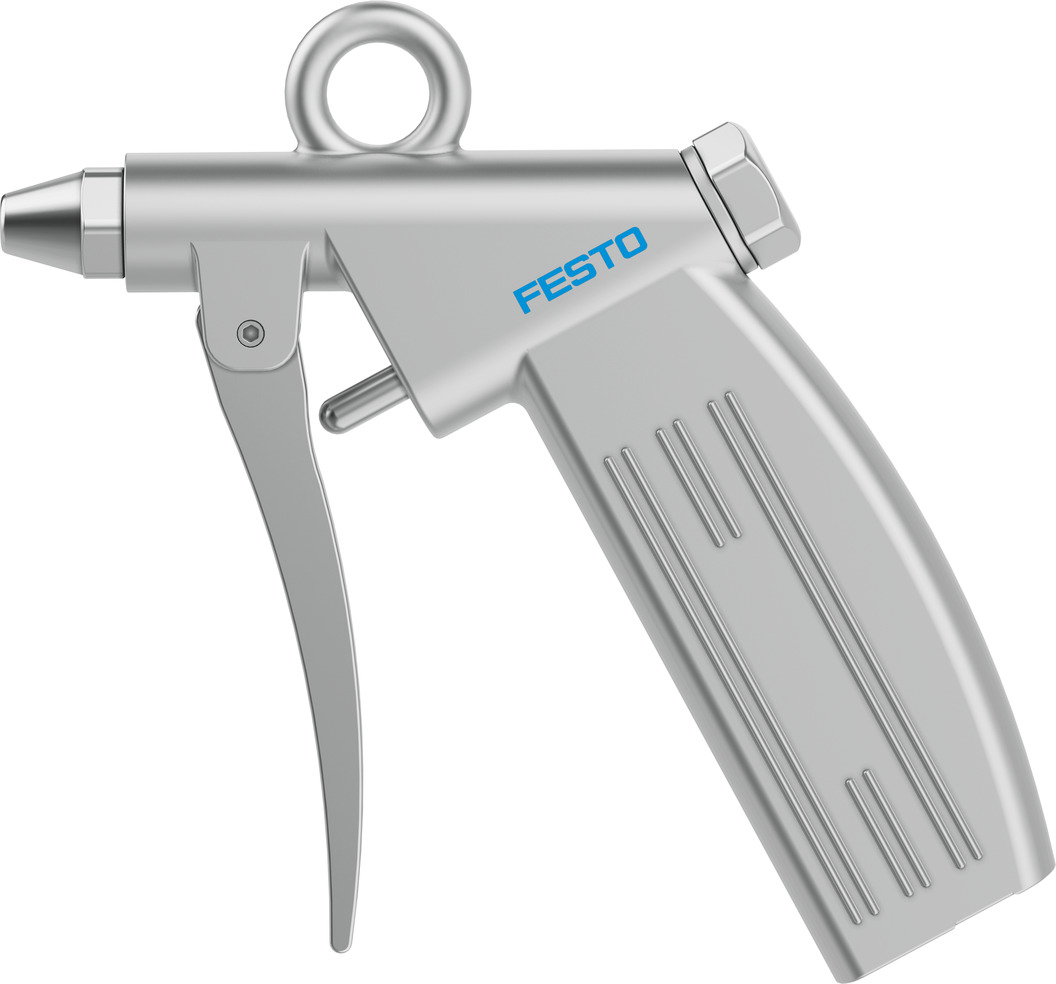

LSP-1/4-D Low consumption safety air gun

LSP-1/4-D

$48.75
RRP $54.60
SAVE $5.85 (11%)
In Stock


Low consumption Safety air gun

LSP-1/4-D

35528

GTIN: 4052568023287

Downloads

AIR-GUNS_EN.PDF

Technical data

Links

Spare parts

Exhaust-air function - Metered blowing

Pneumatic connection - Female thread G1/4

Material housing - Wrought aluminium alloy

Technical Data

  • Exhaust-air function Metered blowing
  • Safety Air Gun

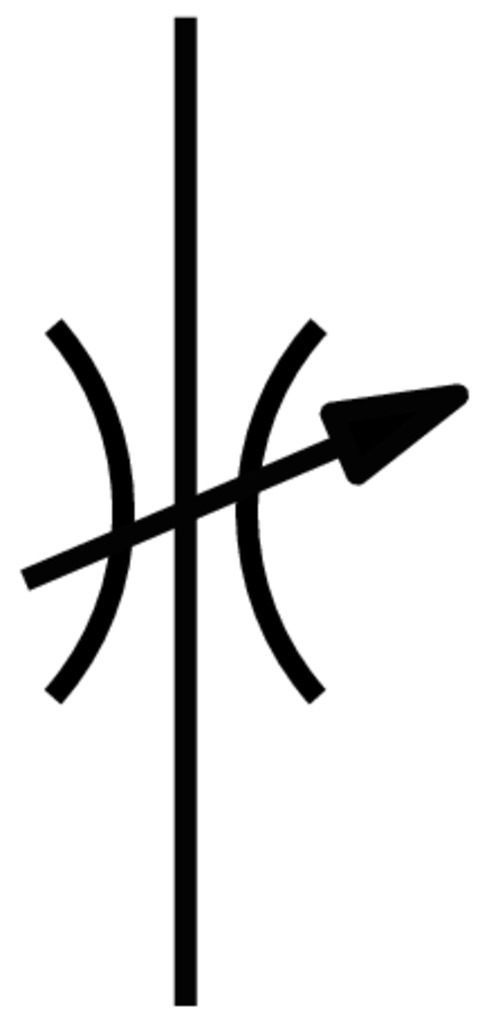

  • Symbol 00991454
  • Operating pressure 0 bar ... 10 bar
  • Flow rate to atmosphere120 l/min
  • Standard nominal flow rate (standardised to DIN 1343) 120 l/min
  • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformity VDMA24364 zone III
  • Sound pressure level 90 dB(A)
  • Ambient temperature -10 °C ... 50 °C
  • Product weight 240 g
  • Pneumatic connectionFemale thread G1/4
  • Note on materials RoHS-compliant
  • Material housing Wrought aluminium alloy

Low consumption air gun

Low consumption air gun

(35528)

SKU 35528
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
