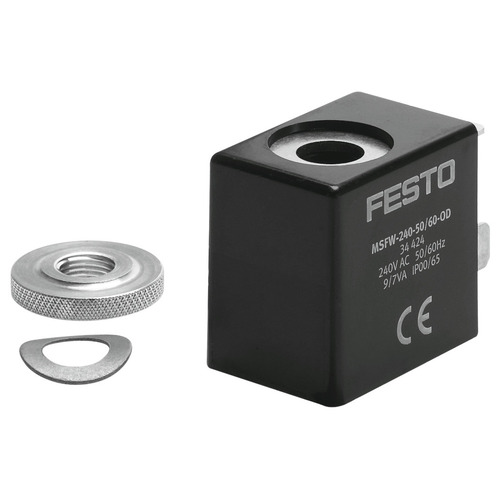

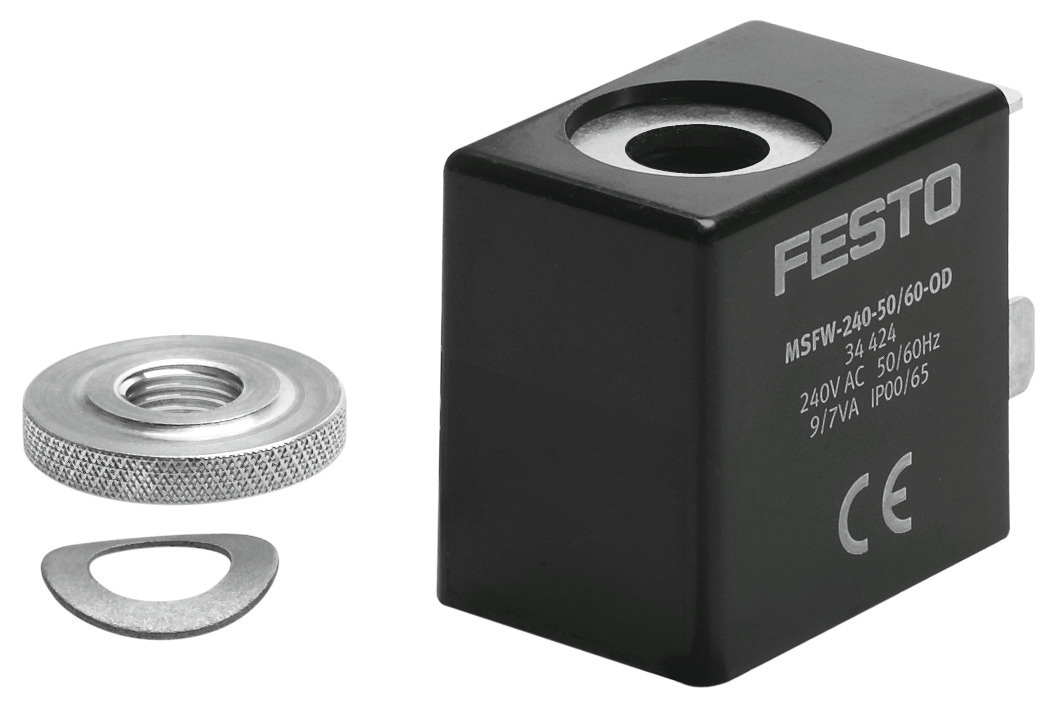

MSFW-230-50/60-OD Solenoid coil 230 V AC: 50/60 Hz, pick-up power 9.0 VA, holding power 7.0 VA

MSFW-230-50/60-OD

$26.49
RRP $29.70
SAVE $3.21 (11%)




Solenoid coil

MSFW-230-50/60-OD

34422

GTIN: 4052568023089

Downloads



VACS_EN.PDF

Technical data

Links

Spare parts

Solenoid coil

Technical Data

  • Mounting positionoptional
  • Switching position indicatorno
  • Min. pick-up time10 ms
  • Duty cycle100%
  • Power factor (cos phi)0.7
  • Characteristic coil data230 V AC: 50/60 Hz, pick-up power 9.0 VA, holding power 7.0 VA
  • Permissible frequency fluctuations+/- 5%
  • Permissible voltage fluctuations+/- 10 %
  • CE mark (see declaration of conformity)To EU Low Voltage Directive
  • CE marking (see declaration of conformity)To UK regulations for electrical equipment
  • LABS (PWIS) conformityVDMA24364-C1-L
  • Degree of protectionIP65
  • Ambient temperature-5 °C ... 40 °C
  • Max. tightening torque for socket0.4 Nm
  • Product weight55 g
  • Electrical connection3-pin Plug pins with connection pattern to Festo standard for MSSD-F
  • Type of mountingVia knurled nut
  • Note on materialsRoHS-compliant
  • Material solenoid coilDuroplast Copper Steel
  • Material windingCopper



(34422)

SKU 34422
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
