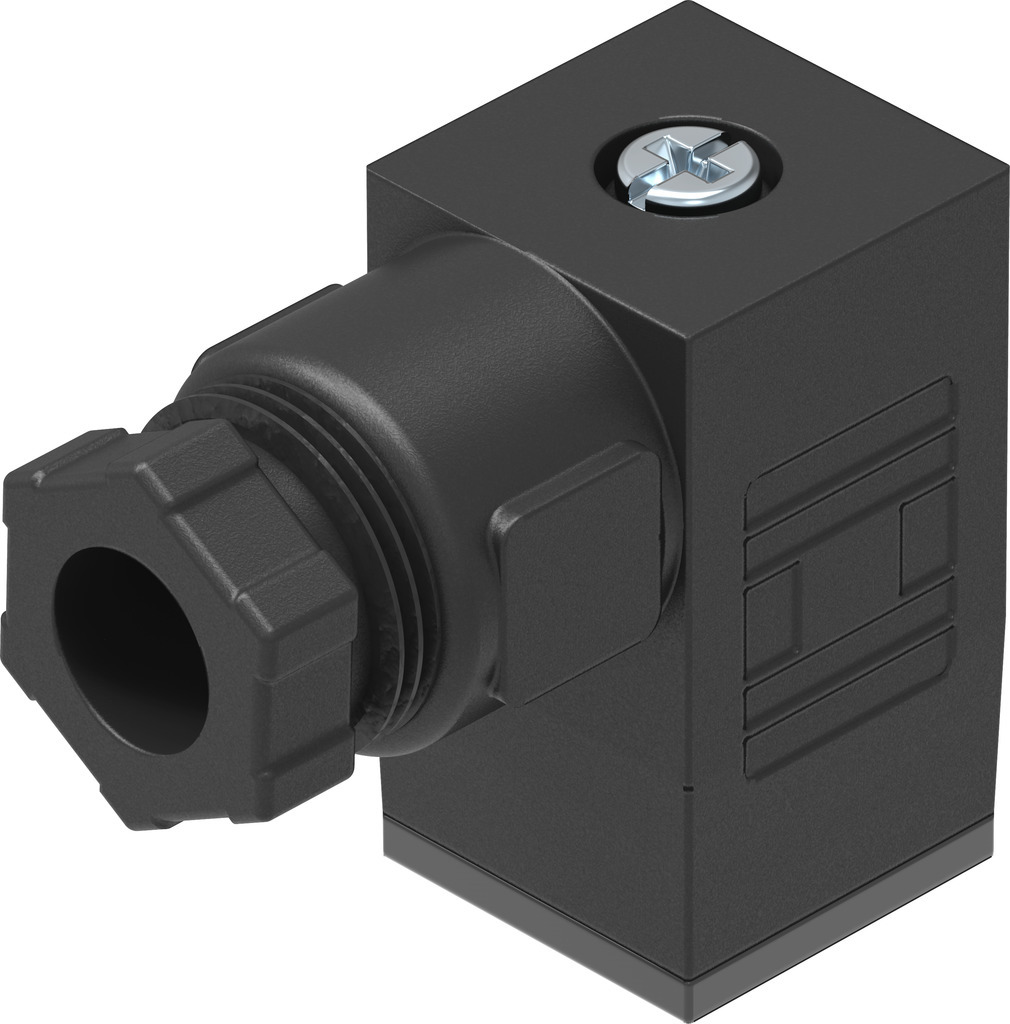

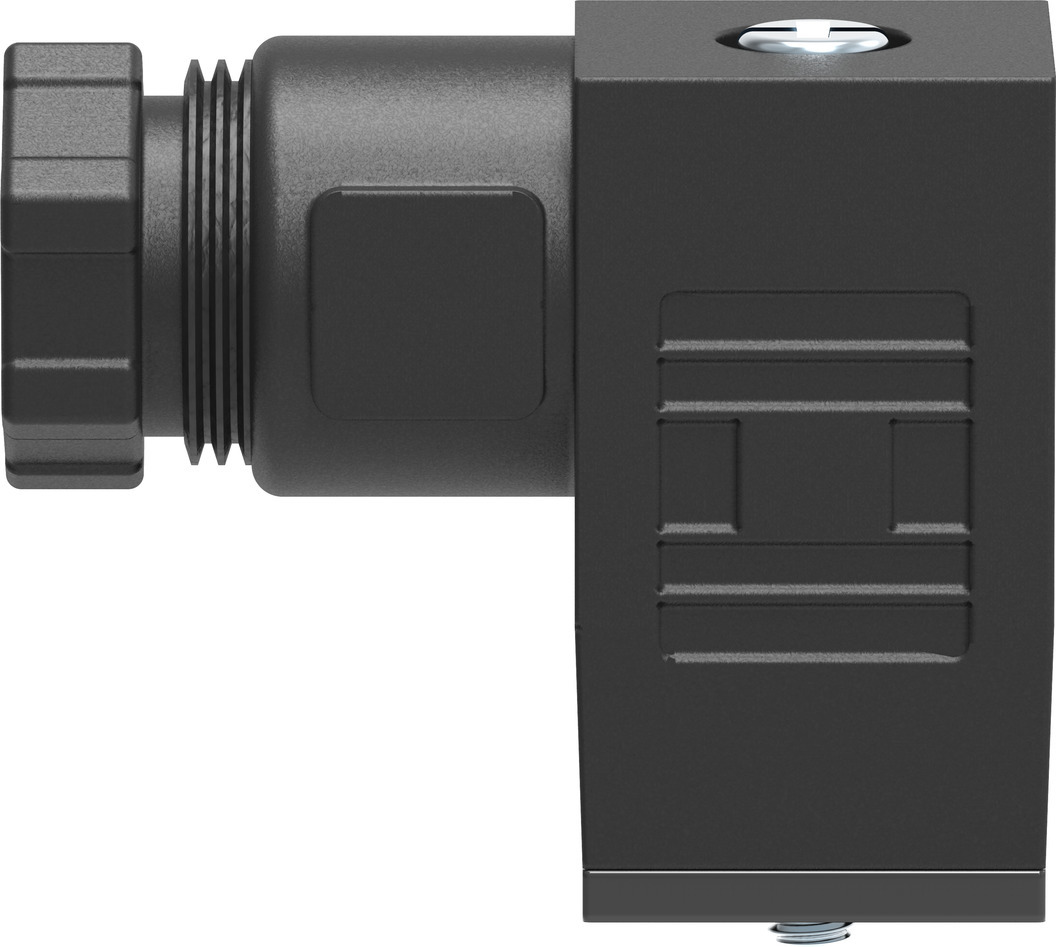

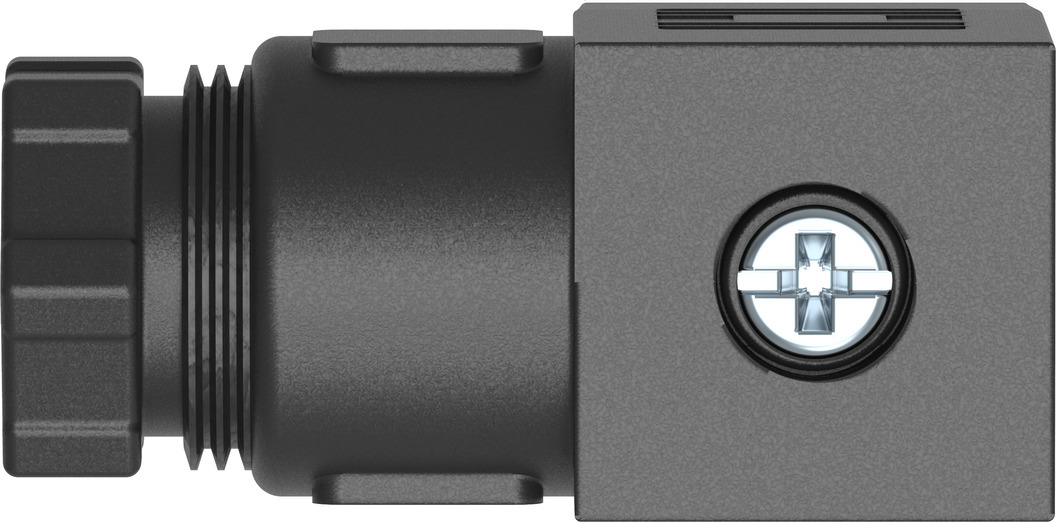

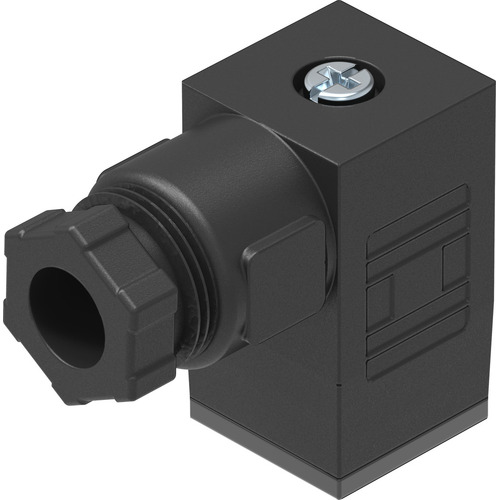

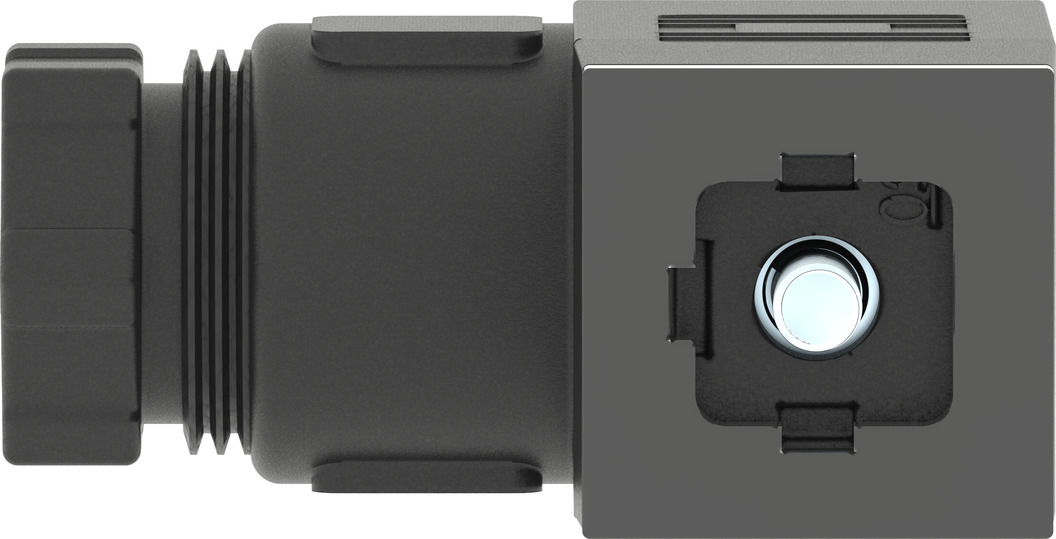

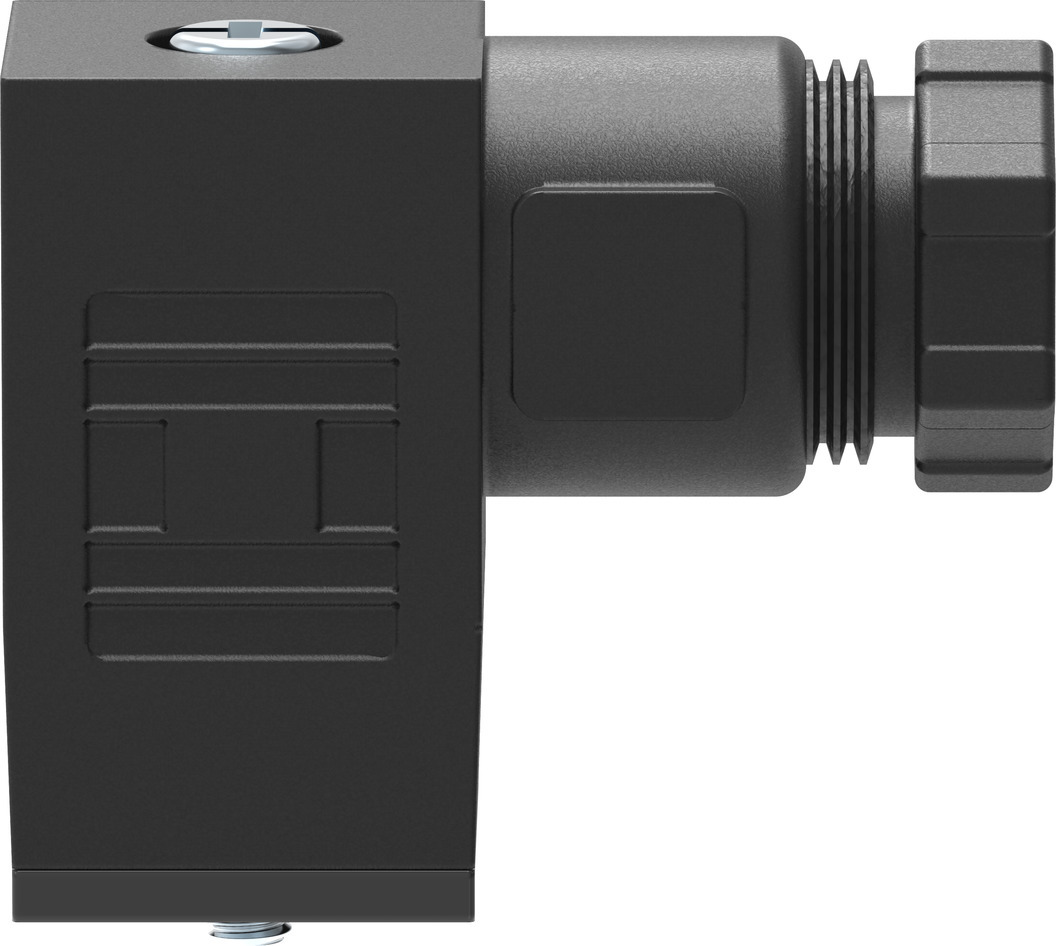

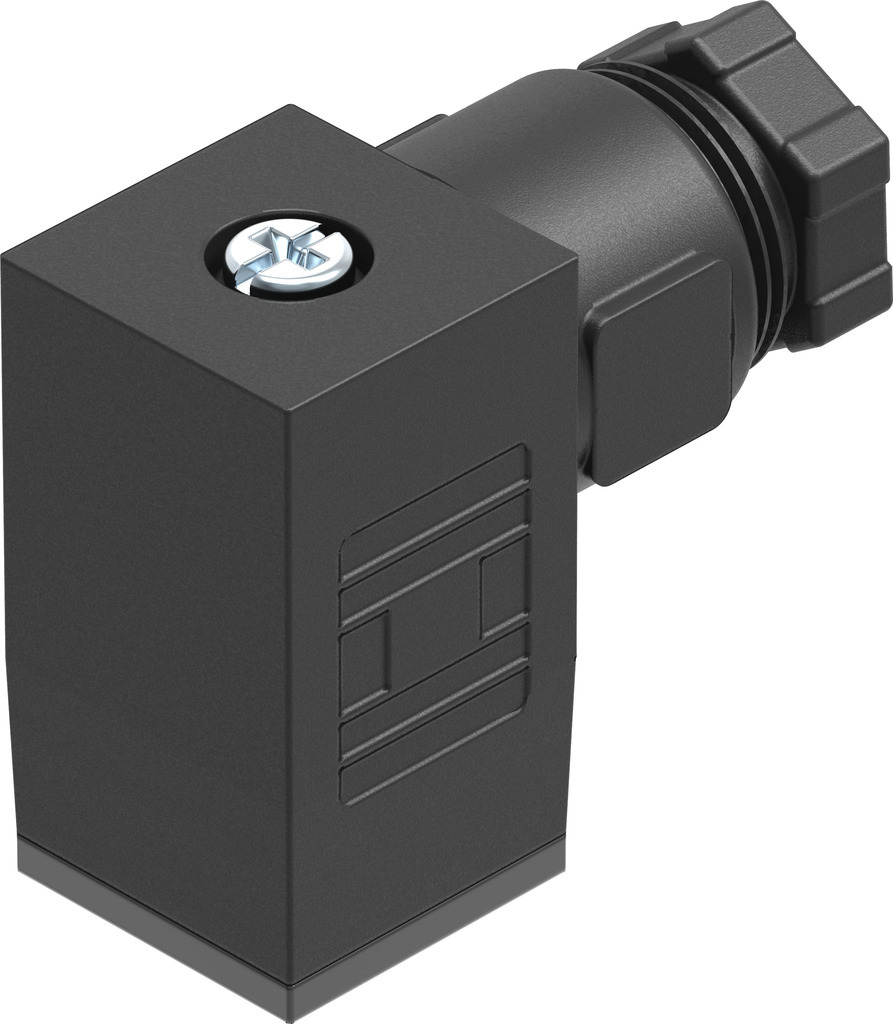

MSSD-EB Plug socket

MSSD-EB

$6.08
RRP $6.80
SAVE $0.72 (11%)
In Stock


Plug socket

MSSD-EB

151687





GTIN: 4052568010720

Downloads

Technical data

Links

Spare parts



Electrical connection

3-pin - Socket - Angled socket - Type C - To DIN EN 175301-803 - To DIN EN 61984 - Square design MSEB - Square design MSN2

Connection cross section 0.75 mm²

Degree of protection IP65 - To IEC 60529



Technical Data

  • Type of mountingOn solenoid valve via M2.5 central screw
  • Cable outletAngled
  • Note on cable outlet90° rotatable
  • Mounting positionoptional
  • Product weight11 g
  • Electrical connection3-pin Socket Angled socket Type C To DIN EN 175301-803 To DIN EN 61984 Square design MSEB Square design MSN2
  • Electrical connection 1, designAngular
  • Electrical connection 1, connection typeSocket
  • Electrical connection 1, cable outletAngled
  • Electrical connection 1, number of connections/cores3
  • Electrical connection 1, connection pattern00995650
  • Electrical connection 2Screw terminal
  • Operational voltage range DC0 V ... 300 V
  • Operational voltage range AC0 V ... 250 V
  • Current rating at 40° C6 A
  • Permissible current load6 A
  • Immunity to surge4 kV
  • Protective conductor connectionAvailable
  • Cable fittingPg7
  • Cable diameter6 mm ... 8 mm
  • Permissible cable diameter7.5 mm
  • Nominal cross section conductor≤0.75 mm²
  • Connection cross section0.75 mm²
  • Degree of protectionIP65 To IEC 60529
  • Note on degree of protectionIn assembled state
  • Ambient temperature-45 °C ... 90 °C
  • CE mark (see declaration of conformity)To EU Low Voltage Directive In accordance with EU RoHS Directive
  • CE marking (see declaration of conformity)To UK RoHS instructions To UK regulations for electrical equipment
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Pollution degree3
  • Material housingPolymer
  • Housing colourBlack
  • Material sealsNBR
  • Plug socket

Plug socket

(151687)

SKU 151687
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
