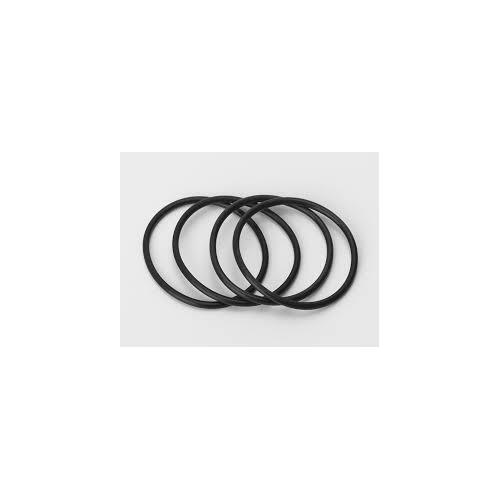

0663 2106 17 O-RING-GA SIZE II RD

O-RING-GA SIZE II RD

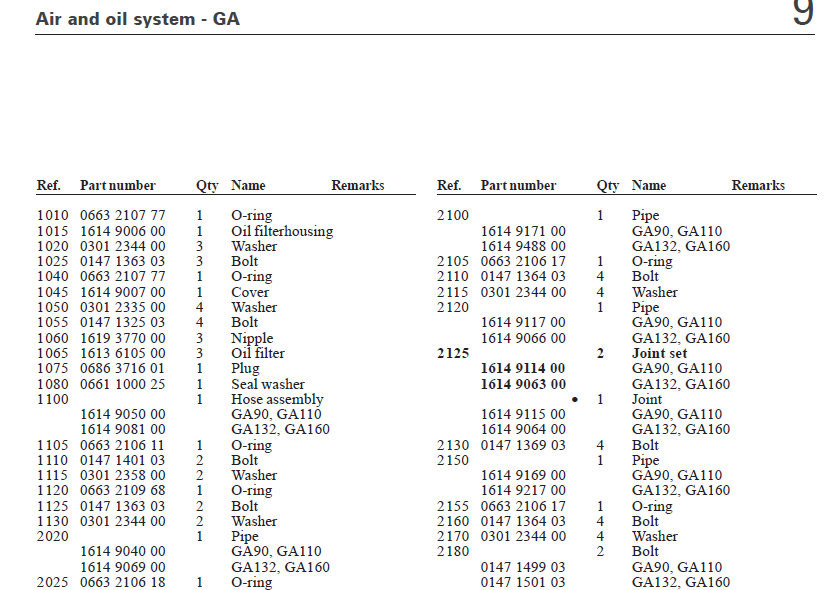

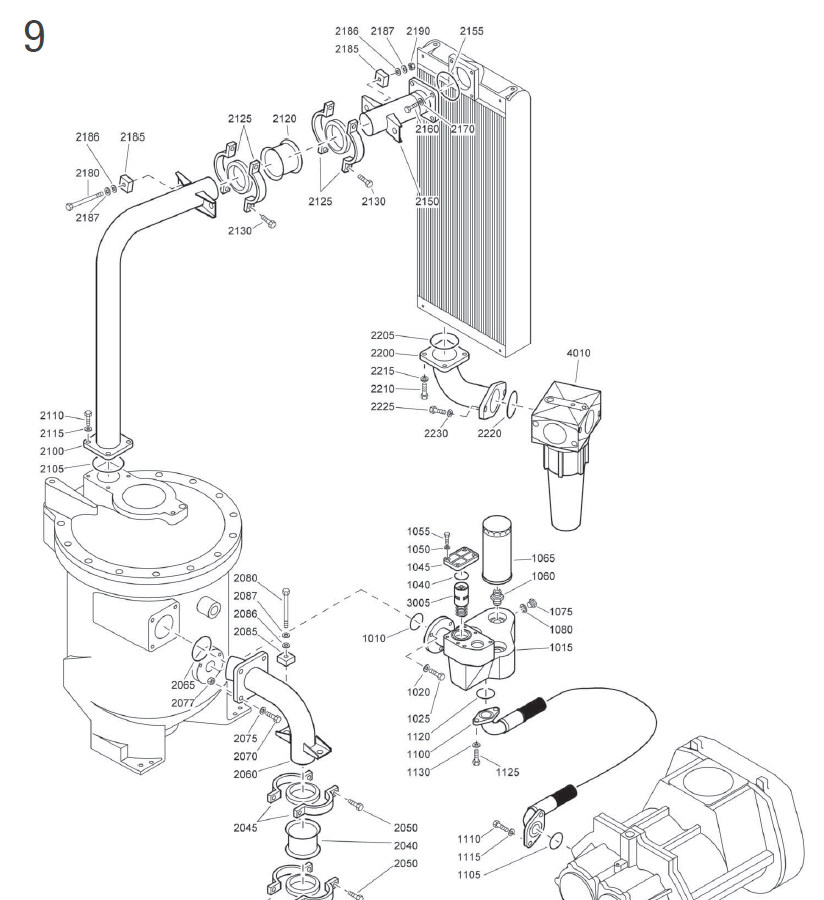

Ref. Part number Qty Name Remarks
1010 0663 2107 77 1 O-ring
1015 1614 9006 00 1 Oil filterhousing
1020 0301 2344 00 3 Washer
1025 0147 1363 03 3 Bolt
1040 0663 2107 77 1 O-ring
1045 1614 9007 00 1 Cover
1050 0301 2335 00 4 Washer
1055 0147 1325 03 4 Bolt
1060 1619 3770 00 3 Nipple
1065 1613 6105 00 3 Oil filter
1075 0686 3716 01 1 Plug
1080 0661 1000 25 1 Seal washer
1100 1 Hose assembly
1614 9050 00 GA90, GA110
1614 9081 00 GA132, GA160
1105 0663 2106 11 1 O-ring
1110 0147 1401 03 2 Bolt
1115 0301 2358 00 2 Washer
1120 0663 2109 68 1 O-ring
1125 0147 1363 03 2 Bolt
1130 0301 2344 00 2 Washer
2020 1 Pipe
1614 9040 00 GA90, GA110
1614 9069 00 GA132, GA160
2025 0663 2106 18 1 O-ring
2030 0147 1403 03 4 Bolt
2035 0301 2358 00 4 Washer
2040 1 Pipe
1614 9117 00 GA90, GA110
1614 9066 00 GA132, GA160
2045 2 Joint set
1614 9114 00 GA90, GA110
1614 9063 00 GA132, GA160
• 1 Joint
1614 9115 00 GA90, GA110
1614 9064 00 GA132, GA160
2050 0147 1369 03 4 Bolt
2060 1 Pipe
1614 9263 00 GA90, GA110
1614 9264 00 GA132, GA160
1614 9478 00 GA90, GA110 Italy
1614 9479 00 GA132, GA160Italy
2065 0663 2106 18 1 O-ring
2070 0147 1403 03 4 Bolt
2075 0301 2358 00 4 Washer
2077 0266 2112 00 4 Nut GA90-160
Italy
2080 2 Bolt
0147 1499 03 GA90, GA110
0147 1501 03 GA132, GA160
0147 1501 03 GA90, GA110 Italy
0147 1501 03 GA132, GA160Italy
2085 1614 8926 00 4 Absorber
2086 0300 0276 03 4 Washer
2087 0301 2344 00 4 Washer
2090 0291 1114 00 2 Locknut
Ref. Part number Qty Name Remarks
2100 1 Pipe
1614 9171 00 GA90, GA110
1614 9488 00 GA132, GA160
2105 0663 2106 17 1 O-ring
2110 0147 1364 03 4 Bolt
2115 0301 2344 00 4 Washer
2120 1 Pipe
1614 9117 00 GA90, GA110
1614 9066 00 GA132, GA160
2125 2 Joint set
1614 9114 00 GA90, GA110
1614 9063 00 GA132, GA160
• 1 Joint
1614 9115 00 GA90, GA110
1614 9064 00 GA132, GA160
2130 0147 1369 03 4 Bolt
2150 1 Pipe
1614 9169 00 GA90, GA110
1614 9217 00 GA132, GA160
2155 0663 2106 17 1 O-ring
2160 0147 1364 03 4 Bolt
2170 0301 2344 00 4 Washer
2180 2 Bolt
0147 1499 03 GA90, GA110
0147 1501 03 GA132, GA160
2185 1614 8926 00 4 Absorber
2186 0300 0276 03 4 Washer
2187 0301 2344 00 4 Washer
2190 0291 1114 00 2 Locknut
2200 1 Pipe
1614 9459 00 GA90, GA110
1614 9448 00 GA132, GA160
2205 0663 2106 15 1 O-ring
2210 0147 1364 03 4 Bolt
2215 0301 2344 00 4 Washer
2220 1 O-ring
0663 2107 94 GA90, GA110
0663 2109 69 GA132, GA160
2225 Bolt
0147 1476 03 2 GA90, GA110
0147 1401 03 4 GA132, GA160
2230 Washer
0301 2378 00 2 GA90, GA110
0301 2358 00 4 GA132, GA160
3005 1 Thermost.valve
1202 5869 03 13bar(e), 200psi
1619 7560 00 7.5bar(e), 8.5bar(e), 10bar(e)
100psi, 125psi, 150psi
4010 1 Waterseparator
1614 9373 00 GA90, GA110
Electronic Condensate Drain
1614 9374 00 GA132, GA160
Electronic Condensate Drain
1619 7474 01 GA90, GA110
0663 6136 00 • 1 O-ring
0663 6147 00 • 1 O-ring
1613 6728 00 GA132, GA160
