OE 3028

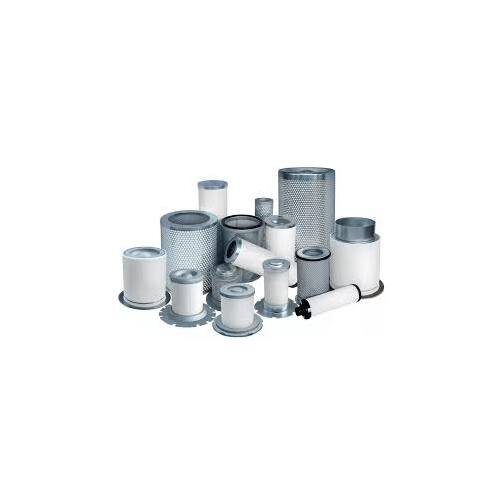

AIR/OIL SEPARATOR FILTER

Atlas Copco Kit 2901 9901 02 Contains Separator OE3028

GA 75 VSD+, GA 90 VSD+, GA 110 VSD+

HIFI-FILTER OE3028 replacement filters
1630 1708 01 / 1649 8001 41
1630170801 / 1649800141
Noitech NS100308
Fluidtek FLK16-12271

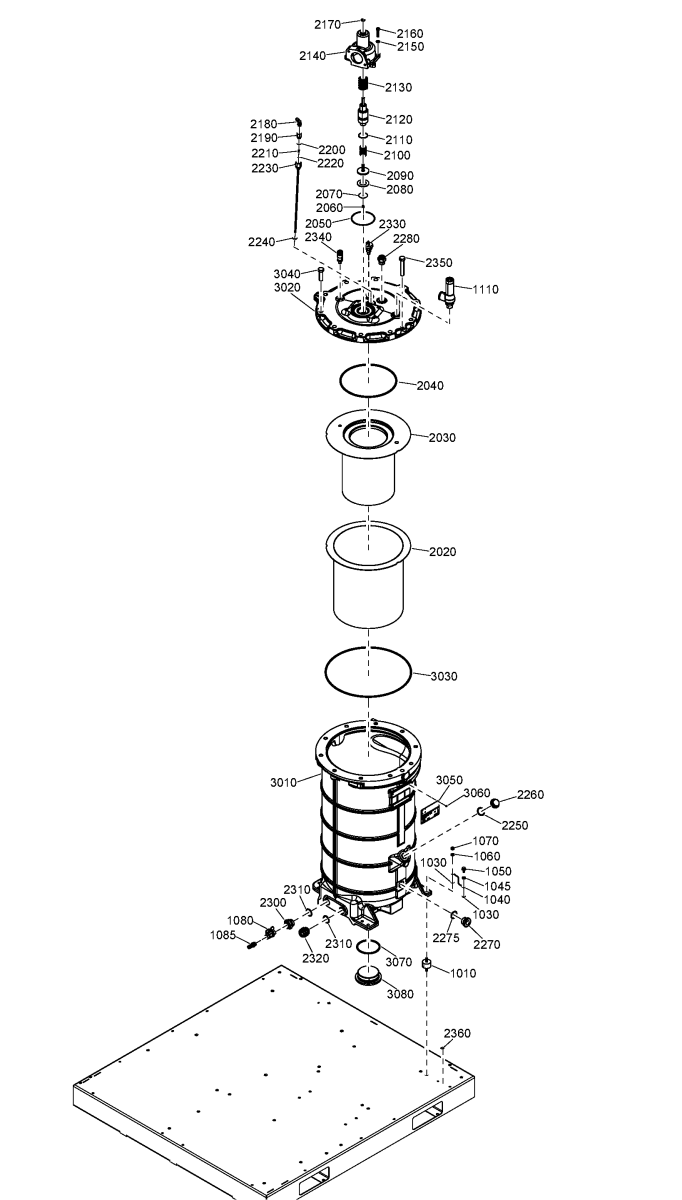

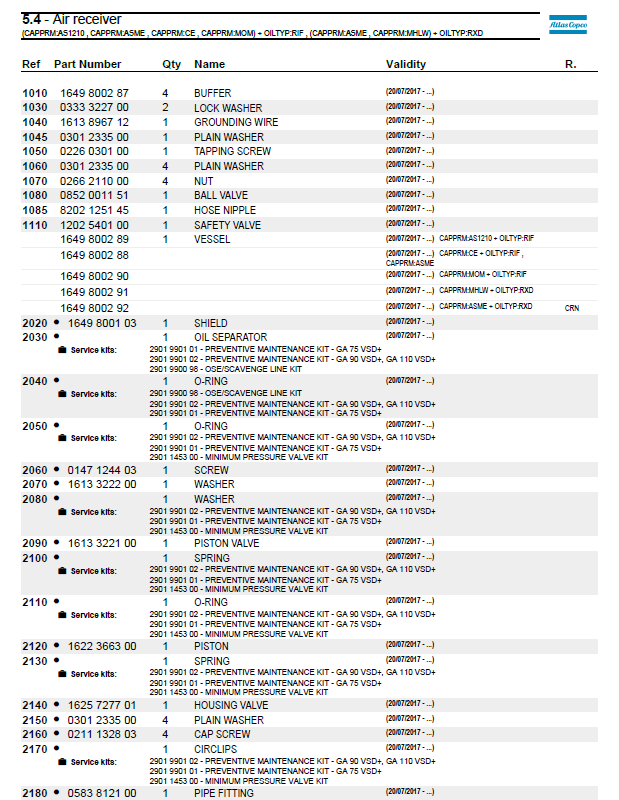

1010 1649 8002 87 4 BUFFER (20/07/2017 - ...)
1030 0333 3227 00 2 LOCK WASHER (20/07/2017 - ...)
1040 1613 8967 12 1 GROUNDING WIRE (20/07/2017 - ...)
1045 0301 2335 00 1 PLAIN WASHER (20/07/2017 - ...)
1050 0226 0301 00 1 TAPPING SCREW (20/07/2017 - ...)
1060 0301 2335 00 4 PLAIN WASHER (20/07/2017 - ...)
1070 0266 2110 00 4 NUT (20/07/2017 - ...)
1080 0852 0011 51 1 BALL VALVE (20/07/2017 - ...)
1085 8202 1251 45 1 HOSE NIPPLE (20/07/2017 - ...)
1110 1202 5401 00 1 SAFETY VALVE (20/07/2017 - ...)
1649 8002 89 1 VESSEL (20/07/2017 - ...) CAPPRM:AS1210 + OILTYP:RIF
1649 8002 88 (20/07/2017 - ...) CAPPRM:CE + OILTYP:RIF ,
CAPPRM:ASME
1649 8002 90 (20/07/2017 - ...) CAPPRM:MOM + OILTYP:RIF
1649 8002 91 (20/07/2017 - ...) CAPPRM:MHLW + OILTYP:RXD
1649 8002 92 (20/07/2017 - ...) CAPPRM:ASME + OILTYP:RXD CRN
2020  1649 8001 03 1 SHIELD (20/07/2017 - ...)
2030  1 OIL SEPARATOR (20/07/2017 - ...)
 Service kits: 2901 9901 01 - PREVENTIVE MAINTENANCE KIT - GA 75 VSD+
2901 9901 02 - PREVENTIVE MAINTENANCE KIT - GA 90 VSD+, GA 110 VSD+
2901 9900 98 - OSE/SCAVENGE LINE KIT
2040  1 O-RING (20/07/2017 - ...)
 Service kits: 2901 9900 98 - OSE/SCAVENGE LINE KIT
2901 9901 02 - PREVENTIVE MAINTENANCE KIT - GA 90 VSD+, GA 110 VSD+
2901 9901 01 - PREVENTIVE MAINTENANCE KIT - GA 75 VSD+
2050  1 O-RING (20/07/2017 - ...)
 Service kits: 2901 9901 02 - PREVENTIVE MAINTENANCE KIT - GA 90 VSD+, GA 110 VSD+
2901 9901 01 - PREVENTIVE MAINTENANCE KIT - GA 75 VSD+
2901 1453 00 - MINIMUM PRESSURE VALVE KIT
2060  0147 1244 03 1 SCREW (20/07/2017 - ...)
2070  1613 3222 00 1 WASHER (20/07/2017 - ...)
2080  1 WASHER (20/07/2017 - ...)
 Service kits: 2901 9901 02 - PREVENTIVE MAINTENANCE KIT - GA 90 VSD+, GA 110 VSD+
2901 9901 01 - PREVENTIVE MAINTENANCE KIT - GA 75 VSD+
2901 1453 00 - MINIMUM PRESSURE VALVE KIT
2090  1613 3221 00 1 PISTON VALVE (20/07/2017 - ...)
2100  1 SPRING (20/07/2017 - ...)
 Service kits: 2901 9901 02 - PREVENTIVE MAINTENANCE KIT - GA 90 VSD+, GA 110 VSD+
2901 9901 01 - PREVENTIVE MAINTENANCE KIT - GA 75 VSD+
2901 1453 00 - MINIMUM PRESSURE VALVE KIT
2110  1 O-RING (20/07/2017 - ...)
 Service kits: 2901 9901 02 - PREVENTIVE MAINTENANCE KIT - GA 90 VSD+, GA 110 VSD+
2901 9901 01 - PREVENTIVE MAINTENANCE KIT - GA 75 VSD+
2901 1453 00 - MINIMUM PRESSURE VALVE KIT
2120  1622 3663 00 1 PISTON (20/07/2017 - ...)
2130  1 SPRING (20/07/2017 - ...)
 Service kits: 2901 9901 02 - PREVENTIVE MAINTENANCE KIT - GA 90 VSD+, GA 110 VSD+
2901 9901 01 - PREVENTIVE MAINTENANCE KIT - GA 75 VSD+
2901 1453 00 - MINIMUM PRESSURE VALVE KIT
2140  1625 7277 01 1 HOUSING VALVE (20/07/2017 - ...)
2150  0301 2335 00 4 PLAIN WASHER (20/07/2017 - ...)
2160  0211 1328 03 4 CAP SCREW (20/07/2017 - ...)
2170  1 CIRCLIPS (20/07/2017 - ...)
 Service kits: 2901 9901 02 - PREVENTIVE MAINTENANCE KIT - GA 90 VSD+, GA 110 VSD+
2901 9901 01 - PREVENTIVE MAINTENANCE KIT - GA 75 VSD+
2901 1453 00 - MINIMUM PRESSURE VALVE KIT
2180  0583 8121 00 1 PIPE FITTING (20/07/2017 - ...)
