Replacement Oil Filter WD940/2

Replacement Oil Filter

image is illustration only

Cross reference:

AA8520

Edmac CPO5325

Atlas Copco: 2255300205 / 2255300205 / 2255 3002 05 / 2255 3002 05

Compair 982621229

ECOAIR 93568285

ECOAIR BN09202

ECOAIR F402351082

Elgi B004800770004

Gardner Denver ZS1059789

Hydrovane 57562

Ingersoll Rand 39329602

Ingersoll Rand 39446489

MACO-MEUDON 529214

Mark 640140

Pneumofore 40873

BALDWIN BT839-10

DONALDSON P551551

FLEETGUARD HF6056

UFI 80.045.00

Mann-Filter WD940 replacement filters

Alco Filters SP1206

ARMAFILT NO-93/140.31

ARMAFILT NO9314031

Baldwin BT8922

BOMAG 05821203

BOMAG 5821203

CARQUEST 94292

DIGOEMA-FILTER DGM/H940

DIGOMA DGMH940

FILMAR SO8352H

Fleetguard HF6315

Fleetguard LF3402

FRAD 44.64.162/140

FRAD 4464162140

HENGST H17WD01

KNECHT HC8

KNORR-BREMSE 05081724

KRAMER 0003634034

KRAMER 0003636134

KRAMER 1000000565

Magneti Marelli 154775279630

MAHLE HC8 MANITOU 137658

MANITOU C47408P47

MISFAT ZM126

Purolator PER205H

SAUER 072322

SAUER SF20P

SOTRAS SH8112

SOTRAS SH8154

STANDARD-AIR SH8112

STANDARD-AIR SH8154

SULLAIR 5860

SULLAIR 68528935

UNICO HI9144

UNICO-FILTER HI9144

UNIFLUX-FILTERS XH376

WILMINK-GROUP WG1214709

Wix 57266



• Thread measurement: 3/4-16 UNF
• Outer diameter: 93 mm (Approx. 3.66")
• Inner diameter 1: 62 mm (Approx. 2.44")
• Inner diameter 2: 71 mm (Approx. 2.8")
• Height: 144 mm (Approx. 5.67")



Mann-Filter / Mann & Hummel WD9402/2



Burst Pressure (BURST-P) 35 bar

Element Collapse pressure (COL-P) 5 bar

Filtration Media (FILT-MED) Impregnated Paper 10 µm

Total Height (H-TOTAL) 145 mm

Thread (TH) UNF 1"12 inch Female Bottom

Bypass Valve Opening Pressure (UGV) 1.75 bar

Working Pressure (WORK-P) 25 bar

Outer Diameter (Ø OUT) 96 mm

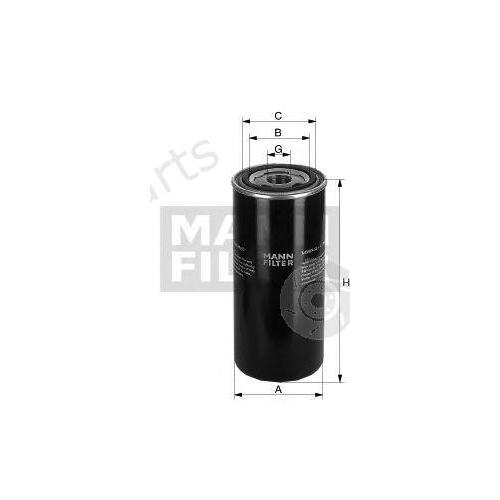

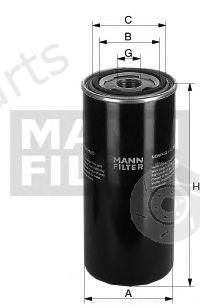

MANN-FILTER WD940/2 (WD9402) Filter, image for illustration only



---

Manufacturer Part Number: WD940/2 (WD9402)

---

Сharacteristics: Outer diameter [mm]: 93 Inner diameter 2 [mm]: 96 Thread Size: 1-12 UNF Height [mm]: 148 Inner diameter 1 [mm]: 62 Inner diameter 2 [mm]: 71 Height [mm]: 144 Bypass Valve Opening Pressure [bar]: 2,5
