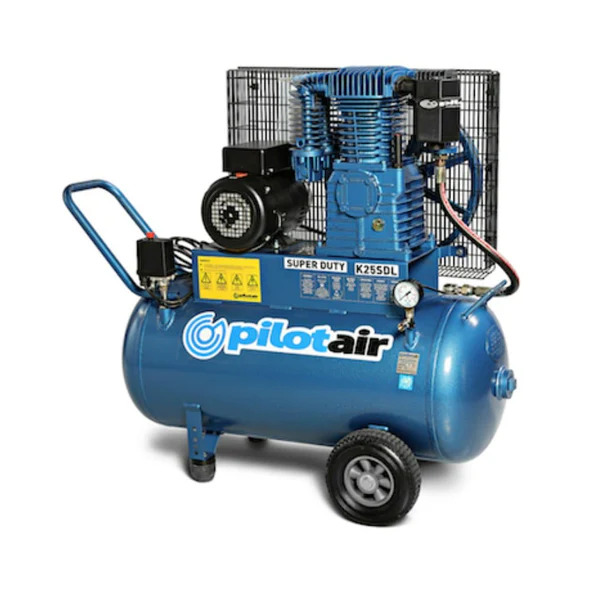

Pilot Air K25SDL 240V 2.2kW 3HP 100L 289 L/M FAD Classic K Series Twin Cylinder Reciprocating Air Compressor with Italian Pump

$2,491.50


Pilot Air K25SDL 240V 2.2kW 3HP 100L 289 L/M FAD Classic K Series Twin Cylinder Reciprocating Air Compressor with Italian Pump

SUPER DUTY

pilot-air-k25sdl-240v-2-2kw-3hp-100l-289-l-m-fad-classic-k-series-twin-cylinder-reciprocating-air-compressor-with-italian-pump.jpg

PRODUCT MANUAL BROCHURE

The Pilot K25SDL Classic 240V Reciprocating air compressor is built with high performance and heavy-duty componentry, twin cast iron cylinder, and Italian made pump to ensure reliability and longevity. Suitable for workplace use with an air receiver to AS1210-3, this system comes with a three-year compressor pump warranty. Custom built compressors available to meet your exact requirements.

Features:

  • Low vibration
  • Low speed
  • From 2 to 20 HP
  • Max 11 BAR
  • K” series pump
  • 100L receiver
  • 289L/min free air delivery
  • 2.2kW motor/ 15amp
  • Made in Australia

NOTE: Models featuring a 2.2kW motor require a 240 VOLT 15AMP power supply.

Specifications:

  • Piston Displacement:
    • L/Min: 371
    • CFM: 13.1
  • Free Air Delivery:
    • L/Min: 289
    • CFM: 10.2
  • Motor Size:
    • KW: 2.2
    • HP: 3.0
  • Max. Pressure:
    • kPA: 1100
    • PSI: 160
  • Cylinders:
    • Stages: 2 (2)
  • Receiver: 100 Litres
  • Dimensions: 1100 x 490 x 960
  • Weight: 100Kg
  • Performance measured to AS4637
  • Technical data conforms to +/- 5%. Pilot Air reserves the right to modification without notice for design and technical improvements.
  • Warranty: 3 years on compressor pump, 1 year on all other components.





(K25SDL)

SKU K25SDL
Brand PILOT AIR
Shipping Weight 95.0000kg
Shipping Width 1.000m
Shipping Height 1.300m
Shipping Length 1.500m
Shipping Cubic 1.950000000m3
