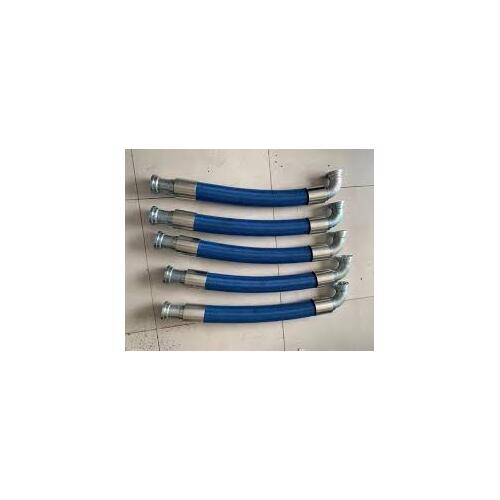

PIPE 1613 9941 00 Atlas Copco GA30 GA37 GA45 GA55C

$1,600.00
RRP $1,687.00
SAVE $87.00 (5%)


PIPE 1613 9941 00 Atlas Copco GA30 GA37 GA45 GA55C

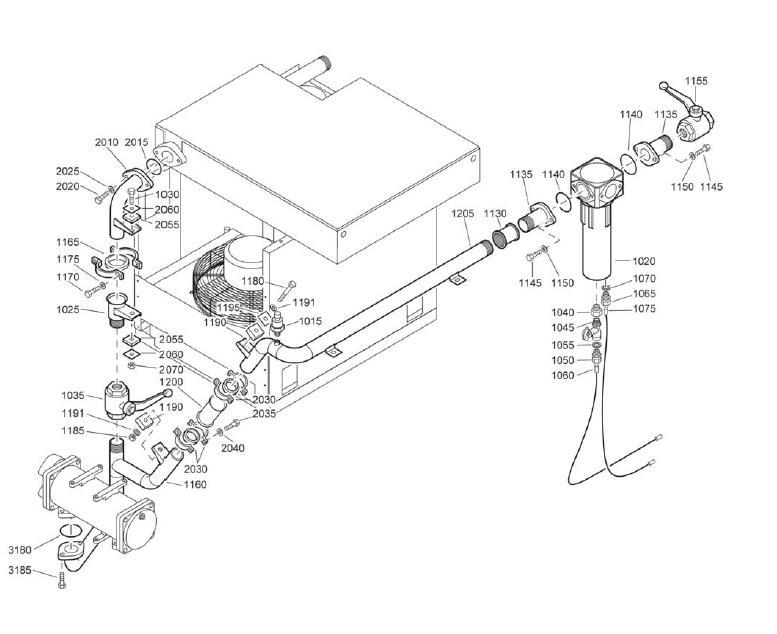

1015 1089 0575 51 1 Press.transducer
1020 1613 9356 80 1 WSD80
1025 1613 8568 00 1 Connection
1030 0147 1375 03 1 Hexagon bolt
1035 0852 0010 32 1 Ball valve
1040 0605 8300 35 1 Bushing
1045 1619 7336 00 1 Cock
1050 0581 0000 35 1 Coupling
1055 0653 1062 00 1 Flat gasket
1065 0581 0000 33 1 Coupling
1070 0653 1062 00 1 Flat gasket
1080 1613 8563 00 1 Pipe
1130 0607 2170 03 1 Socket
1135 1613 8569 00 2 Pipe
1140 0663 7136 00 2 O-ring
1145 0147 1364 03 4 Hexagon bolt
1150 0301 2344 00 4 Washer
1155 0852 0010 19 1 Ball valve
1160 1613 9941 00 1 Pipe
1165 1613 8377 81 1 Joint set
1613 8377 00 • 1 Joint
1170 0147 1960 44 2 Hexagon bolt
1180 0147 1962 69 1 Hexagon bolt
1185 0291 1111 00 1 Lock nut
1175 0301 2335 00 2 Washer
1191 0301 2344 00 2 Washer
1200 1613 8375 00 1 Pipe
1190 1613 8451 02 2 Antivibration pad
Ref. Part number Qty Name Remarks
1195 1613 8452 00 1 Washer
1205 1613 8688 00 1 Pipe
2010 1613 9918 00 1 Pipe
2015 0663 7136 00 1 O-ring
2020 0147 1364 03 2 Hexagon bolt
2025 0301 2344 00 2 Washer
2030 1613 8377 81 2 Joint set
1613 8377 00 • 1 Joint
2035 0147 1960 44 4 Hexagon bolt
2040 0301 2335 00 4 Washer
2050 0147 1962 69 1 Hexagon bolt
2055 1613 8451 02 1 Antivibration pad
2060 1613 8452 00 1 Washer
2065 0301 2344 00 1 Washer
2070 0291 1111 00 1 Lock nut
3180 0663 7136 00 1 O-ring
3185 0211 1363 03 2 Cap screw

(1613994100)

SKU 1613994100
Model # 6105 7556 00
Brand Atlas Copco
Shipping Weight 5.0000kg
Shipping Width 0.010m
Shipping Height 0.040m
Shipping Length 0.050m
Shipping Cubic 0.000020000m3
