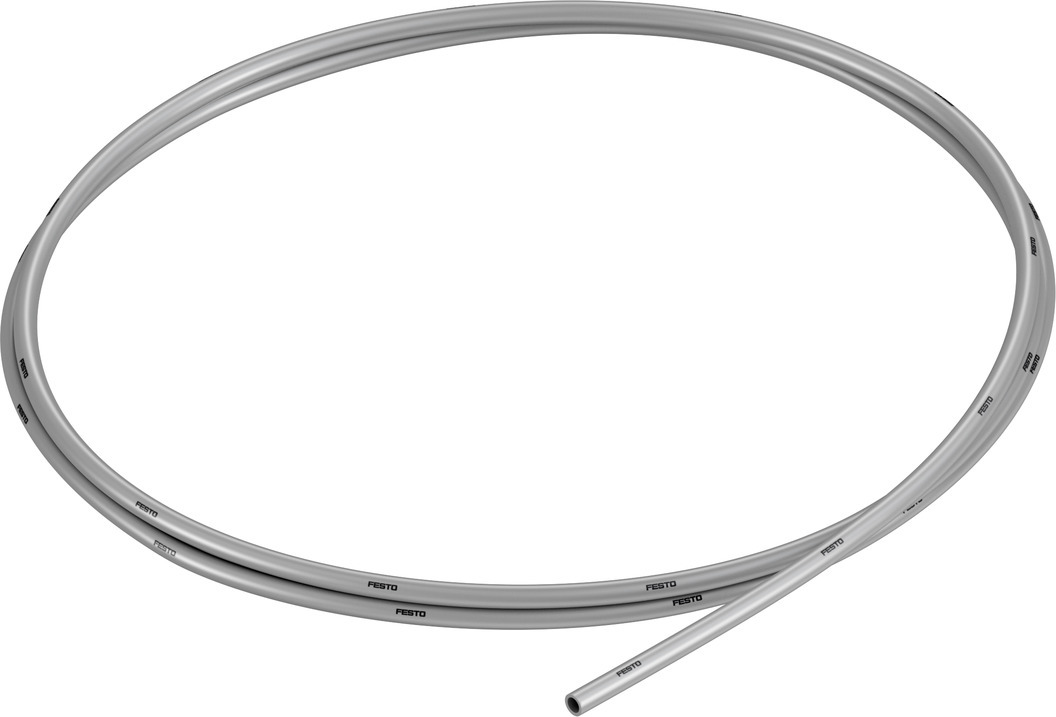

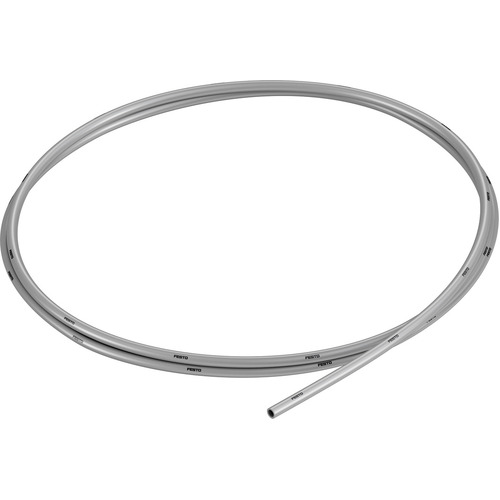

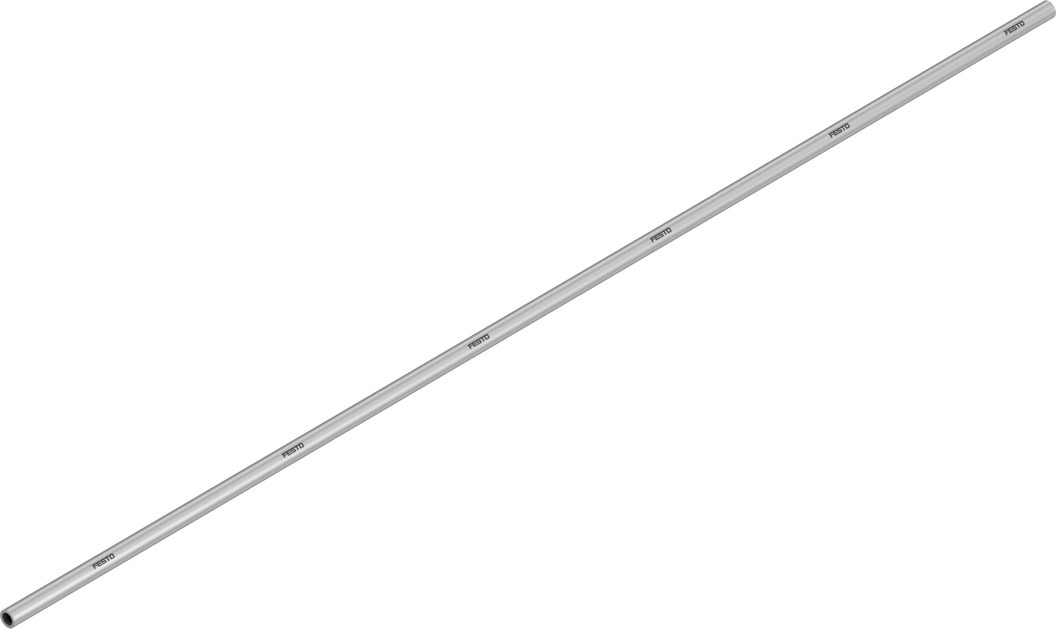

PUN-3X0,5-SI Plastic tubing

PUN-3X0,5-SI

$107.50
RRP $120.00
SAVE $12.50 (10%)


Note price is for MOQ x 50 metres (1 roll of 50M).

Plastic tubing

PUN-3X0,5-SI

152583

GTIN: 4052568030957

Downloads

Technical data

Links

Spare parts

Check chemical resistance

50M min order

Outside diameter 3 mm

Inside diameter 2.1 mm

Temperature-dependent operating pressure -0.95 bar - 10 bar

Ambient temperature -35 °C - 60 °C

Technical Data

  • Outside diameter3 mm
  • Flow-relevant bending radius12 mm
  • Inside diameter2.1 mm
  • Min. bending radius9 mm
  • Instructions on useTPE-U Ester based The plastic tubing can only be installed in contact with cables if the sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged.
  • Tubing characteristicsSuitable for energy chains
  • Operating pressure complete temperature range-0.095 MPa ... 0.7 MPa
  • Operating pressure complete temperature range-0.95 bar ... 7 bar
  • Operating pressure complete temperature range-13.775 psi ... 101.5 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 10 bar
  • Temperature-dependent operating pressure-13.775 psi ... 145 psi
  • ApprovalGerman Technical Control Board (TÜV)
  • Certificate issuing authorityB 013277 0506 00
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Fire test materialUL94 HB
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-35 °C ... 60 °C
  • Product weight according to length0.0044 kg/m
  • Pneumatic connectionFor push-in connector outside diameter of 3 mm For barbed fitting inside diameter of 2 mm
  • ColourSilver
  • Shore hardnessD 52 +/-3
  • Note on materialsRoHS-compliant
  • Material tubingTPE-U(PU)

Plastic tubing

(152583)

SKU 152583
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
