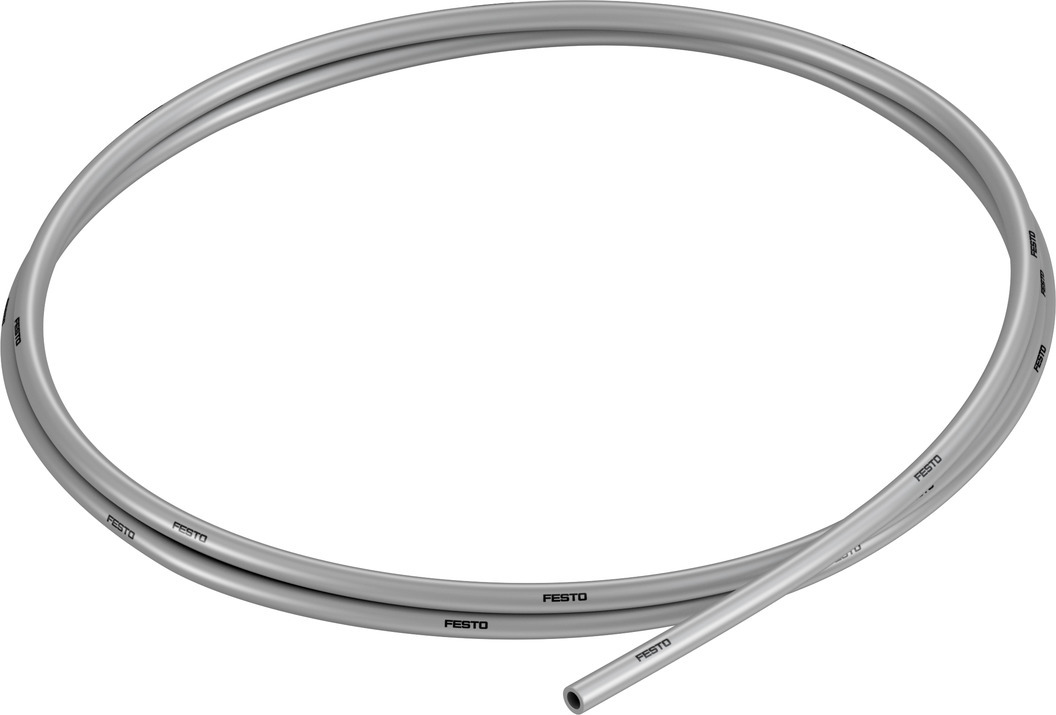

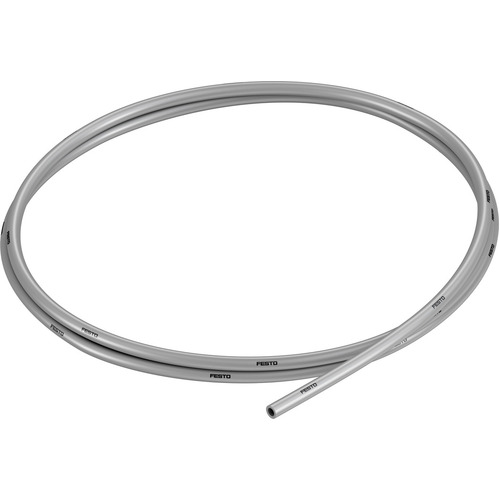

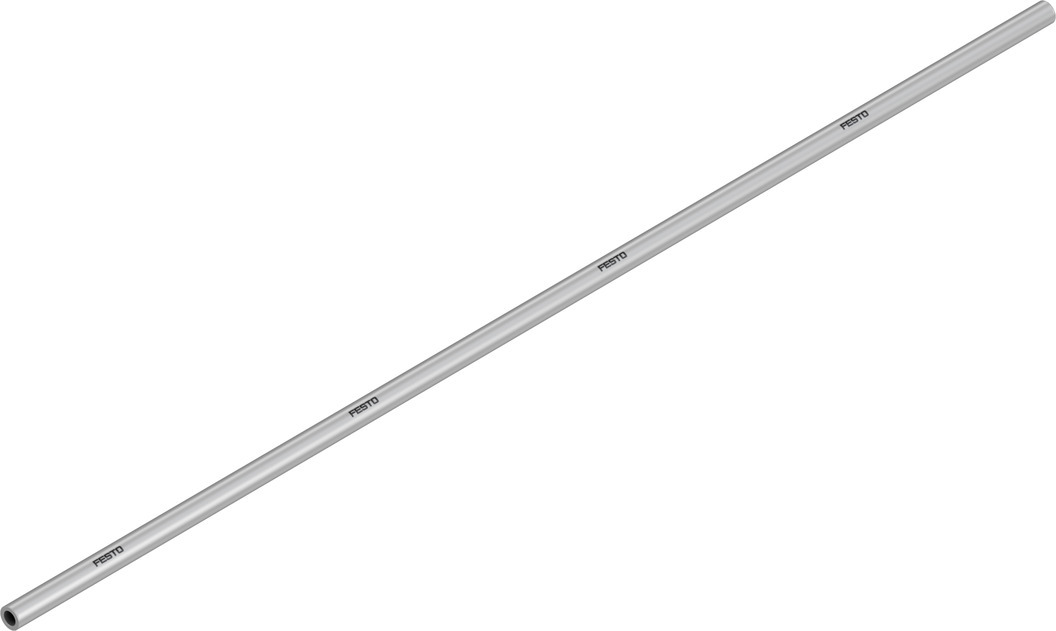

PUN-4X0,75-SI Plastic tubing

PUN-4X0,75-SI

$123.00
RRP $140.00
SAVE $17.00 (12%)


50 metre min order. Price is for a 50 metre roll.

152584

Technical Data

  • Outside diameter 4 mm
  • Flow-relevant bending radius 17 mm
  • Inside diameter 2.6 mm
  • Min. bending radius 8 mm
  • Instructions on useTPE-U Ester based The plastic tubing can only be installed in contact with cables if the sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged.
  • Tubing characteristicsSuitable for energy chains
  • Operating pressure complete temperature range - 0.095 MPa ... 0.7 MPa
  • Operating pressure complete temperature range  -0.95 bar ... 7 bar
  • Operating pressure complete temperature range -13.775 psi ... 101.5 psi
  • Temperature-dependent operating pressure -0.095 MPa ... 1 MPa
  • Temperature-dependent operating pressure -0.95 bar ... 10 bar
  • Temperature-dependent operating pressure -13.775 psi ... 145 psi
  • Approval German Technical Control Board (TÜV)
  • Certificate issuing authority B 013277 0506 00
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Fire test material UL94 HB
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature -35 °C ... 60 °C
  • Product weight according to length 0.0089 kg/m
  • Pneumatic connectionFor push-in connector O.D. 4 mm For barbed fitting I.D. 3 mm with union nut For barbed fitting I.D. 3 mm
  • ColourSilver
  • Shore hardness D 52 +/-3
  • Note on materials RoHS-compliant
  • Material tubing TPE-U(PU)





Plastic tubing

(152584)

SKU 152584
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
