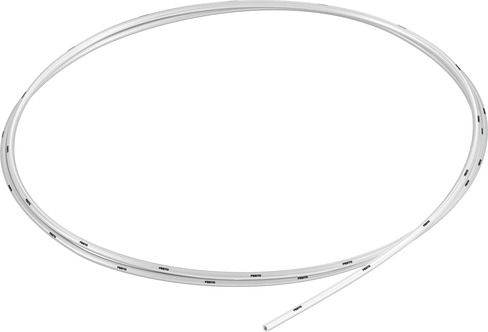

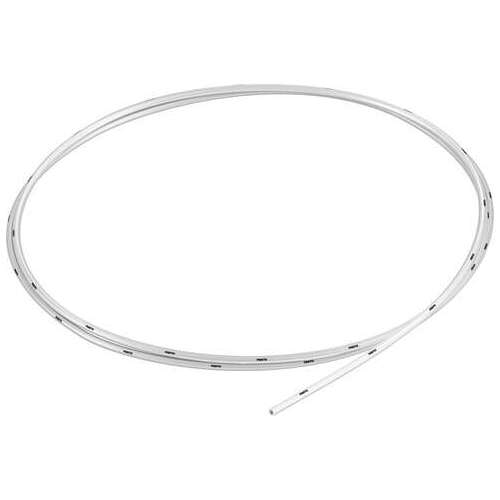

PUN-H-2X0,4-NT Plastic tubing tube 2mm PU clear natural colour

PUN-H-2X0,4-NT

$2.11
RRP $2.40
SAVE $0.29 (12%)


Plastic tubing 2mm PU Hose Tube - Colour NATURAL

PUN-H-2X0,4-NT

DATA SHEET

133038

GTIN: 4052568029210

The Global Trade Item Number (GTIN) is an international, unique number for labeling products.



OD-TUBING_EN.PDF

Data sheet Feature Value Outside diameter 2 mm Flow-relevant bending radius 8 mm Inside diameter 1.2 mm Min. bending radius 5 mm Instructions on use TPE-U Ether based Tubing characteristics Suitable for energy chains Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa Operating pressure complete temperature range -0.95 bar ... 6 bar Operating pressure complete temperature range -13.775 psi ... 87 psi Temperature-dependent operating pressure -0.095 MPa ... 1 MPa Temperature-dependent operating pressure -0.95 bar ... 10 bar Temperature-dependent operating pressure -13.775 psi ... 145 psi Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] LABS (PWIS) conformity VDMA24364-B2-L Cleanroom class Element installed statically, no meaningful evaluation possible according to ISO 14644-1 Ambient temperature -35 °C ... 60 °C Product weight according to length 0.0024 kg/m Pneumatic connection For push-in connector O.D. 2 mm Colour Natural Shore hardness D 52 +/-3 Note on materials RoHS-compliant Material tubing TPE-U(PU)

Plastic tubing

(133038)

SKU 133038
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
