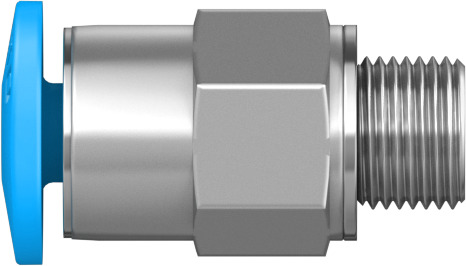

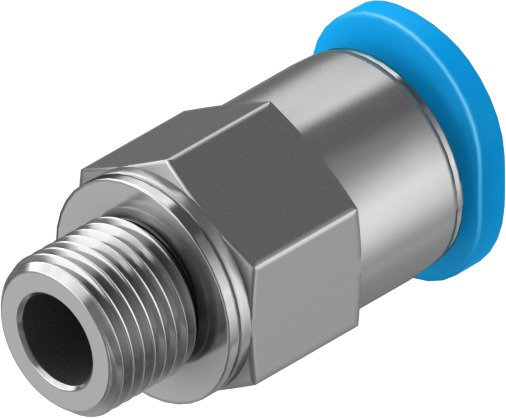

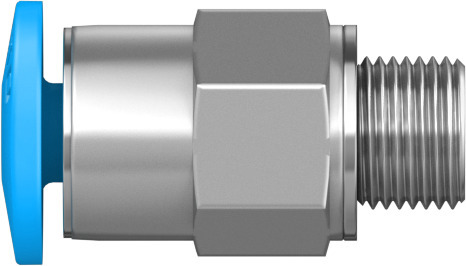

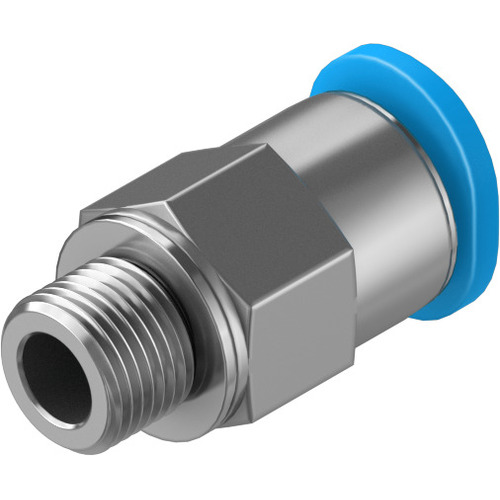

QSM-M5-2 Push-in fitting

QSM-M5-2

$7.33
RRP $8.20
SAVE $0.87 (11%)
In Stock


Push-in fitting

QSM-M5-2

133028

GTIN: 4052568029111

Downloads

QSM_EN.PDF

Technical data

Links

Spare parts

Pneumatic connection, port 1

Male thread M5

Pneumatic connection, port 2

For tubing outside diameter of 2 mm

Temperature-dependent operating pressure -0.95 bar - 14 bar

Ambient temperature -10 °C - 80 °C

Nominal size 1.1 mm

Push-in fitting

Technical Data

  • SizeMini
  • Nominal size 1.1 mm
  • Type of seal on screwed plug Sealing ring
  • Mounting position optional
  • Design Straight design
  • Size of pack10
  • Design Push-pull principle
  • Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa
  • Operating pressure complete temperature range -0.95 bar ... 6 bar
  • Operating pressure complete temperature range -13.775 psi ... 87 psi
  • Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa
  • Temperature-dependent operating pressure -0.95 bar ... 14 bar
  • Temperature-dependent operating pressure -13.775 psi ... 203 psi
  • Maritime classification See certificate
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot medium Lubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Ambient temperature -10 °C ... 80 °C
  • Nominal torque1.33 Nm
  • Tolerance for nominal tightening torque ± 20%
  • Product weight 2.2 g
  • Type of mounting External hexagon, size 7 mm
  • Pneumatic connection, port 1 Male thread M5
  • Pneumatic connection, port 2 For tubing outside diameter of 2 mm
  • Colour of release ring Blue
  • Note on materials RoHS-compliant
  • Material housing Brass, nickel-plated
  • Material release ring POM
  • Material tubing seal NBR
  • Material tubing clamp component High-alloy stainless steel

(133028)

SKU 133028
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
