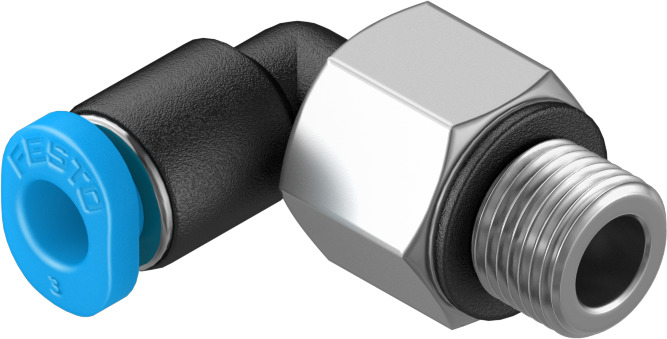

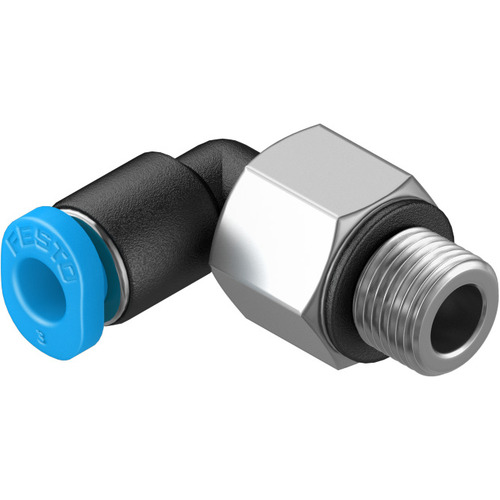

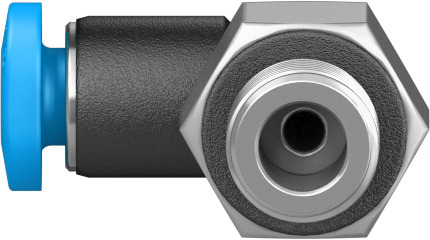

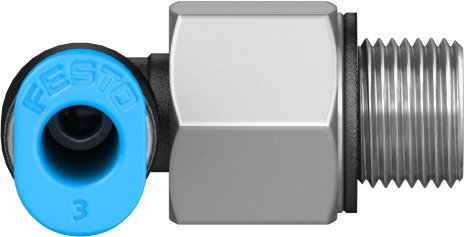

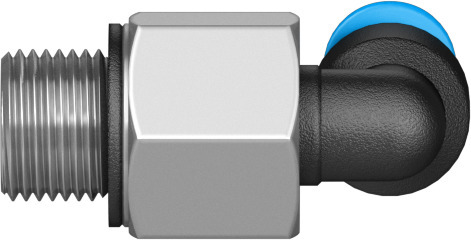

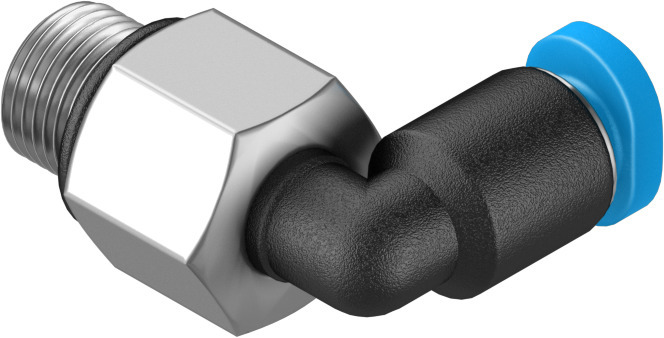

10x QSML-M5-3 Push-in L-fitting

QSML-M5-3

$78.00
RRP $87.00
SAVE $9.00 (10%)


MOQ x 10. Note this price is for a pack of 10

Technical Data

  • SizeMini
  • Nominal size1.5 mm
  • Type of seal on screwed plugSealing ring
  • Mounting positionoptional
  • DesignL-shape
  • Size of pack10
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
  • Operating pressure complete temperature range-0.95 bar ... 6 bar
  • Operating pressure complete temperature range-13.775 psi ... 87 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 14 bar
  • Temperature-dependent operating pressure-13.775 psi ... 203 psi
  • Maritime classificationSee certificate
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 80 °C
  • Nominal torque1.33 Nm
  • Tolerance for nominal tightening torque± 20%
  • Product weight2.8 g
  • Type of mountingExternal hexagon, A/F 8 mm
  • Pneumatic connection, port 1Male thread M5
  • Pneumatic connection, port 2For tubing outer diameter of 3 mm
  • Colour of release ringBlue
  • Material screwed plugNickel-plated brass
  • Note on materialsRoHS-compliant
  • Material housingPBT
  • Material release ringPOM
  • Material tubing sealNBR
  • Material tubing clamp componentHigh-alloy stainless steel

Push-in L-fitting

(153331)

SKU 153331
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
