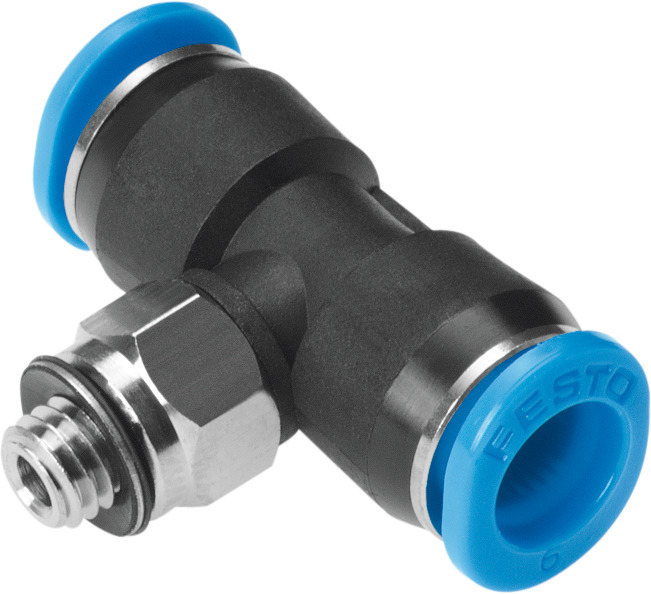

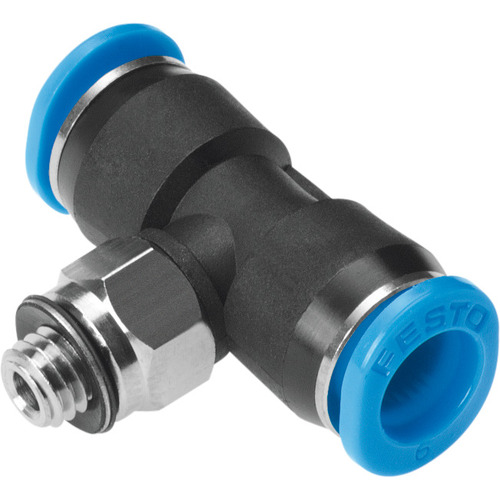

QSMT-M5-6-100 Push-in T-fitting

QSMT-M5-6-100

Price On Application

Push-in T-fitting

QSMT-M5-6-100

130785

GTIN: 4052568025069



QSM_EN.PDF

Push-in T-fitting

Feature Value Size Mini Nominal size 2.1 mm Type of seal on screwed plug Sealing ring Mounting position optional Design T-shape Size of pack 100 Design Push-pull principle Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa Operating pressure complete temperature range -0.95 bar ... 6 bar Operating pressure complete temperature range -13.775 psi ... 87 psi Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa Temperature-dependent operating pressure -0.95 bar ... 14 bar Temperature-dependent operating pressure -13.775 psi ... 203 psi Maritime classification See certificate Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] Note on operating and pilot medium Lubricated operation possible Corrosion resistance class CRC 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature -10 °C ... 80 °C Nominal torque 1.33 Nm Tolerance for nominal tightening torque ± 20% Product weight 5.6 g Number of outputs 2 Number of supply lines 1 Type of mounting External hexagon, A/F 8 mm Pneumatic connection, port 1 Male thread M5 Pneumatic connection, port 2 For tubing outside diameter of 6 mm Colour of release ring Blue Note on materials RoHS-compliant Material housing PBT Material release ring POM Material tubing seal NBR Material tubing clamp component High-alloy stainless steel

(130785)

SKU 130785
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
