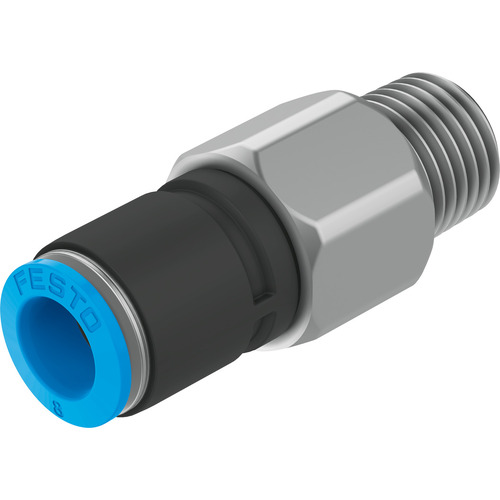

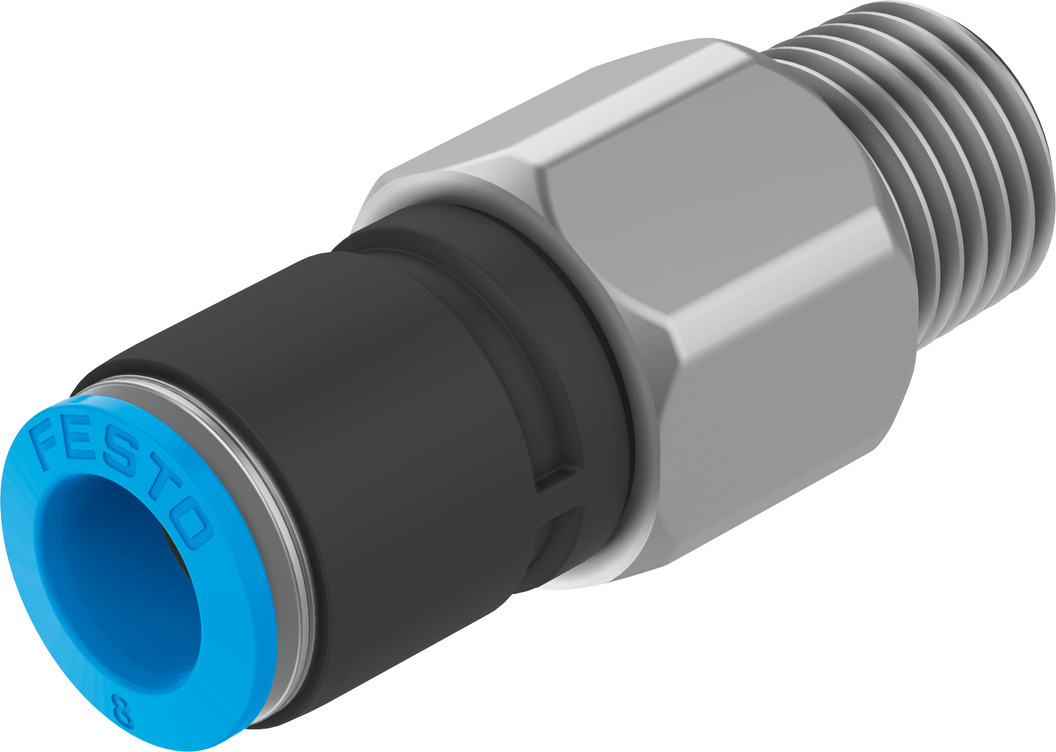

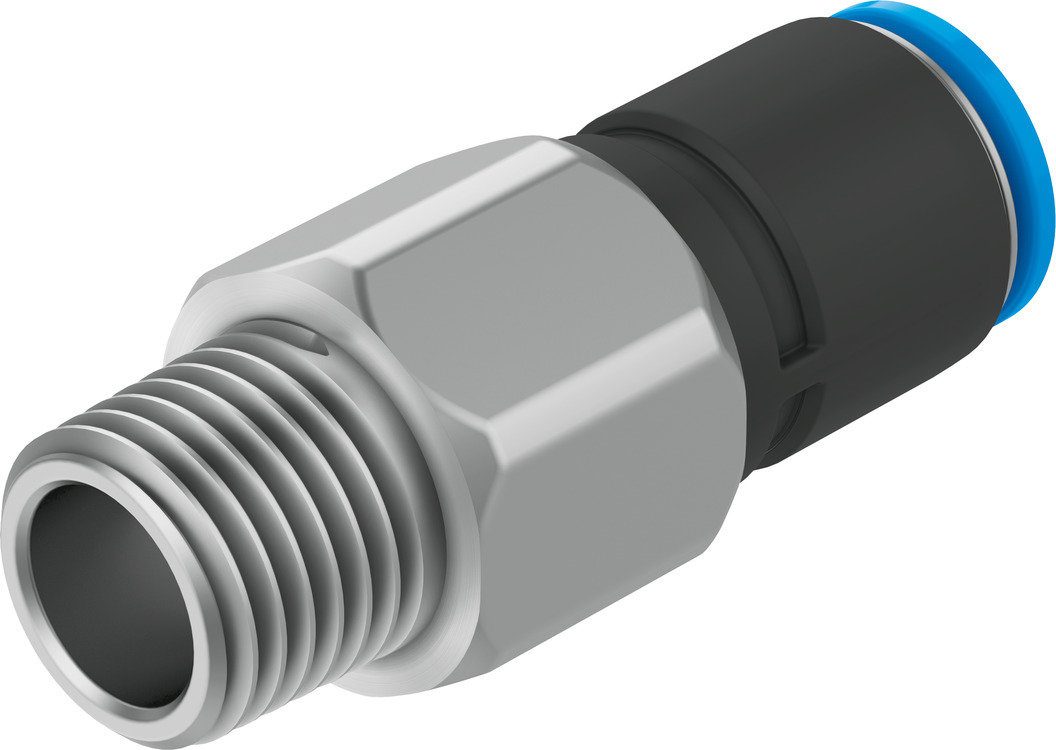

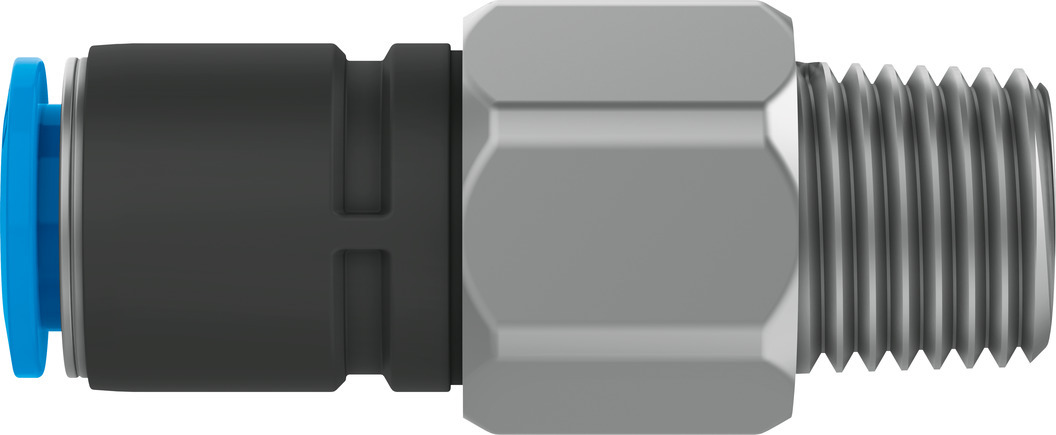

QSR-3/8-8 Push-in fitting, rotatable

QSR-3/8-8

$58.74
RRP $62.00
SAVE $3.26 (5%)


Push-in fitting, rotatable

QSR-3/8-8

153406

GTIN: 4052568070571

Downloads



FUNCTION-FITTINGS_EN.PDF

Technical data

Links

Spare parts



Pneumatic connection, port 1

Male thread R3/8

Pneumatic connection, port 2

For tubing outside diameter of 8 mm

Ambient temperature 0 °C - 60 °C

Nominal size 5 mm

Temperature-dependent operating pressure -0.95 bar - 14 bar



Push-in fitting, rotatable

Technical Data

  • Size Standard
  • Nominal size 5 mm
  • Type of seal on screwed plug Coating
  • Mounting position optional
  • Design Straight design
  • Size of pack 1
  • Design Push-pull principle
  • Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa
  • Operating pressure complete temperature range -0.95 bar ... 6 bar
  • Operating pressure complete temperature range -13.775 psi ... 87 psi
  • Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa
  • Temperature-dependent operating pressure -0.95 bar ... 14 bar
  • Temperature-dependent operating pressure -13.775 psi ... 203 psi
  • Max. rotational speed 400 rpm
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot medium Lubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Ambient temperature 0 °C ... 60 °C
  • Max. radial torque 0.015 Nm
  • Nominal torque 15.5 Nm
  • Tolerance for nominal tightening torque ± 20%
  • Product weight 39 g
  • Type of mountingExternal hexagon, size 17 mm
  • Pneumatic connection, port 1 Male thread R3/8
  • Pneumatic connection, port 2 For tubing outside diameter of 8 mm
  • Colour of release ring Blue
  • Material screwed plug Nickel-plated brass
  • Note on materials RoHS-compliant
  • Material housing PBT
  • Material release ring POM
  • Material tubing seal NBR
  • Material tubing clamp component High-alloy stainless steel

(153406)

SKU 153406
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
