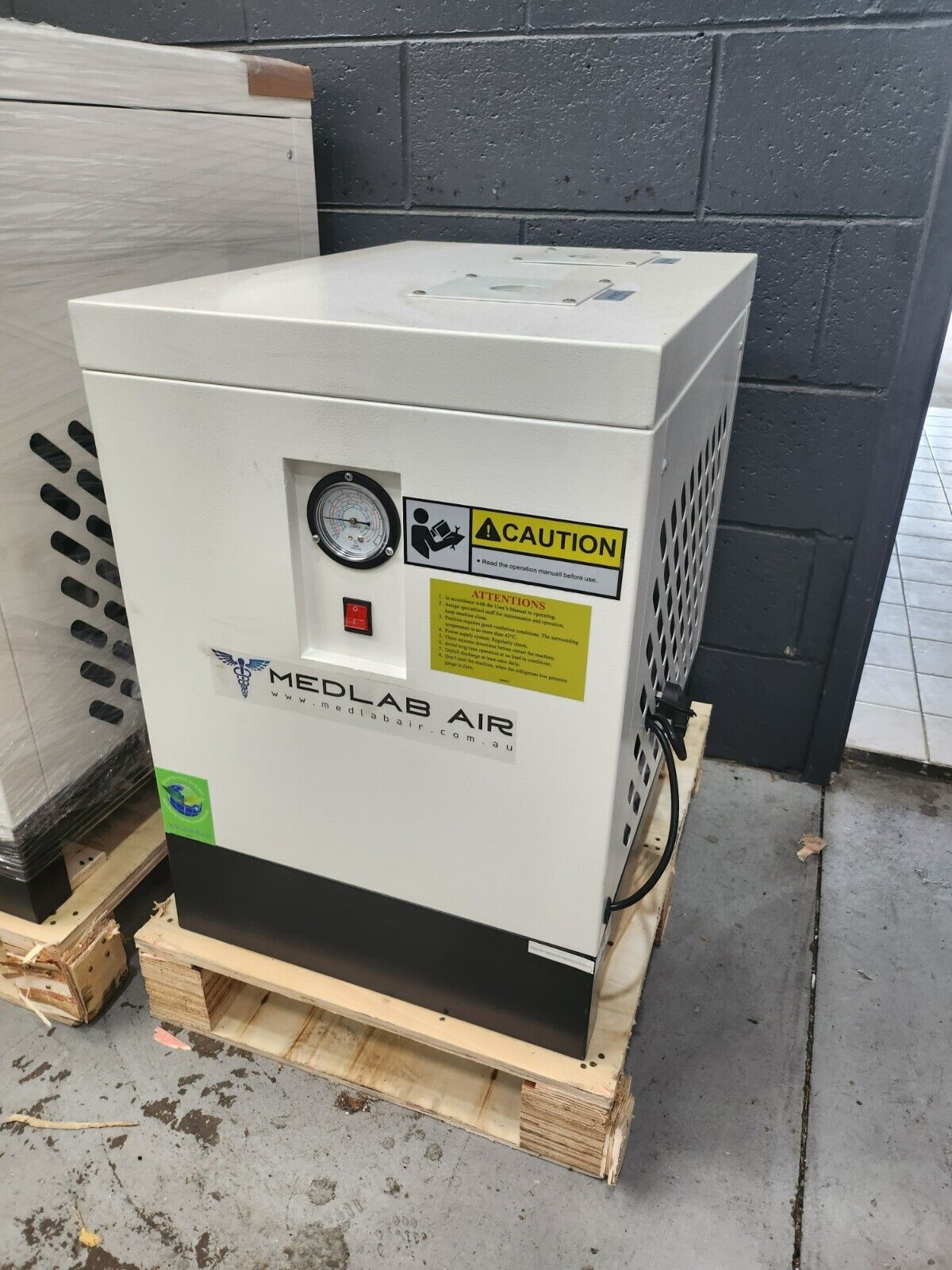

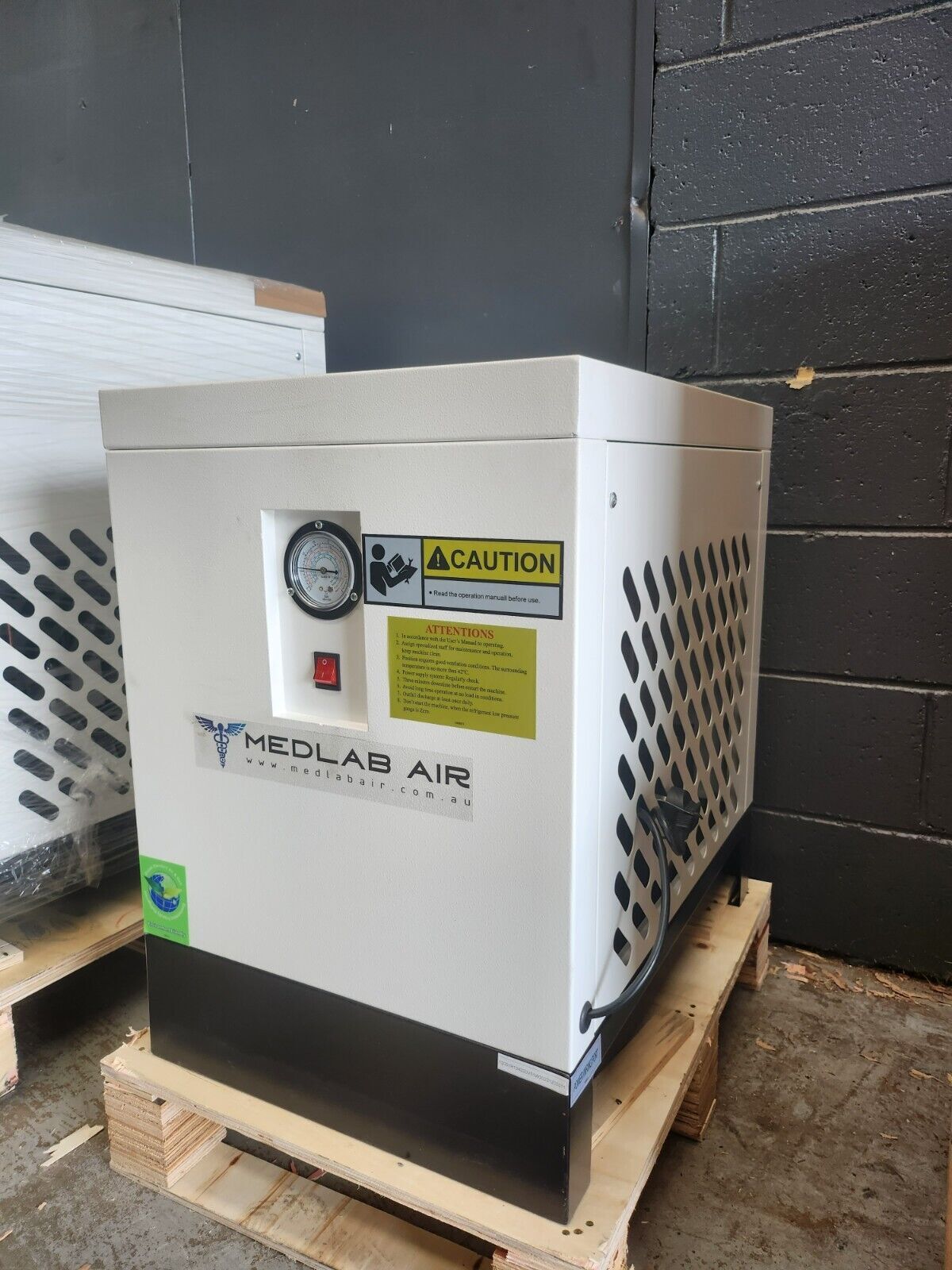

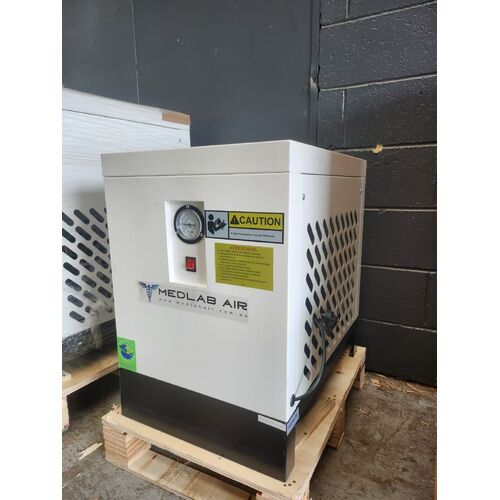

Refrigerated Air Dryer 3C dewpoint @ 61CFM remove water from compressed air

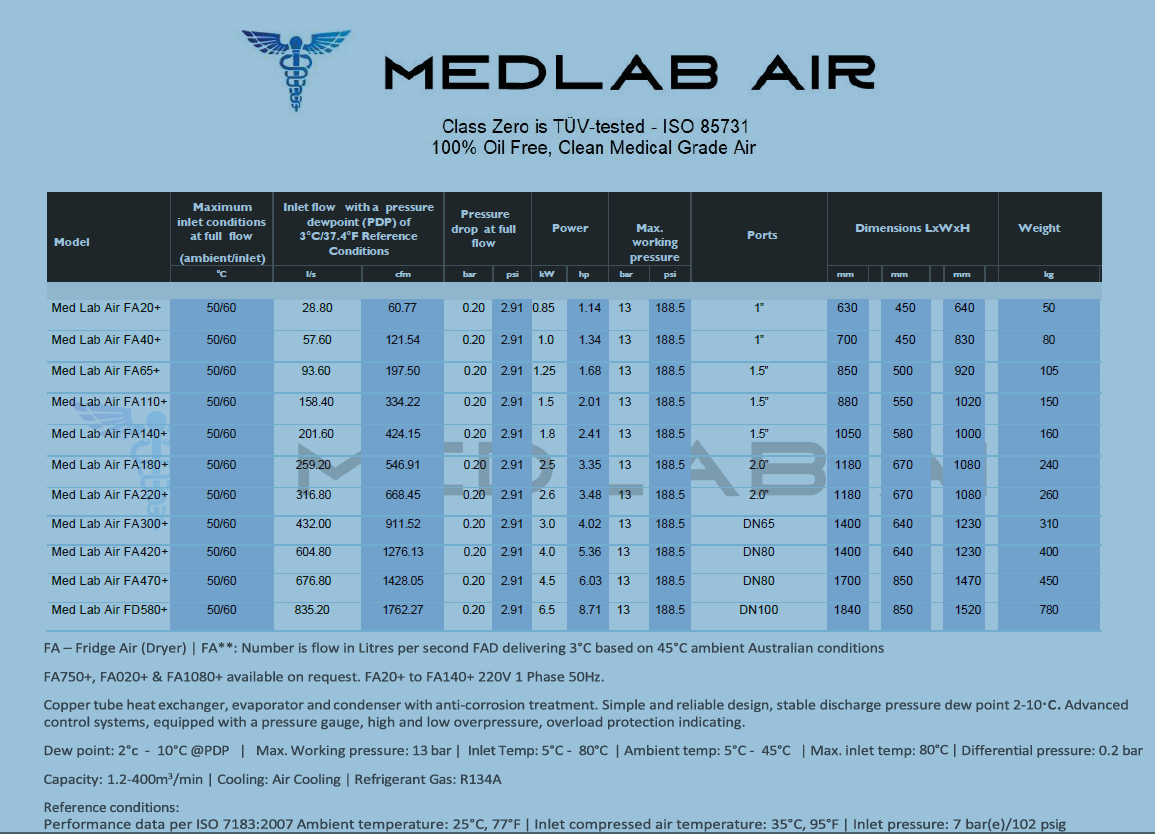

| Flow Capacity: | 28.8 L/S - 61 CFM for 3C dewpoint 39L/S - 75CFM for 10C dewpoint |

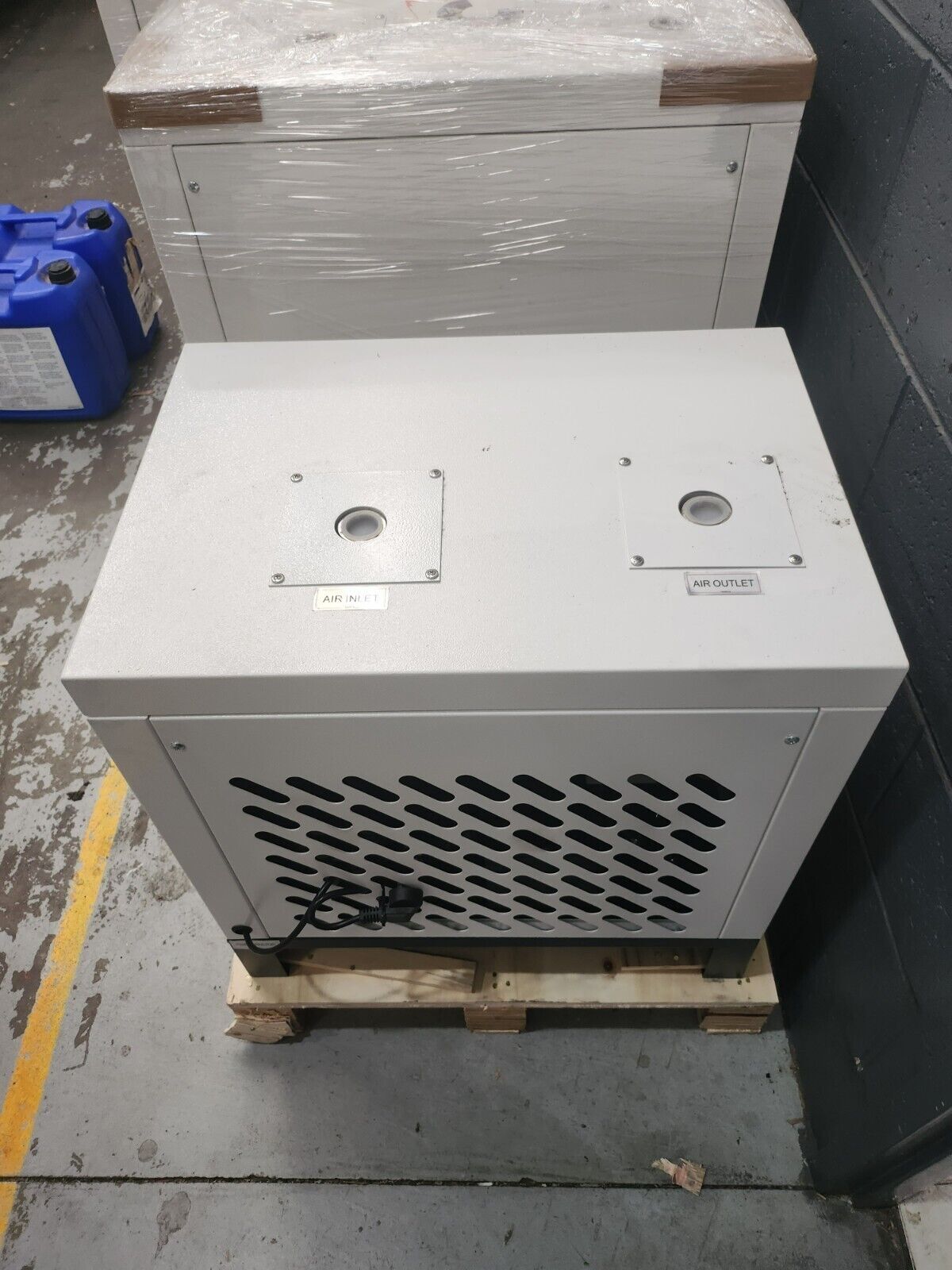

| Inlet & Outlet Pipe Size : | 1" (25mm) |

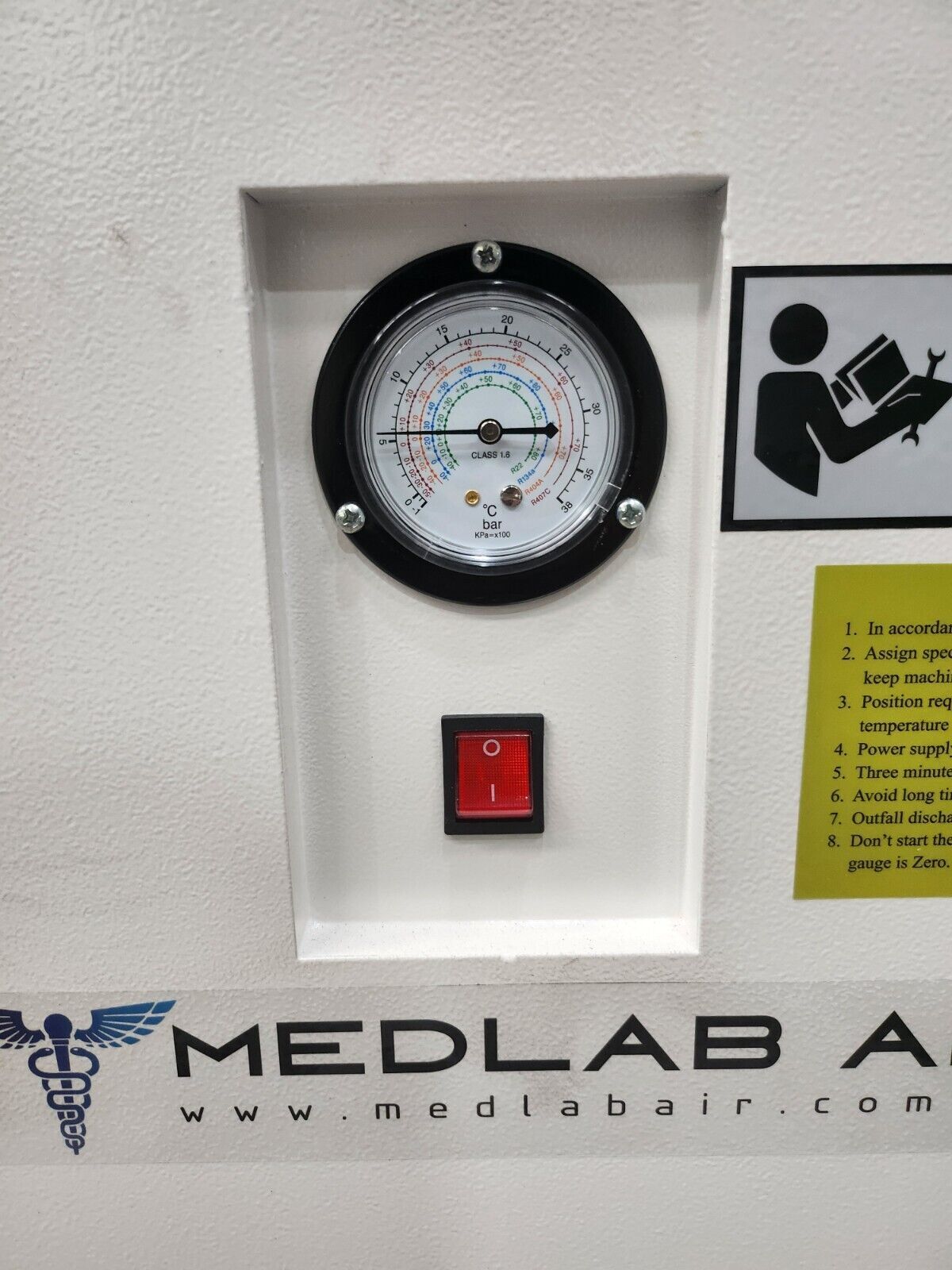

| Evaporation Temperature Gauge : | Yes |
| Design Pressure : | 10 Bar /147 PSI |
| Max Working Pressure : | 13 Bar /192 PSI |
| Max Pressure: | 16 Bar / 250 PSI |
| Dew Point : | 3-10 Degrees C |
| Max Rated Inlet Temperature : | 80 Degrees C |
| Max Ambient Temperature : | 45 Degrees C |
| Aftercooler : | Copper Heat Exchanger |
| Chassis Enclosure : | Powder Coated |
| Voltage : | 220V |
| Power Source Type : | 10 amp Plug |
| Weight : | 50kg |
| Dimensions : | 630 x 450 x 640 mm |
| Weight / Shipping Weight: | 50kg / 65kg |
| Shipping Dimensions: | 850 x 500 x 750 mm |
| Note: Fittings not Included |
What Is Dew Point of Compressed Air?
Lowe dewpoint means LESS water. For spray painting you need 3°C. If you just need to remove water 10°C dewpoint will work.
The dew point of compressed air can be defined as the temperature at which water vapour suspended in the air can start condensing into liquid form at an equal rate as it is evaporating. This fixed temperature is the point at which the air is fully saturated with water and can no longer hold any more vapourised water except some of the vapor it contains condenses.
What Is Dew Point Temperature of Compressed Air?
The dew point temperature of compressed air is the temperature at which water begins to condense out of the air into a liquid form. This temperature varies between compressor systems and is usually measured between 3°C to 10°C.
Specific compressed air moisture sensors can be installed to monitor instrument air dew point temperatures and alert operators when it exceeds a pre-programmed level. Continuous dew point temperature monitoring is critical to preserving moisture-sensitive equipment components from damage.

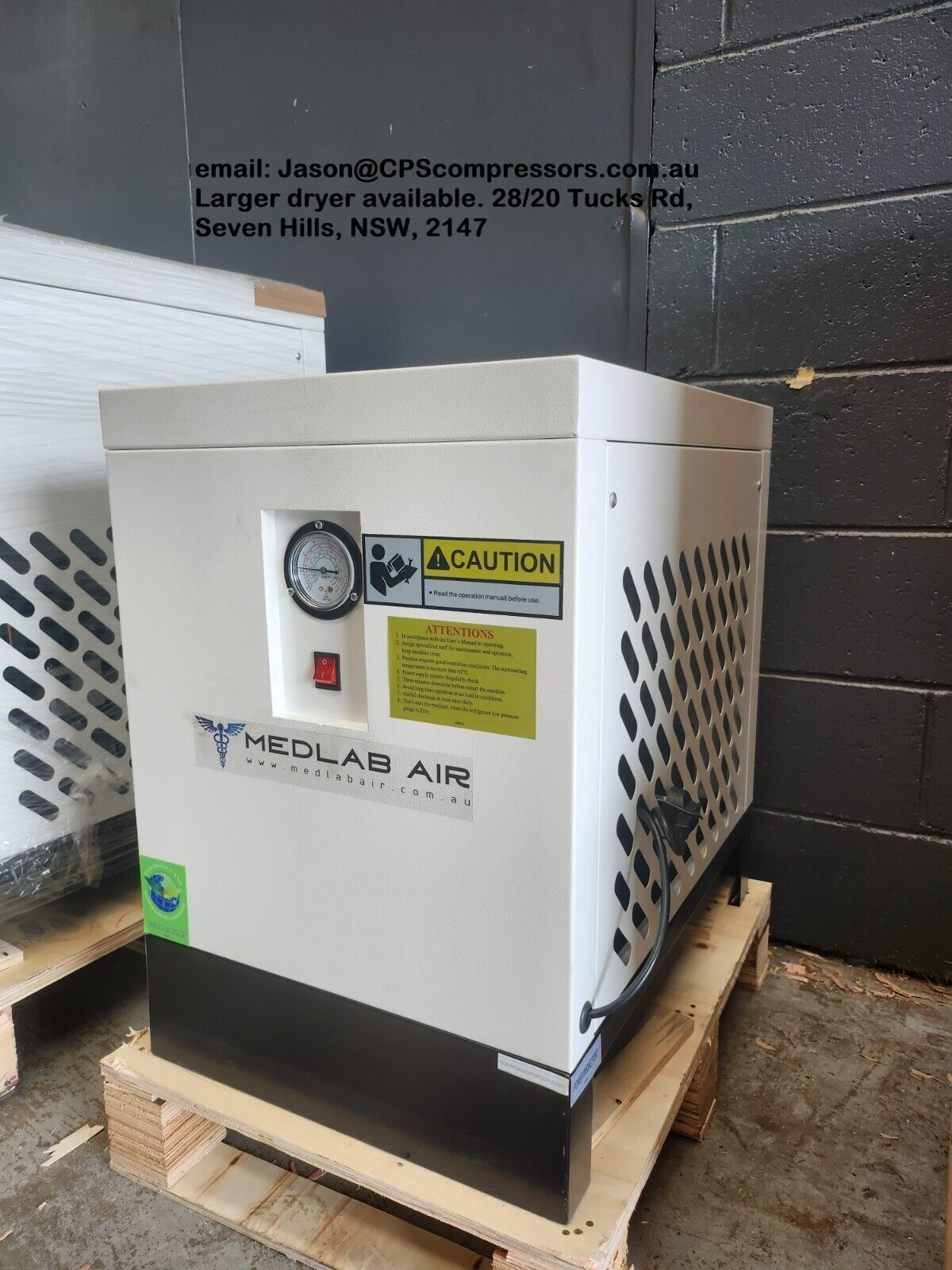

Pick up is okay, just contact us. 28/20 Tucks Road, Seven Hills, Sydney, NSW, 2147.
We have all different sizes of dryer and inline filters. Don't know what you need? Contact us and we can help. Let us know size of your compressor and what you are using the air for and we can advise. Air Compressors also available. DENAIR AUSTRALIA
(N16)
| SKU | N16 |
| Brand | Unbranded |
| Shipping Weight | 75.0000kg |
| Shipping Width | 0.560m |
| Shipping Height | 0.750m |
| Shipping Length | 0.850m |
| Unit Of Measure | ea |
