2906 0658 00 SEAL KIT.

SEAL KIT.

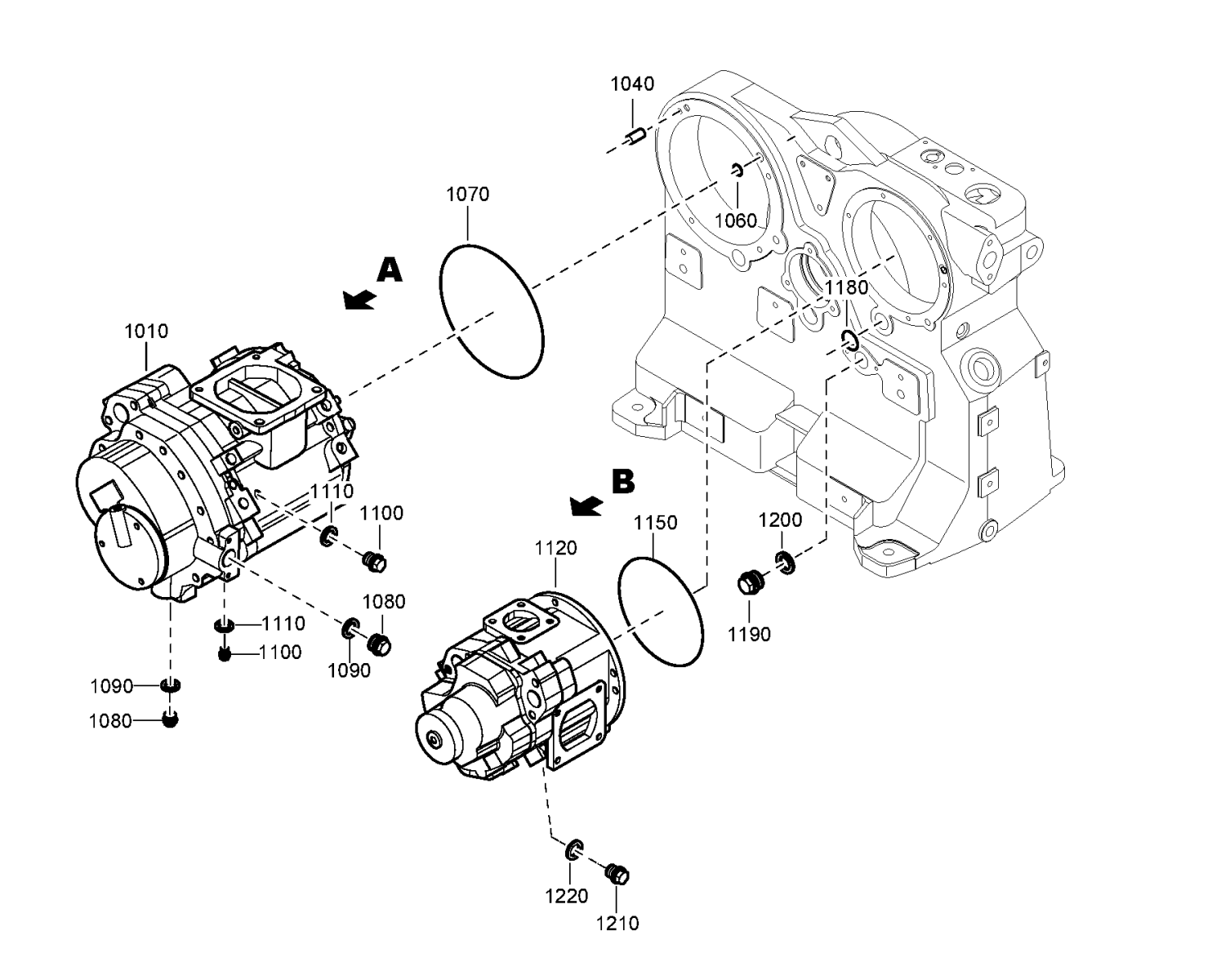

Ref Part Number Qty Name Validity
1010 1616 7472 81 1 O.F.S. I-41 (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1020 0147 1402 03 2 BOLT M12*35 FZB (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1030 0147 1408 03 2 BOLT M12*65 FZB (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1040 0101 1951 50 1 PIN (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1050 0663 3132 00 2 O-RING (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1060 0663 2111 93 1 O-RING (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1070 0663 2103 20 1 O-RING (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1080 0686 3716 07 2 PLUG 1 (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1090 2 SEAL WASHER DOWTY 1" (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
 Service kits: 2906 0658 00 - GEARCASING SEAL KIT
1100 0686 3716 01 2 PLUG 1/4 A A (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1110 0661 1000 38 2 SEAL WASHER DOWTY 1/4 (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1120 1616 6770 81 1 O.F.S. E-21 (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1130 0147 1368 03 4 HEXAGON BOLT (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1140 0147 1363 03 2 BOLT M10*30 FZB (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1150 0663 2103 19 1 O-RING (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1160 0101 1951 50 1 PIN (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1170 0663 2111 93 1 O-RING (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1180 0663 3132 00 1 O-RING (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1190 0686 3716 07 1 PLUG 1 (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1200 0661 1000 44 1 SEAL WASHER DOWTY 1" (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1210 0686 3716 01 1 PLUG 1/4 A A (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
(13/04/2022 - ...)
1220 0661 1000 38 1 SEAL WASHER DOWTY 1/4 (29/01/2022 - 12/04/2022) MODEL:ZT90VSDCW3 + PRESS:8.6BAR
