1089 0580 03 SOLENOID VALVE-50-60 HZ VSD

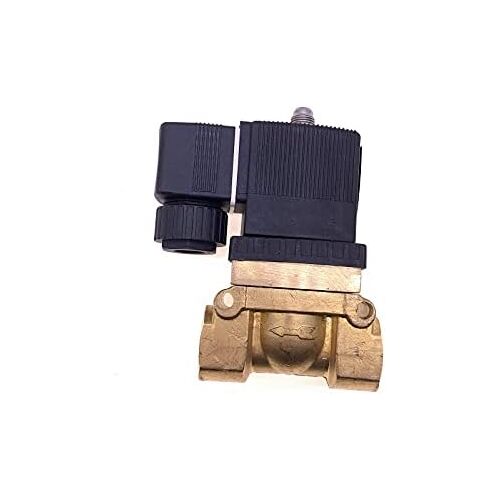

SOLENOID VALVE-50-60 HZ VSD 110V replacement

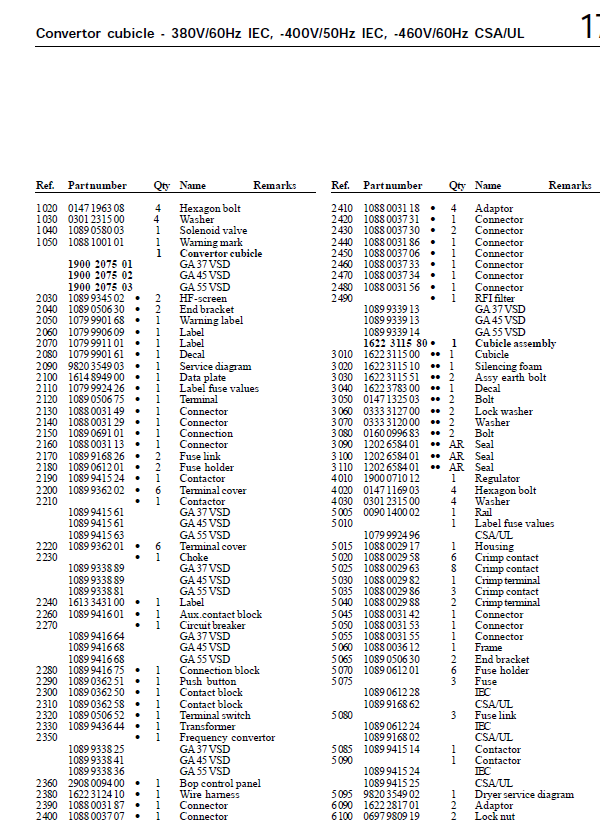

Ref. Part number Qty Name Remarks
1020 0147 1963 08 4 Hexagon bolt
1030 0301 2315 00 4 Washer
1040 1089 0580 03 1 Solenoid valve
1050 1088 1001 01 1 Warning mark
1 Convertor cubicle
1900 2075 01 GA 37 VSD
1900 2075 02 GA 45 VSD
1900 2075 03 GA 55 VSD
2030 1089 9345 02 • 2 HF-screen
2040 1089 0506 30 • 2 End bracket
2050 1079 9901 68 • 1 Warning label
2060 1079 9906 09 • 1 Label
2070 1079 9911 01 • 1 Label
2080 1079 9901 61 • 1 Decal
2090 9820 3549 03 • 1 Service diagram
2100 1614 8949 00 • 1 Data plate
2110 1079 9924 26 • 1 Label fuse values
2120 1089 0506 75 • 1 Terminal
2130 1088 0031 49 • 1 Connector
2140 1088 0031 29 • 1 Connector
2150 1089 0691 01 • 1 Connection
2160 1088 0031 13 • 1 Connector
2170 1089 9168 26 • 2 Fuse link
2180 1089 0612 01 • 2 Fuse holder
2190 1089 9415 24 • 1 Contactor
2200 1089 9362 02 • 6 Terminal cover
2210 • 1 Contactor
1089 9415 61 GA 37 VSD
1089 9415 61 GA 45 VSD
1089 9415 63 GA 55 VSD
2220 1089 9362 01 • 6 Terminal cover
2230 • 1 Choke
1089 9338 89 GA 37 VSD
1089 9338 89 GA 45 VSD
1089 9338 81 GA 55 VSD
2240 1613 3431 00 • 1 Label
2260 1089 9416 01 • 1 Aux.contact block
2270 • 1 Circuit breaker
1089 9416 64 GA 37 VSD
1089 9416 68 GA 45 VSD
1089 9416 68 GA 55 VSD
2280 1089 9416 75 • 1 Connection block
2290 1089 0362 51 • 1 Push button
2300 1089 0362 50 • 1 Contact block
2310 1089 0362 58 • 1 Contact block
2320 1089 0506 52 • 1 Terminal switch
2330 1089 9436 44 • 1 Transformer
2350 • 1 Frequency convertor
1089 9338 25 GA 37 VSD
1089 9338 41 GA 45 VSD
1089 9338 36 GA 55 VSD
2360 2908 0094 00 • 1 Bop control panel
2380 1622 3124 10 • 1 Wire harness
2390 1088 0031 87 • 1 Connector
2400 1088 0037 07 • 1 Connector
Ref. Part number Qty Name Remarks
2410 1088 0031 18 • 4 Adaptor
2420 1088 0037 31 • 1 Connector
2430 1088 0037 30 • 2 Connector
2440 1088 0031 86 • 1 Connector
2450 1088 0037 06 • 1 Connector
2460 1088 0037 33 • 1 Connector
2470 1088 0037 34 • 1 Connector
2480 1088 0031 56 • 1 Connector
2490 • 1 RFI filter
1089 9339 13 GA 37 VSD
1089 9339 13 GA 45 VSD
1089 9339 14 GA 55 VSD
1622 3115 80 • 1 Cubicle assembly
3010 1622 3115 00 •• 1 Cubicle
3020 1622 3115 10 •• 1 Silencing foam
3030 1622 3115 51 •• 2 Assy earth bolt
3040 1622 3783 00 •• 1 Decal
3050 0147 1325 03 •• 2 Bolt
3060 0333 3127 00 •• 2 Lock washer
3070 0333 3120 00 •• 2 Washer
3080 0160 0996 83 •• 2 Bolt
3090 1202 6584 01 •• AR Seal
3100 1202 6584 01 •• AR Seal
3110 1202 6584 01 •• AR Seal
4010 1900 0710 12 1 Regulator
4020 0147 1169 03 4 Hexagon bolt
4030 0301 2315 00 4 Washer
5005 0090 1400 02 1 Rail
5010 1 Label fuse values
1079 9924 96 CSA/UL
5015 1088 0029 17 1 Housing
5020 1088 0029 58 6 Crimp contact
5025 1088 0029 63 8 Crimp contact
5030 1088 0029 82 1 Crimp terminal
5035 1088 0029 86 3 Crimp contact
5040 1088 0029 88 2 Crimp terminal
5045 1088 0031 42 1 Connector
5050 1088 0031 53 1 Connector
5055 1088 0031 55 1 Connector
5060 1088 0036 12 1 Frame
5065 1089 0506 30 2 End bracket
5070 1089 0612 01 6 Fuse holder
5075 3 Fuse
1089 0612 28 IEC
1089 9168 62 CSA/UL
5080 3 Fuse link
1089 0612 24 IEC
1089 9168 02 CSA/UL
5085 1089 9415 14 1 Contactor
5090 1 Contactor
1089 9415 24 IEC
1089 9415 25 CSA/UL
5095 9820 3549 02 1 Dryer service diagram
6090 1622 2817 01 2 Adaptor
6100 0697 9809 19 2 Lock nut
