Stage 1 Inline coalescent filter 0.1 Micron through put 40l/s, G1"

Stage 1 Inline coalescent filter 0.1 Micron through put 40l/s, G1"

Med Lab Air inline ISO Standard Filters.

This is for complete filter housing with inline internal filter and float ball drain included on pre & post filters. with ball valve for drain.

AF-(L/M or X) - Flow in L/S - Port Size inch

L = Pre Filter

M = Post Filter

X = After Filter

Air line filter (L)  For removal of liquid water and oil; removes solid particles to 1 micron (1.0 ppm w/w maximum remaining oil content)

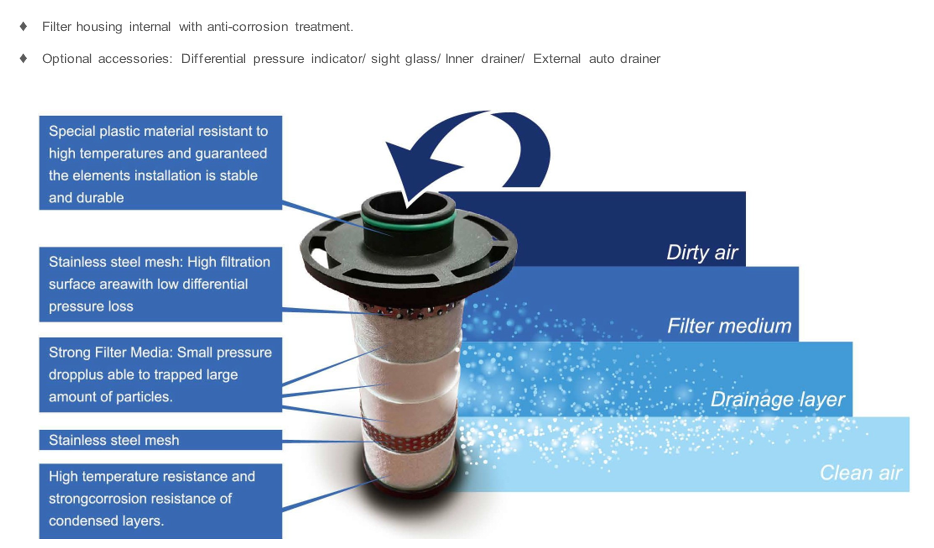

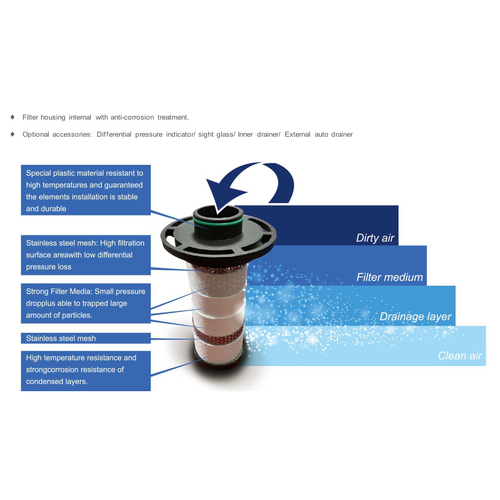

Corrosion resistant inner and outer cores. Two-stage filtration

• First stage: captures larger particles with alternate layers of fibre media and media screen.
• Second stage: coalesces aerosols and captures solid particles with multiple layers of epoxy bonded, blended fiber media.

High efficiency oil removal filter (M)  For coalescing fine water and oil aerosols; removes sol1d particles to 0.01 micron (0.01 ppm w/w maximum remaining oil content).

Corrosion resistant inner and outer cores. Two stage filtration

• First stage: multiple layers of bonded, blended fiber media for fine coalescence.
• Second stage: multiple layers of bonded, blended fiber media for fine coalescence.

Outer coated, closed cell foam sleeve.

Oilvapour removal filter (X)  For removal of oil and hydrocarbon vapors normally absorbable by activated carbon; removes solid particles to 0.01 micron (0.003 ppm w/w maximum remaining oil content).

Corrosion resistant inner and outer cores. Two stage filtration

• First stage: a stabilized bed of finely divided carbon particles removes the majority of the oil vapor
• Second stage: multiple layers of fiber media with bonded micro fine carbon particles removes the remaining oil vapor
• Multiple layers of fine media prevent particle migration Outer coated, closed cell foam sleeve prevents fiber migration
