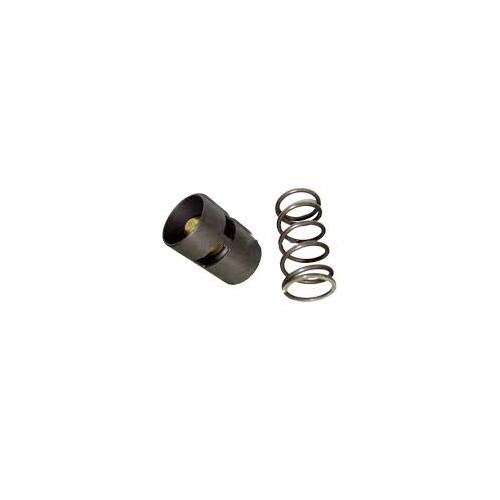

3001-5311-51 Thermostatic Valve Suitable for Atlas Copco Compressor 3001531151 65 Deg C

1623 9997 00 / 1623 1476 02 /

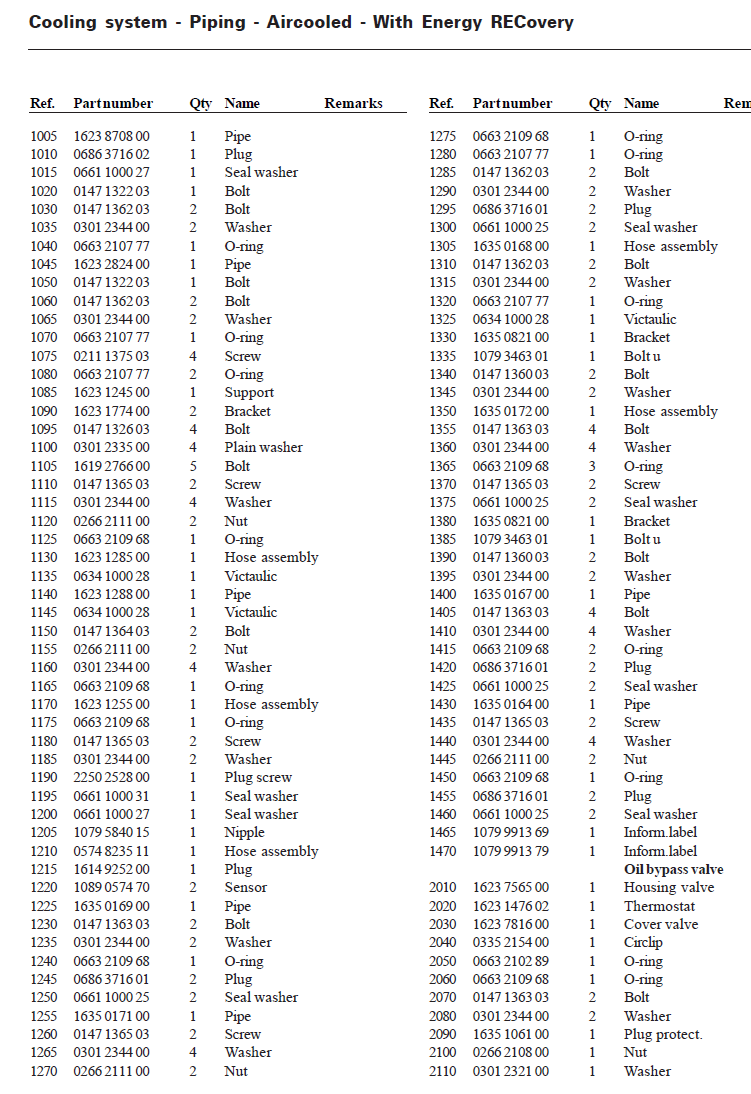

1005 1623 8708 00 1 Pipe
1010 0686 3716 02 1 Plug
1015 0661 1000 27 1 Seal washer
1020 0147 1322 03 1 Bolt
1030 0147 1362 03 2 Bolt
1035 0301 2344 00 2 Washer
1040 0663 2107 77 1 O-ring
1045 1623 2824 00 1 Pipe
1050 0147 1322 03 1 Bolt
1060 0147 1362 03 2 Bolt
1065 0301 2344 00 2 Washer
1070 0663 2107 77 1 O-ring
1075 0211 1375 03 4 Screw
1080 0663 2107 77 2 O-ring
1085 1623 1245 00 1 Support
1090 1623 1774 00 2 Bracket
1095 0147 1326 03 4 Bolt
1100 0301 2335 00 4 Plain washer
1105 1619 2766 00 5 Bolt
1110 0147 1365 03 2 Screw
1115 0301 2344 00 4 Washer
1120 0266 2111 00 2 Nut
1125 0663 2109 68 1 O-ring
1130 1623 1285 00 1 Hose assembly
1135 0634 1000 28 1 Victaulic
1140 1623 1288 00 1 Pipe
1145 0634 1000 28 1 Victaulic
1150 0147 1364 03 2 Bolt
1155 0266 2111 00 2 Nut
1160 0301 2344 00 4 Washer
1165 0663 2109 68 1 O-ring
1170 1623 1255 00 1 Hose assembly
1175 0663 2109 68 1 O-ring
1180 0147 1365 03 2 Screw
1185 0301 2344 00 2 Washer
1190 2250 2528 00 1 Plug screw
1195 0661 1000 31 1 Seal washer
1200 0661 1000 27 1 Seal washer
1205 1079 5840 15 1 Nipple
1210 0574 8235 11 1 Hose assembly
1215 1614 9252 00 1 Plug
1220 1089 0574 70 2 Sensor
1225 1635 0169 00 1 Pipe
1230 0147 1363 03 2 Bolt
1235 0301 2344 00 2 Washer
1240 0663 2109 68 1 O-ring
1245 0686 3716 01 2 Plug
1250 0661 1000 25 2 Seal washer
1255 1635 0171 00 1 Pipe
1260 0147 1365 03 2 Screw
1265 0301 2344 00 4 Washer
1270 0266 2111 00 2 Nut
Ref. Part number Qty Name Remarks
1275 0663 2109 68 1 O-ring
1280 0663 2107 77 1 O-ring
1285 0147 1362 03 2 Bolt
1290 0301 2344 00 2 Washer
1295 0686 3716 01 2 Plug
1300 0661 1000 25 2 Seal washer
1305 1635 0168 00 1 Hose assembly
1310 0147 1362 03 2 Bolt
1315 0301 2344 00 2 Washer
1320 0663 2107 77 1 O-ring
1325 0634 1000 28 1 Victaulic
1330 1635 0821 00 1 Bracket
1335 1079 3463 01 1 Bolt u
1340 0147 1360 03 2 Bolt
1345 0301 2344 00 2 Washer
1350 1635 0172 00 1 Hose assembly
1355 0147 1363 03 4 Bolt
1360 0301 2344 00 4 Washer
1365 0663 2109 68 3 O-ring
1370 0147 1365 03 2 Screw
1375 0661 1000 25 2 Seal washer
1380 1635 0821 00 1 Bracket
1385 1079 3463 01 1 Bolt u
1390 0147 1360 03 2 Bolt
1395 0301 2344 00 2 Washer
1400 1635 0167 00 1 Pipe
1405 0147 1363 03 4 Bolt
1410 0301 2344 00 4 Washer
1415 0663 2109 68 2 O-ring
1420 0686 3716 01 2 Plug
1425 0661 1000 25 2 Seal washer
1430 1635 0164 00 1 Pipe
1435 0147 1365 03 2 Screw
1440 0301 2344 00 4 Washer
1445 0266 2111 00 2 Nut
1450 0663 2109 68 1 O-ring
1455 0686 3716 01 2 Plug
1460 0661 1000 25 2 Seal washer
1465 1079 9913 69 1 Inform.label
1470 1079 9913 79 1 Inform.label

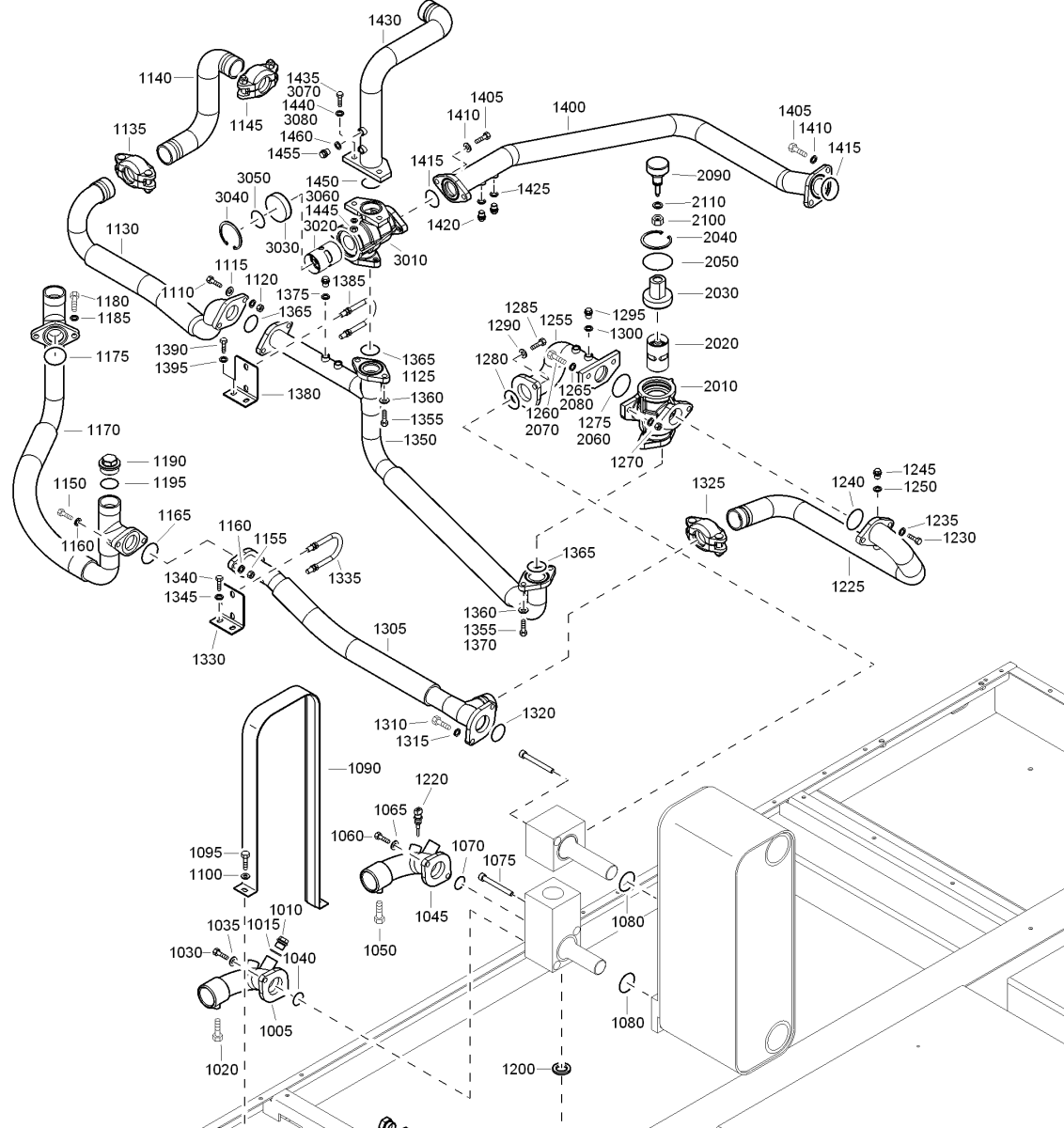

Oil bypass valve
2010 1623 7565 00 1 Housing valve
2020 1623 1476 02 1 Thermostat
2030 1623 7816 00 1 Cover valve
2040 0335 2154 00 1 Circlip
2050 0663 2102 89 1 O-ring
2060 0663 2109 68 1 O-ring
2070 0147 1363 03 2 Bolt
2080 0301 2344 00 2 Washer
2090 1635 1061 00 1 Plug protect.
2100 0266 2108 00 1 Nut
2110 0301 2321 00 1 Washer

1623 7683 00 1 Hose assembly
1020 0147 1363 03 6 Hex. head screw
1025 0301 2344 00 4 Plain washer
1030 0663 2109 68 4 O-ring
1035 0301 2344 00 2 Plain washer
1040 1623 7394 00 1 Hose assembly
1045 0147 1363 03 4 Hex. head screw
1050 0301 2344 00 4 Plain washer
1055 0346 1000 53 1 Clamp
1060 0147 1246 03 1 Hexagon bolt
1065 1623 7682 00 1 Hose assembly
1070 0147 1363 03 2 Hex. head screw
1075 0301 2344 00 2 Plain washer
1080 0663 2109 68 1 O-ring
1085 0147 1363 03 2 Hex. head screw
1090 0301 2344 00 2 Plain washer
1095 0663 2109 68 1 O-ring
1100 1623 9363 00 1 Hose assembly
1105 0147 1363 03 2 Hex. head screw
1110 0301 2344 00 2 Plain washer
1115 0663 2109 68 1 O-ring
1120 0147 1363 03 2 Hex. head screw
1125 0301 2344 00 2 Plain washer
1130 0663 2109 68 1 O-ring
1 Filter assembly
2005 1623 7494 00 • 1 Housing filter
2010 0211 1363 03 • 2 Hex. sock. screw
2015 1623 1451 00 • 2 Nipple
2020 1621 7378 00 • 2 Glass fiber oil filter
2025 0603 4102 03 • 1 Nipple
2030 0852 0010 36 • 1 Ball valve
2035 0661 1000 25 • 1 Seal washer
2040 0686 4202 03 • 1 Plug
GA160+ -10 CHN 380/50
GA200+ -10 CHN 10KV/50
IP23
GA200+ -10 CHN 380/50
GA200+ -10 CHN 3KV/50
IP23
GA200+ -10 CHN 6KV/50
IP23
GA250+ -10 CHN 10KV/50
IP23
GA250+ -10 CHN 380/50
GA250+ -10 CHN 3KV/50
IP23
Ref. Part number Qty Name Remarks
GA250+ -10 CHN 6KV/50
IP23
GA280 -10 CHN 10KV/50 IP23
GA280 -10 CHN 380/50
GA280 -10 CHN 3KV/50 IP23
GA280 -10 CHN 6KV/50 IP23

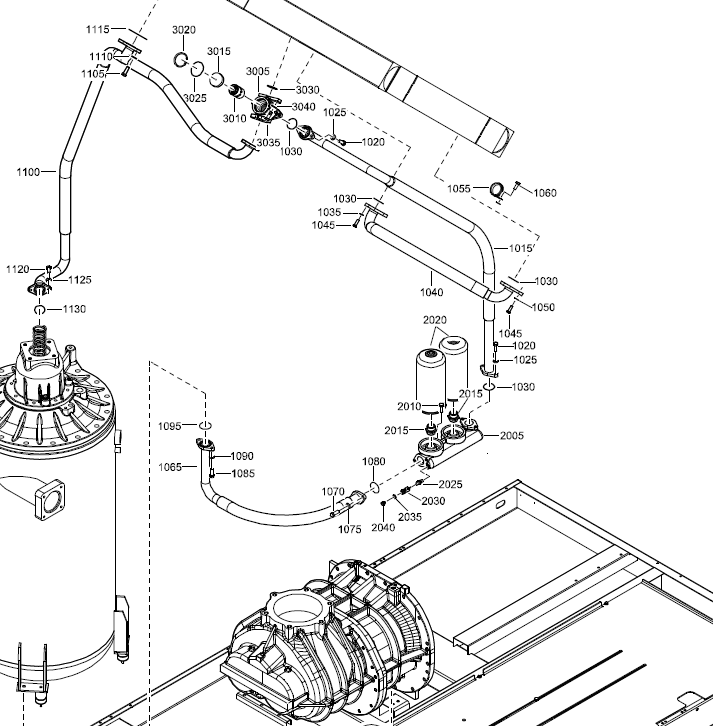

Regulation thermal valve
3005 1623 7565 00 • 1 Housing valve
3010 1623 9926 00 • 1 Thermostat
3015 1623 7816 00 • 1 Cover valve
3020 0335 2154 00 • 1 Circlip
3025 0663 2102 89 • 1 O-ring
3030 0663 2109 68 • 1 O-ring
3035 0147 1363 03 • 2 Hex. head screw
3040 0301 2344 00 • 2 Plain washer
GA200+ -14 CHN 10KV/50
IP23
GA200+ -14 CHN 380/50
GA200+ -14 CHN 3KV/50
IP23
GA200+ -14 CHN 6KV/50
IP23
GA250+ -14 CHN 10KV/50
IP23
GA250+ -14 CHN 380/50
GA250+ -14 CHN 3KV/50
IP23
GA250+ -14 CHN 6KV/50
IP23
GA280 -14 10KV 50HZ IP23
CHN
GA280 -14 3KV 50HZ IP23
CHN
GA280 -14 6KV 50HZ IP23
CHN
GA280 -14 CHN 380/50
Regulation thermal valve
3005 1623 7565 00 • 1 Housing valve
3010 1623 9997 00 • 1 Thermostat
3015 1623 7816 00 • 1 Cover valve
3020 0335 2154 00 • 1 Circlip
3025 0663 2102 89 • 1 O-ring
3030 0663 2109 68 • 1 O-ring
3035 0147 1363 03 • 2 Hex. head screw
3040 0301 2344 00 • 2 Plain washer
