1202 5869 03 THERMOSTATIC VALVE Atlas Copco

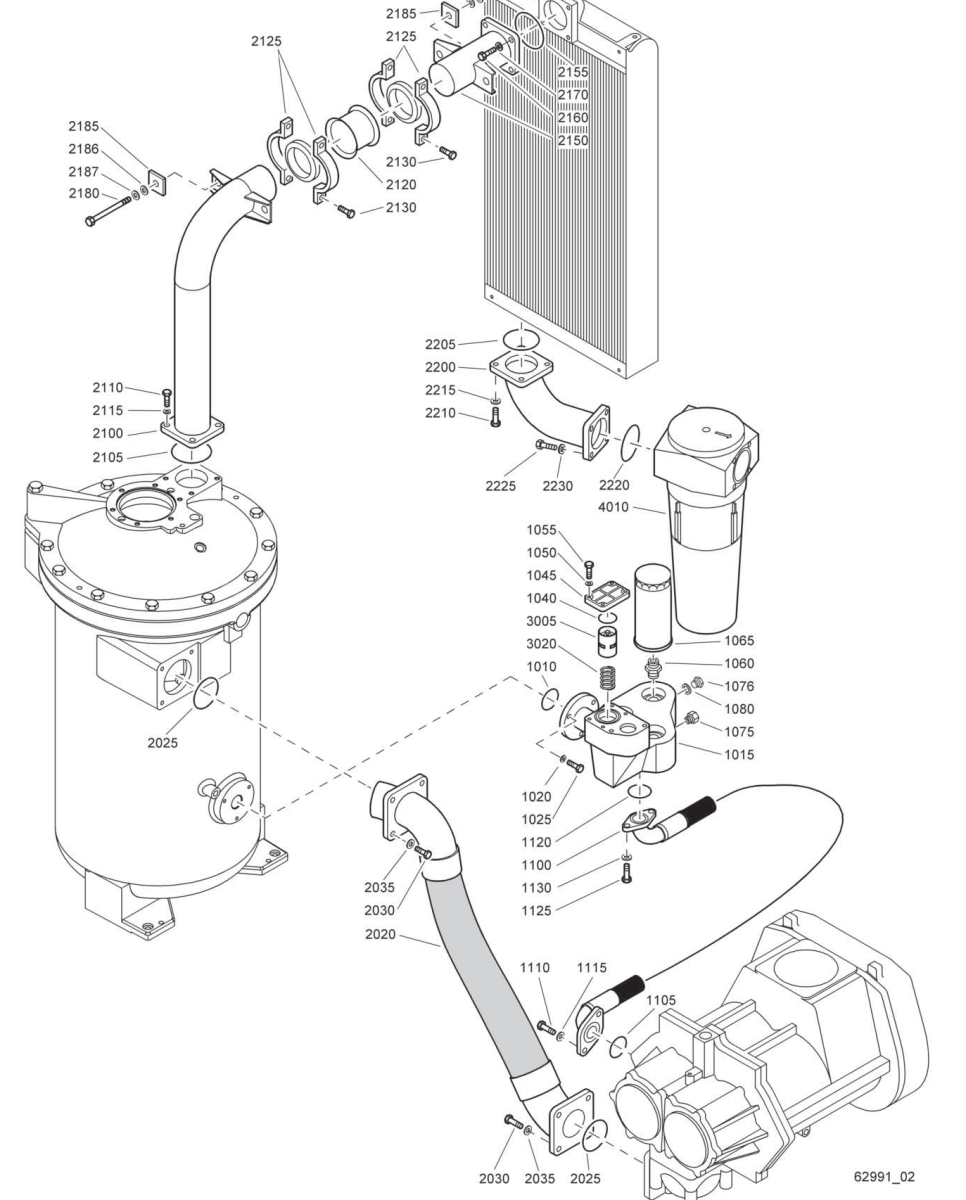

THERMOSTATIC VALVE 1202586903

1010 0663 2107 77 1 O-ring
1015 1614 9006 00 1 Oil filter housing
1020 0301 2344 00 3 Washer
1025 0147 1363 03 3 Bolt
1040 0663 2107 77 1 O-ring
1045 1614 9007 00 1 Cover
1050 0301 2335 00 4 Washer
1055 0147 1325 03 4 Bolt
1060 1619 3770 00 3 Nipple
1065 1613 6105 00 3 Oil filter
1075 1621 9349 00 1 Socket
1076 0686 3716 01 1 Plug
1080 0661 1000 25 1 Seal washer
1100 1614 9795 00 1 Hose assembly
1105 0663 2106 11 1 O-ring
1110 0147 1401 03 2 Bolt
1115 0301 2358 00 2 Washer
1120 0663 2109 68 1 O-ring
1125 0147 1362 03 2 Bolt
1130 0301 2344 00 2 Washer
2020 1614 9915 00 1 Hose assembly
2025 0663 2106 18 2 O-ring
2030 0147 1403 03 8 Bolt
2035 0301 2358 00 8 Washer
2100 1614 9488 00 1 Pipe
2105 0663 2106 17 1 O-ring
2110 0147 1364 03 4 Bolt
2115 0301 2344 00 4 Washer
2120 1614 9066 00 1 Pipe
2125 1614 9063 00 2 Joint set
1614 9064 00 • 1 Joint
2130 0147 1369 03 4 Bolt

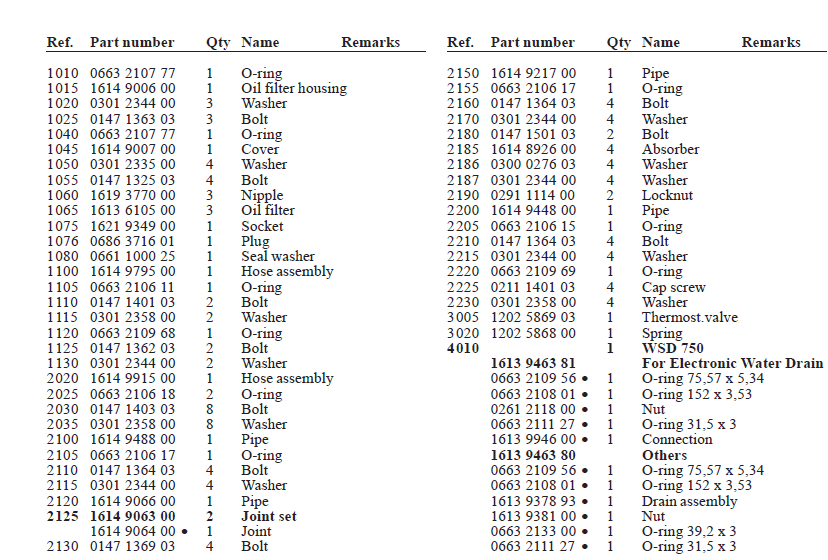

Ref. Part number Qty Name Remarks
2150 1614 9217 00 1 Pipe
2155 0663 2106 17 1 O-ring
2160 0147 1364 03 4 Bolt
2170 0301 2344 00 4 Washer
2180 0147 1501 03 2 Bolt
2185 1614 8926 00 4 Absorber
2186 0300 0276 03 4 Washer
2187 0301 2344 00 4 Washer
2190 0291 1114 00 2 Locknut
2200 1614 9448 00 1 Pipe
2205 0663 2106 15 1 O-ring
2210 0147 1364 03 4 Bolt
2215 0301 2344 00 4 Washer
2220 0663 2109 69 1 O-ring
2225 0211 1401 03 4 Cap screw
2230 0301 2358 00 4 Washer

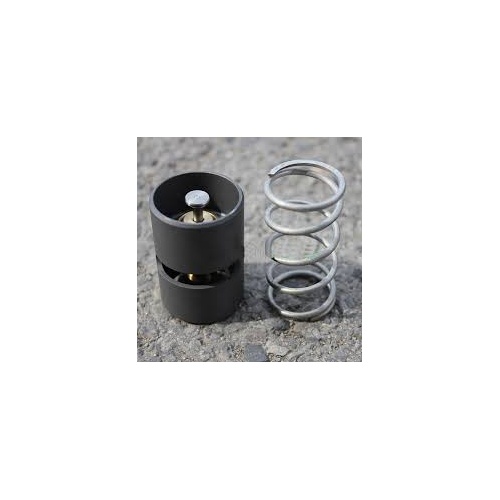

3005 1202 5869 03 1 Thermost.valve
3020 1202 5868 00 1 Spring
4010 1 WSD 750
1613 9463 81 For Electronic Water Drain
0663 2109 56 • 1 O-ring 75,57 x 5,34
0663 2108 01 • 1 O-ring 152 x 3,53
0261 2118 00 • 1 Nut
0663 2111 27 • 1 O-ring 31,5 x 3
1613 9946 00 • 1 Connection
1613 9463 80 Others
0663 2109 56 • 1 O-ring 75,57 x 5,34
0663 2108 01 • 1 O-ring 152 x 3,53
1613 9378 93 • 1 Drain assembly
1613 9381 00 • 1 Nut
0663 2133 00 • 1 O-ring 39,2 x 3
0663 2111 27 • 1 O-ring 31,5 x 3
