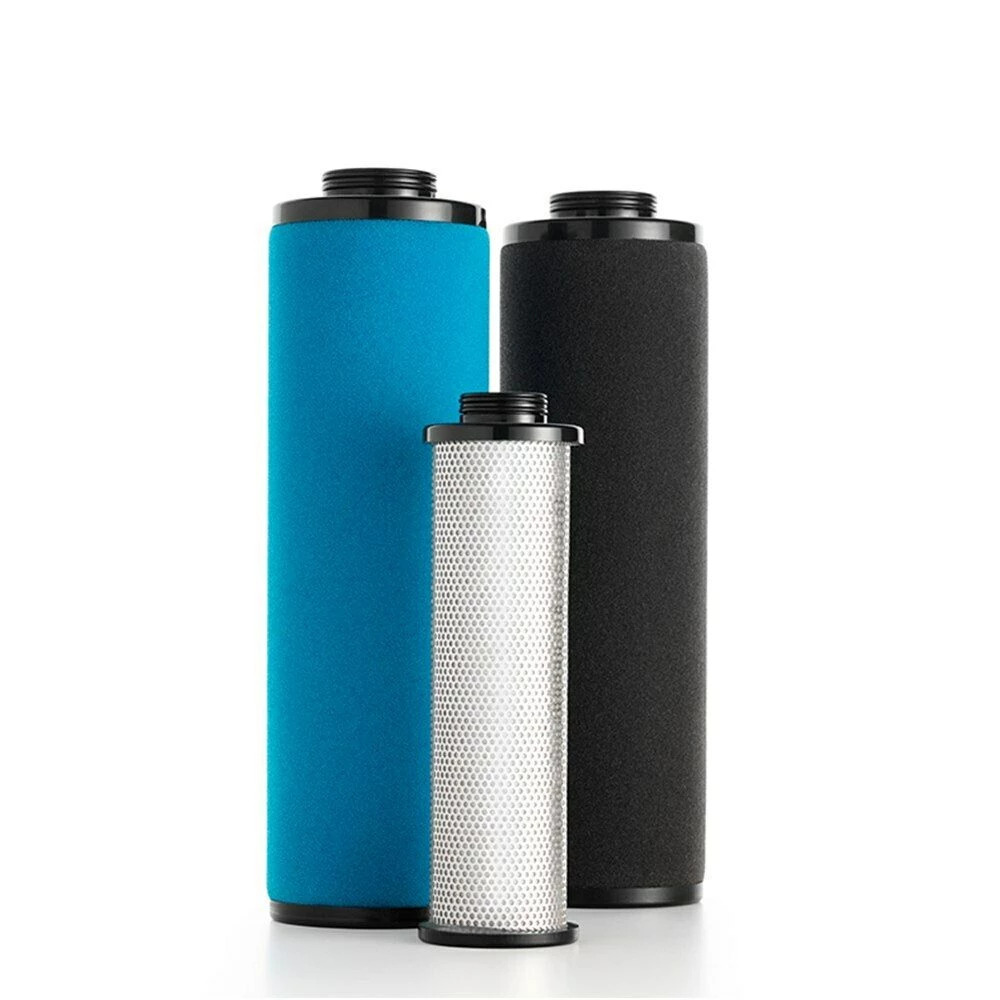

UD100+ 2901 2072 05 Atlas Copco Replacement Filter Kit
ACx55Q
Atlas Copco UD Filter Range 0.1 Micron DD>PD>QD. DD=DDp. PD=PDp.
The UD filter is a combined DD & PD
Another way of finding the right filter is to look at your application to determine the air purity it requires according to the international ISO 8573-1:2010 standard. The table below shows the various ISO 8573-1:2010 air purity classes and the Atlas Copco filters and dryer-combinations that meet these classes.
|
ISO 8573-1:2010 class
|
Solid particles |
Water
|
Oil
(aerosol, liquid, vapor) |
||
|---|---|---|---|---|---|
|
Wet conditions |
Dry conditions |
||||
|
|
As specified by the customer* |
Oil-free compressor |
|||
|
1 |
DD+ & PD+ |
DDp+ & PDp+ |
Desiccant dryer |
DD+ & PD+ |
& QD+/QDT |
|
UD+ |
UD+ |
& QD+/QDT |
|||
|
2 |
DD+ |
DDp+ |
Desiccant dryer, rotary drum dryer |
DD+ & PD+ |
|
|
UD+ |
|||||
|
3 |
DD+ |
DDp+ |
Desiccant dryer, membrane dryer, rotary drum dryer |
DD+ |
|
|
4 |
DD+ |
DDp+ |
Membrane dryer, refrigerant dryer |
DD+ |
|
|
5 |
DD+ |
DDp+ |
Membrane dryer, refrigerant dryer |
- |
|
|
6 |
- |
- |
Membrane dryer, refrigerant dryer |
- |
|
Examples of typical installations
|
A |
Compressor - UD+ |
Air purity class ISO 8573-1:2010 [1:-:2] |
|---|---|---|
|
B |
Compressor - UD+ - Refrigerant dryer |
Air purity class ISO 8573-1:2010 [1:4:2]* |
|
C |
Compressor - UD+ - Refrigerant dryer - QDT - DDp+ |
Air purity class ISO 8573-1:2010 [2:4:1] |
|
D |
Compressor - UD+ - Desiccant dryer - DDp+ |
Air purity class ISO 8573-1:2010 [2:2:2] |
|
E |
Compressor - UD+ - Desiccant dryer - QDT - DDp+ - PDp+ |
Air purity class ISO 8573-1:2010 [1:2:1] |
(UD100AC)
| SKU | UD100AC |
| Brand | Atlas Copco |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.200m |
| Shipping Length | 0.080m |
