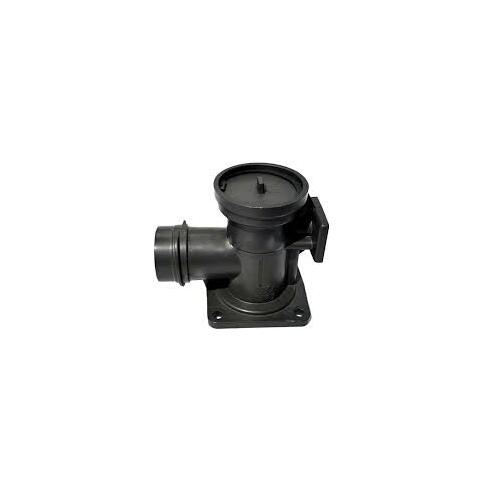

1622 1713 83 Unloader assembly UNLOADER C77-C80

UNLOADER C77-C80

Air system - Unloader assembly 5
1622 1713 83 1 Unloader assembly
1 005 • 1 Housing
1 010 1622 1717 00 • 1 Cover
1 015 0335 2164 00 • 1 Circlip
1 025 1622 1755 80 • 1 Valve ass‘y
1 035 1622 1773 10 • 1 Rod
1 040 0261 1099 40 • 1 Nut
1 045 1622 1789 00 • 1 Piston
1 050 1622 1790 00 • AR Guidance tape
1 055 1622 1797 05 • 1 Bushing
1 060 1622 1798 00 • 1 Quad-ring
1 065 0663 2104 98 • 1 O-ring
1 070 0160 0996 86 • 2 Screw
1 075 0301 2318 00 • 2 Washer
1 080 1622 3694 80 • 1 Blow off valve
1 081 0663 2111 55 • 1 O-ring
1 085 1622 2906 00 • 1 Bushing
1 090 1622 2905 00 • 1 Sealing
1 095 1622 2904 00 • 1 Spring
1 100 1622 2903 00 • 1 Spring guide
1 110 0661 1013 00 • 1 Washer
1 115 0686 3716 69 • 1 Plug
